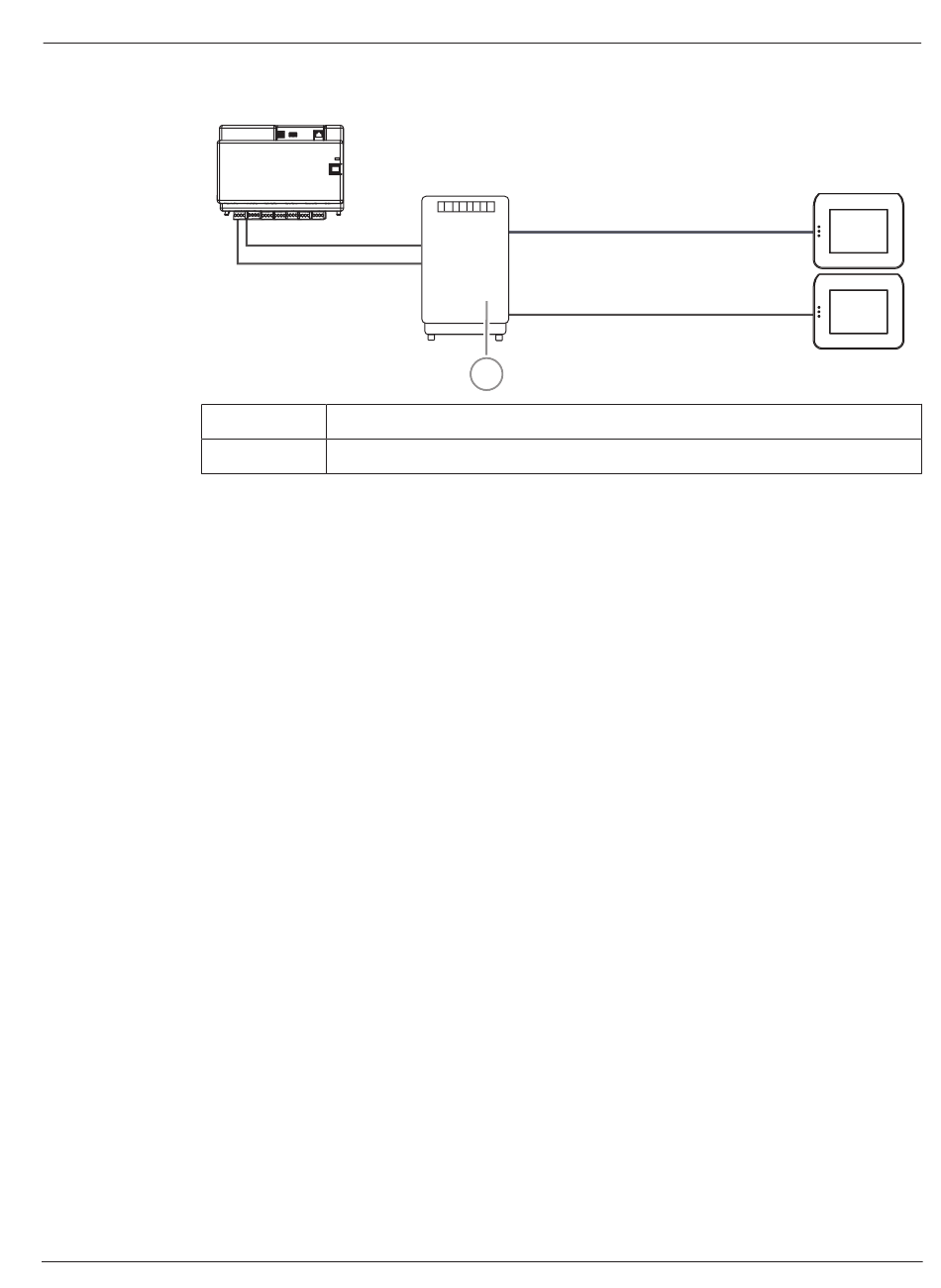

BDB/CAN splitter wiring without consideration of the power supply
Callout
1
Refer to
–
4.7
Connecting the touch keypad
The BDB supports up to 32 touch keypads. The power supply of remote touch keypads can
be ensured with the expansion enclosure (power supply application).
VdS programming instruction
4
Exception:
Mutually independent areas may be assigned to the touch keypad of the MAP5000 panel
area.
Bosch Security Systems B.V.
Description
ICP-MAP0012 BDB/CAN splitter
Planning the system with BDB/CAN splitter, page 13
Only assign one area (where applicable with overlapping dependent partition areas) to
a touch keypad.
1
Installation manual
Connections | en
Max. 500 m
Max. 500 m
2024-10 | V26 | F.01U.168.332
55
