56 en | Connections

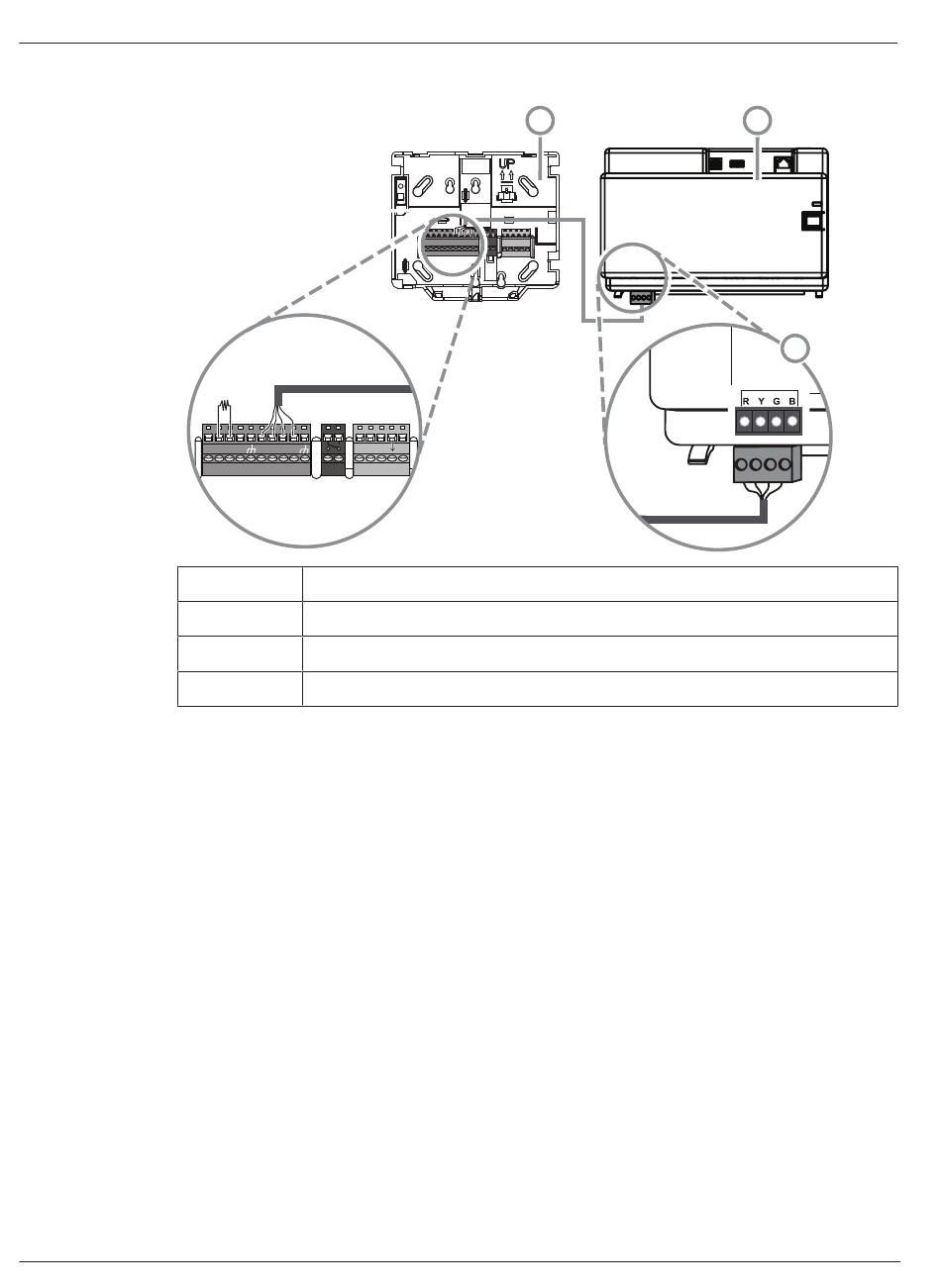

External BDB connection of the touch keypad
Callout
1
2
3
4.8

Installing the touch keypad

Mounting location
Mount the touch keypad onto the wall so that the user interface is at a comfortable level for
the end user. Typical installations of the touch keypad are at shoulder level, which is
approximately 150 to 160 cm (59 to 62 in) above the floor. It must be guaranteed by
corresponding positioning of the touch keypad or by organizational measures that only the
user has an optimum view of the touch keypad.
Mounting the touch keypad
1.
2.
3.
4.
5.
6.
7.
2024-10 | V26 | F.01U.168.332
120 Ω
R Y G B R Y G B 1
Description
MAP touch keypad
MAP5000 panel
External BDB
Unlock the touch keypad base and remove the cover.
Use the touch keypad base to mark the holes on the mounting surface.
Refer to External BDB connection of the touch keypad, page 56 for wiring instructions.
Replace the touch keypad cover on the base.
The cover automatically locks to the base.
Secure the cover using one screw M3 x 20 mm (F.01U.172.636).
The fed-in cable must be provided with strain relief.
The adhesive seal must be attached after completion of all work.
1
2
Installation manual
Modular Alarm Platform 5000
2
3
1 2 3 4
