Section 2: Installation
Wireless Transceiver Module
The HSM2HOSTx 2-way wireless integration module provides communication between wireless devices and the alarm con-
troller.
Note: The HSM2HOST must be mounted in the HSC3020CP plastic enclosure or in its own separate enclosure.
Connect the HSM2HOSTx to the 4-wire Corbus of the alarm controller according to the following diagram.

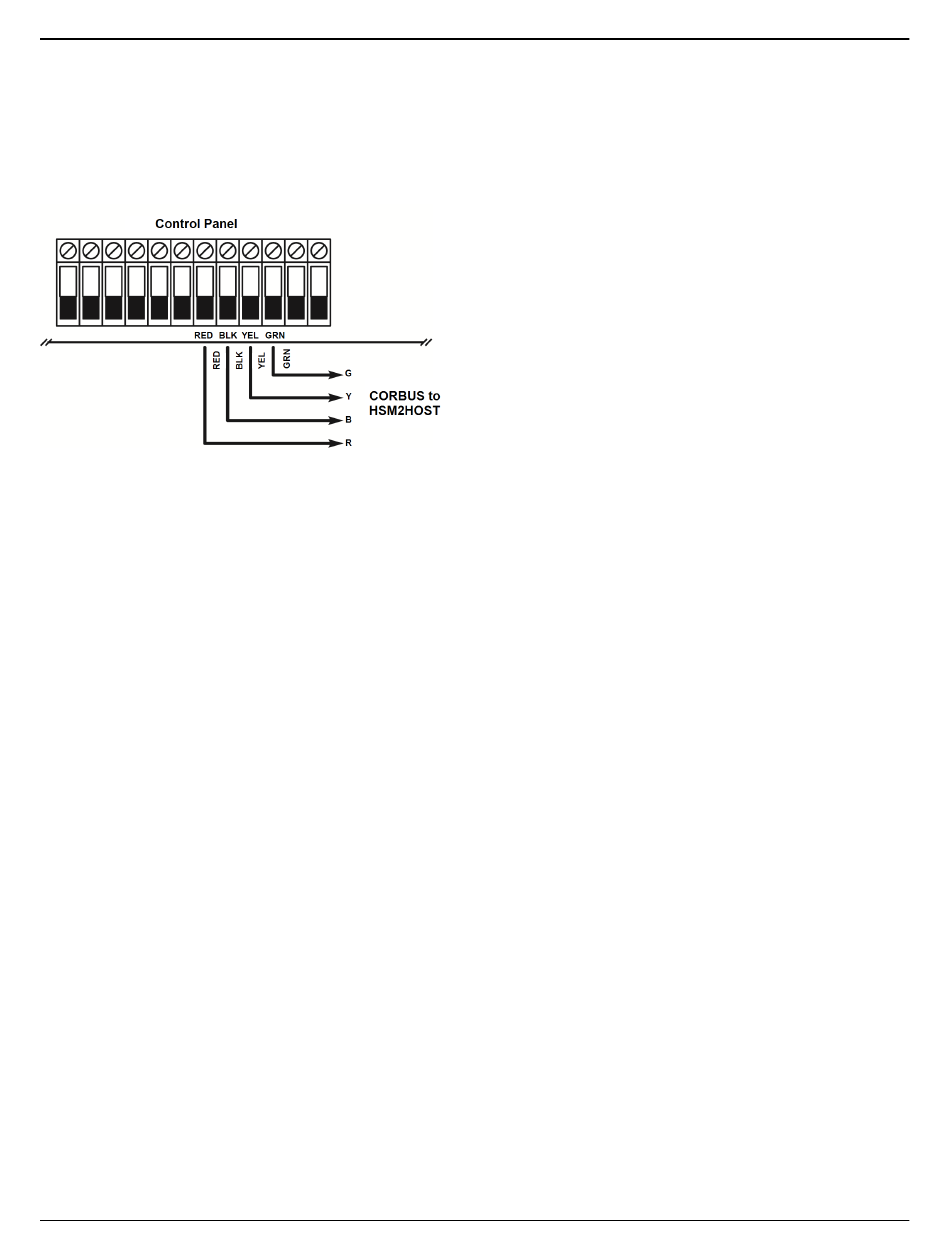

Figure 2-23 HSM2HOSTx Wiring Diagram
After you have completed the wiring, reconnect power to the security system. Board current draw: 35mA
