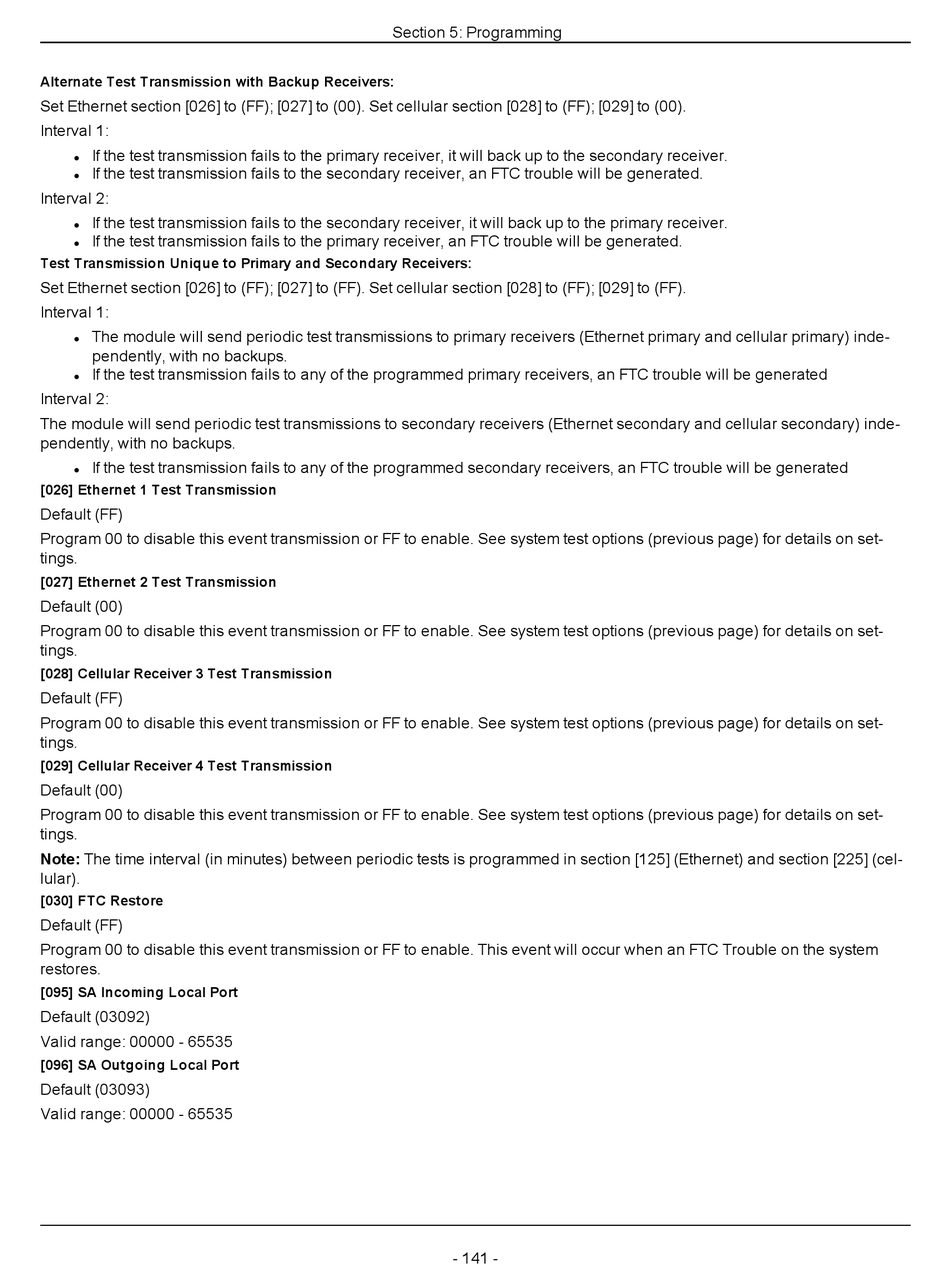

Alternate Test Transmission with Backup Receivers:
Set Ethernet section [026] to (FF); [027] to (00). Set cellular section [028] to (FF); [029] to (00).
Interval 1:
If the test transmission fails to the primary receiver, it will back up to the secondary receiver.
l
If the test transmission fails to the secondary receiver, an FTC trouble will be generated.
l
Interval 2:
If the test transmission fails to the secondary receiver, it will back up to the primary receiver.
l
If the test transmission fails to the primary receiver, an FTC trouble will be generated.
l
Test Transmission Unique to Primary and Secondary Receivers:
Set Ethernet section [026] to (FF); [027] to (FF). Set cellular section [028] to (FF); [029] to (FF).
Interval 1:
The module will send periodic test transmissions to primary receivers (Ethernet primary and cellular primary) inde-
l
pendently, with no backups.
If the test transmission fails to any of the programmed primary receivers, an FTC trouble will be generated
l
Interval 2:
The module will send periodic test transmissions to secondary receivers (Ethernet secondary and cellular secondary) inde-
pendently, with no backups.
If the test transmission fails to any of the programmed secondary receivers, an FTC trouble will be generated
l
[026] Ethernet 1 Test Transmission
Default (FF)
Program 00 to disable this event transmission or FF to enable. See system test options (previous page) for details on set-
tings.
[027] Ethernet 2 Test Transmission
Default (00)
Program 00 to disable this event transmission or FF to enable. See system test options (previous page) for details on set-
tings.
[028] Cellular Receiver 3 Test Transmission
Default (FF)
Program 00 to disable this event transmission or FF to enable. See system test options (previous page) for details on set-
tings.
[029] Cellular Receiver 4 Test Transmission
Default (00)
Program 00 to disable this event transmission or FF to enable. See system test options (previous page) for details on set-
tings.
Note: The time interval (in minutes) between periodic tests is programmed in section [125] (Ethernet) and section [225] (cel-
lular).
[030] FTC Restore
Default (FF)
Program 00 to disable this event transmission or FF to enable. This event will occur when an FTC Trouble on the system
restores.
[095] SA Incoming Local Port
Default (03092)
Valid range: 00000 - 65535
[096] SA Outgoing Local Port
Default (03093)
Valid range: 00000 - 65535
