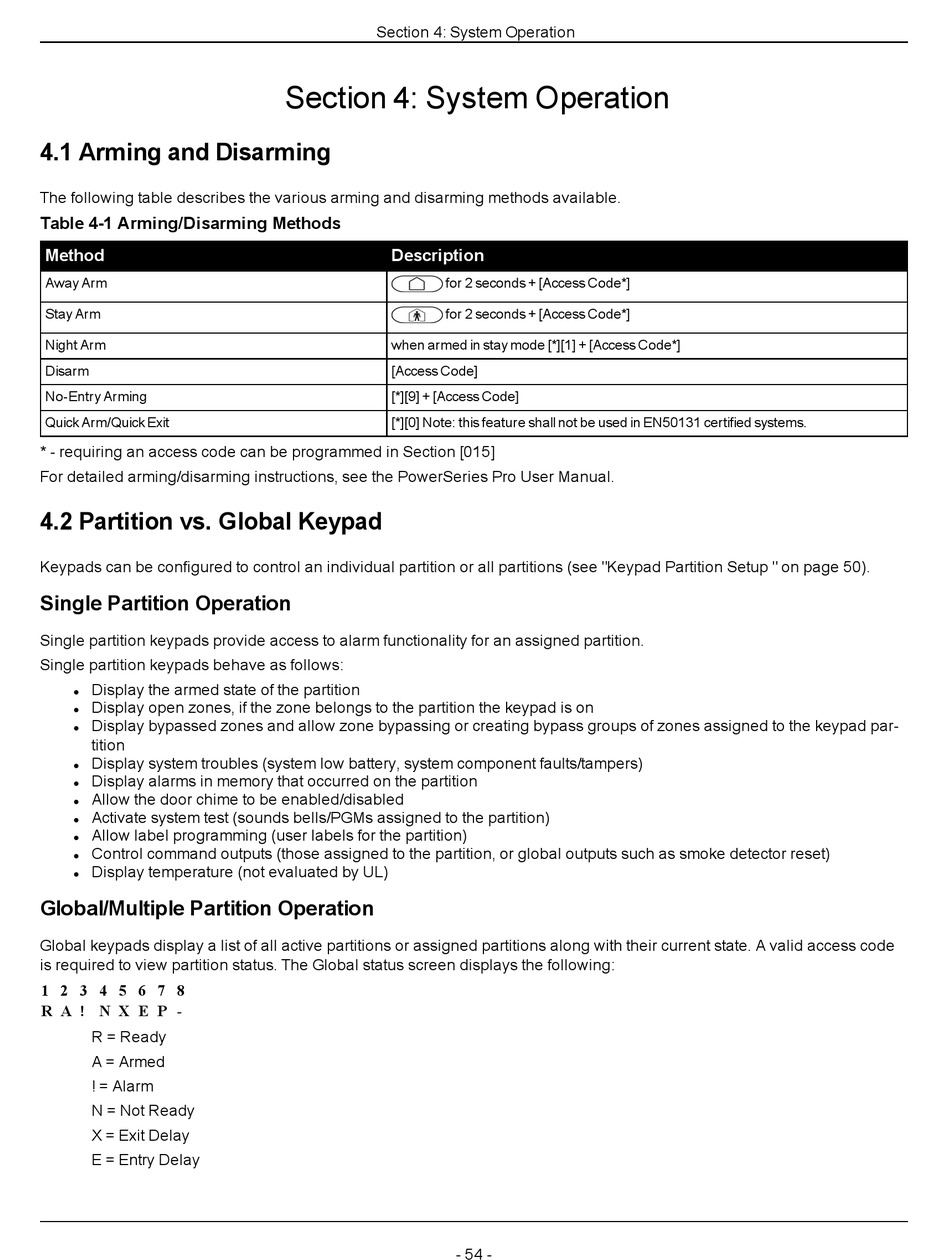

Section 4: System Operation; Arming And Disarming; Partition Vs. Global Keypad - Johnson Controls tyco Power Pro Series Reference Manual

4.1 Arming and Disarming

The following table describes the various arming and disarming methods available.
Table 4-1 Arming/Disarming Methods
Method
Away Arm
Stay Arm
Night Arm
Disarm
No-Entry Arming
Quick Arm/Quick Exit
* - requiring an access code can be programmed in Section [015]
For detailed arming/disarming instructions, see the PowerSeries Pro User Manual.

4.2 Partition vs. Global Keypad

Keypads can be configured to control an individual partition or all partitions (see "Keypad Partition Setup " on page 50).
Single Partition Operation
Single partition keypads provide access to alarm functionality for an assigned partition.
Single partition keypads behave as follows:
Display the armed state of the partition
l
Display open zones, if the zone belongs to the partition the keypad is on
l
Display bypassed zones and allow zone bypassing or creating bypass groups of zones assigned to the keypad par-
l
tition
Display system troubles (system low battery, system component faults/tampers)
l
Display alarms in memory that occurred on the partition
l
Allow the door chime to be enabled/disabled
l
Activate system test (sounds bells/PGMs assigned to the partition)
l
Allow label programming (user labels for the partition)
l
Control command outputs (those assigned to the partition, or global outputs such as smoke detector reset)
l
Display temperature (not evaluated by UL)
l
Global/Multiple Partition Operation
Global keypads display a list of all active partitions or assigned partitions along with their current state. A valid access code
is required to view partition status. The Global status screen displays the following:
1 2 3 4 5 6 7 8
R A ! N X E P -
R = Ready
A = Armed
! = Alarm
N = Not Ready
X = Exit Delay
E = Entry Delay

Section 4: System Operation

Section 4: System Operation
Description
for 2 seconds + [Access Code*]
for 2 seconds + [Access Code*]
when armed in stay mode [*][1] + [Access Code*]
[Access Code]
[*][9] + [Access Code]
[*][0] Note: this feature shall not be used in EN50131 certified systems.
