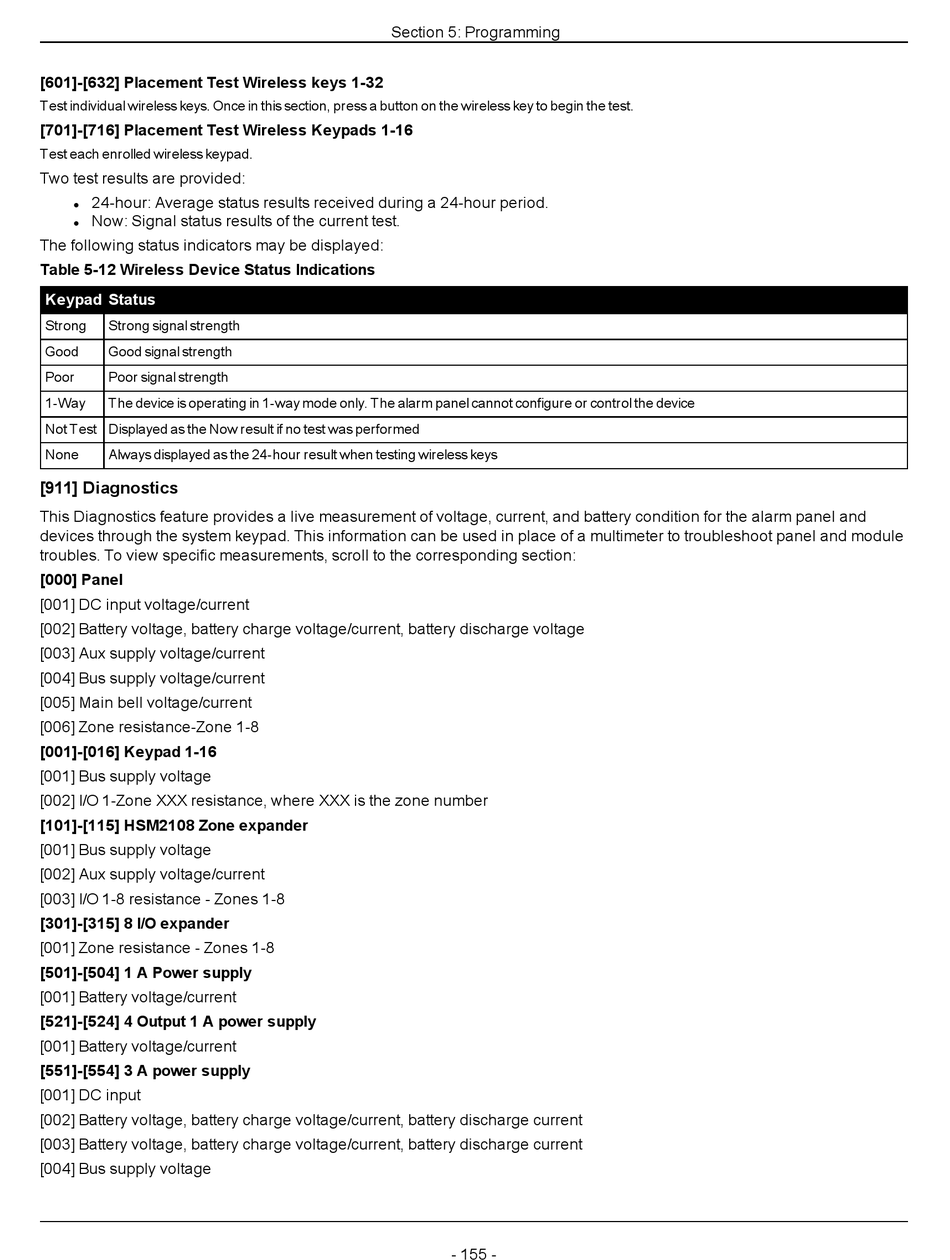

Johnson Controls tyco Power Pro Series Reference Manual page 155

[601]-[632] Placement Test Wireless keys 1-32
Test individual wireless keys. Once in this section, press a button on the wireless key to begin the test.
[701]-[716] Placement Test Wireless Keypads 1-16
Test each enrolled wireless keypad.
Two test results are provided:
24-hour: Average status results received during a 24-hour period.
l
Now: Signal status results of the current test.
l
The following status indicators may be displayed:
Table 5-12 Wireless Device Status Indications
Keypad Status
Strong Strong signal strength
Good Good signal strength
Poor Poor signal strength
1-Way The device is operating in 1-way mode only. The alarm panel cannot configure or control the device
Not Test Displayed as the Now result if no test was performed
None Always displayed as the 24-hour result when testing wireless keys
[911] Diagnostics
This Diagnostics feature provides a live measurement of voltage, current, and battery condition for the alarm panel and
devices through the system keypad. This information can be used in place of a multimeter to troubleshoot panel and module
troubles. To view specific measurements, scroll to the corresponding section:
[000] Panel
[001] DC input voltage/current
[002] Battery voltage, battery charge voltage/current, battery discharge voltage
[003] Aux supply voltage/current
[004] Bus supply voltage/current
[005] Main bell voltage/current
[006] Zone resistance-Zone 1-8
[001]-[016] Keypad 1-16
[001] Bus supply voltage
[002] I/O 1-Zone XXX resistance, where XXX is the zone number
[101]-[115] HSM2108 Zone expander
[001] Bus supply voltage
[002] Aux supply voltage/current
[003] I/O 1-8 resistance - Zones 1-8
[301]-[315] 8 I/O expander
[001] Zone resistance - Zones 1-8
[501]-[504] 1 A Power supply
[001] Battery voltage/current
[521]-[524] 4 Output 1 A power supply
[001] Battery voltage/current
[551]-[554] 3 A power supply
[001] DC input
[002] Battery voltage, battery charge voltage/current, battery discharge current
[003] Battery voltage, battery charge voltage/current, battery discharge current
[004] Bus supply voltage
