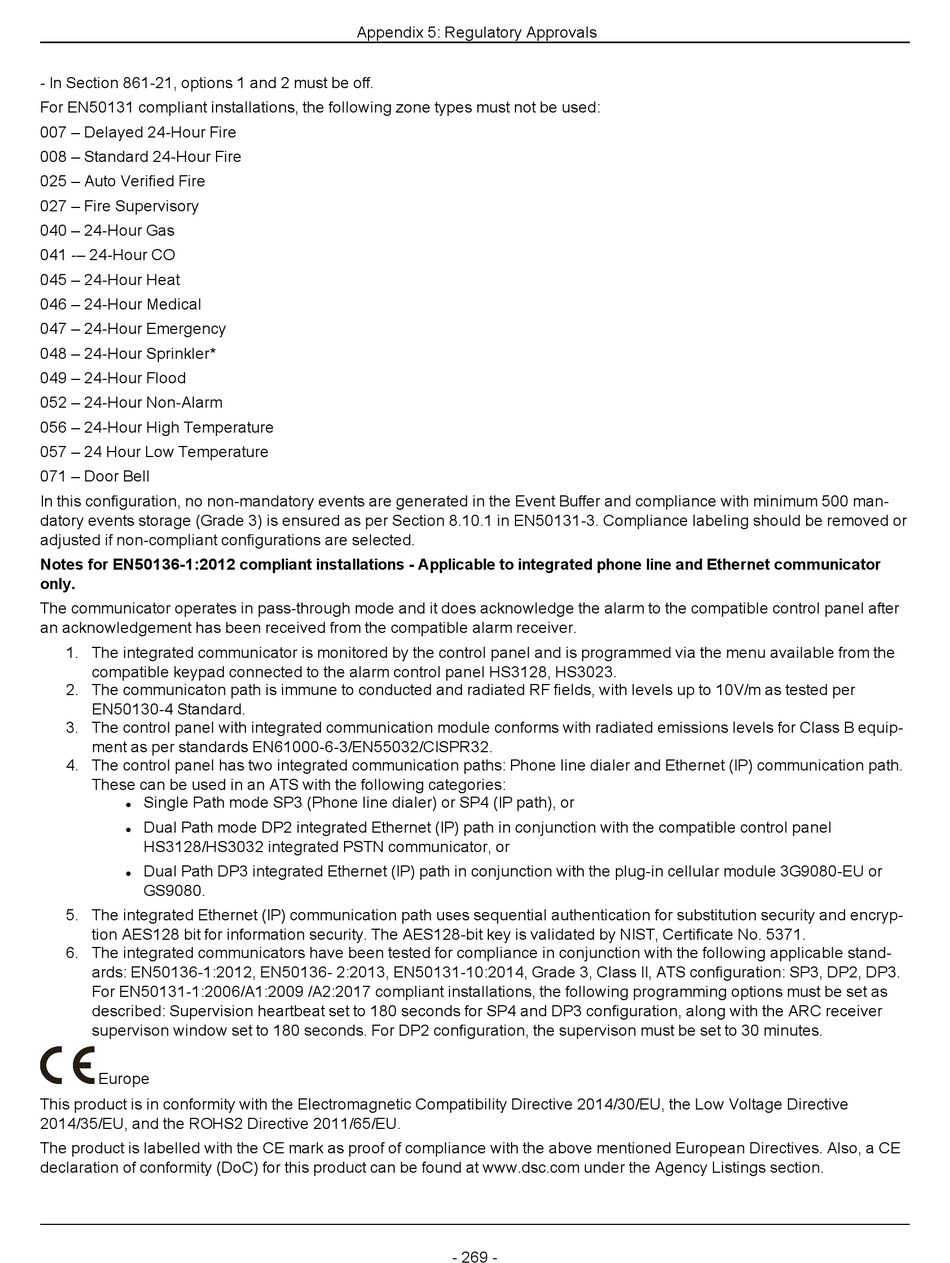

- In Section 861-21, options 1 and 2 must be off.
For EN50131 compliant installations, the following zone types must not be used:
007 – Delayed 24-Hour Fire
008 – Standard 24-Hour Fire
025 – Auto Verified Fire
027 – Fire Supervisory
040 – 24-Hour Gas
041 -– 24-Hour CO
045 – 24-Hour Heat
046 – 24-Hour Medical
047 – 24-Hour Emergency
048 – 24-Hour Sprinkler*
049 – 24-Hour Flood
052 – 24-Hour Non-Alarm
056 – 24-Hour High Temperature
057 – 24 Hour Low Temperature
071 – Door Bell
In this configuration, no non-mandatory events are generated in the Event Buffer and compliance with minimum 500 man-
datory events storage (Grade 3) is ensured as per Section 8.10.1 in EN50131-3. Compliance labeling should be removed or
adjusted if non-compliant configurations are selected.
Notes for EN50136-1:2012 compliant installations - Applicable to integrated phone line and Ethernet communicator
only.
The communicator operates in pass-through mode and it does acknowledge the alarm to the compatible control panel after
an acknowledgement has been received from the compatible alarm receiver.
1. The integrated communicator is monitored by the control panel and is programmed via the menu available from the
compatible keypad connected to the alarm control panel HS3128, HS3023.
2. The communicaton path is immune to conducted and radiated RF fields, with levels up to 10V/m as tested per
EN50130-4 Standard.
3. The control panel with integrated communication module conforms with radiated emissions levels for Class B equip-
ment as per standards EN61000-6-3/EN55032/CISPR32.
4. The control panel has two integrated communication paths: Phone line dialer and Ethernet (IP) communication path.
These can be used in an ATS with the following categories:
Single Path mode SP3 (Phone line dialer) or SP4 (IP path), or
l
Dual Path mode DP2 integrated Ethernet (IP) path in conjunction with the compatible control panel
l
HS3128/HS3032 integrated PSTN communicator, or
Dual Path DP3 integrated Ethernet (IP) path in conjunction with the plug-in cellular module 3G9080-EU or
l
GS9080.
5. The integrated Ethernet (IP) communication path uses sequential authentication for substitution security and encryp-
tion AES128 bit for information security. The AES128-bit key is validated by NIST, Certificate No. 5371.
6. The integrated communicators have been tested for compliance in conjunction with the following applicable stand-
ards: EN50136-1:2012, EN50136- 2:2013, EN50131-10:2014, Grade 3, Class II, ATS configuration: SP3, DP2, DP3.
For EN50131-1:2006/A1:2009 /A2:2017 compliant installations, the following programming options must be set as
described: Supervision heartbeat set to 180 seconds for SP4 and DP3 configuration, along with the ARC receiver
supervison window set to 180 seconds. For DP2 configuration, the supervison must be set to 30 minutes.
Europe
This product is in conformity with the Electromagnetic Compatibility Directive 2014/30/EU, the Low Voltage Directive
2014/35/EU, and the ROHS2 Directive 2011/65/EU.
The product is labelled with the CE mark as proof of compliance with the above mentioned European Directives. Also, a CE
declaration of conformity (DoC) for this product can be found at www.dsc.com under the Agency Listings section.
Appendix 5: Regulatory Approvals
