Section 2: Installation

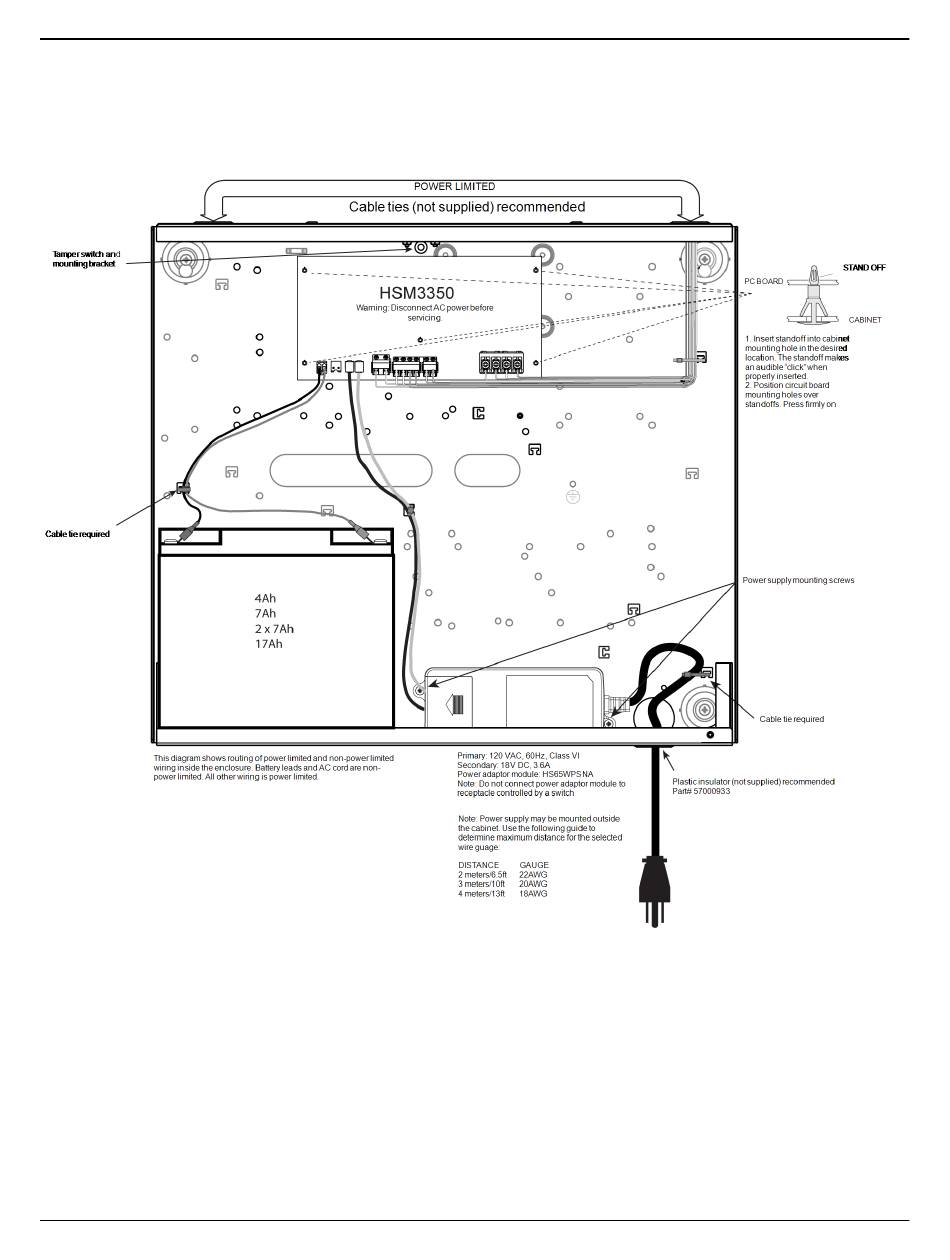

North American Wiring for HSM3350 in HSC3020 Enclosure
This diagram shows routing of power limited and non-power limited wiring inside the enclosure. Battery leads and AC cord
are non-power limited. All other wiring is power limited.
Figure 2-13 North American Wiring for HSM3350 in HSC3020 Enclosure
- 23 -
