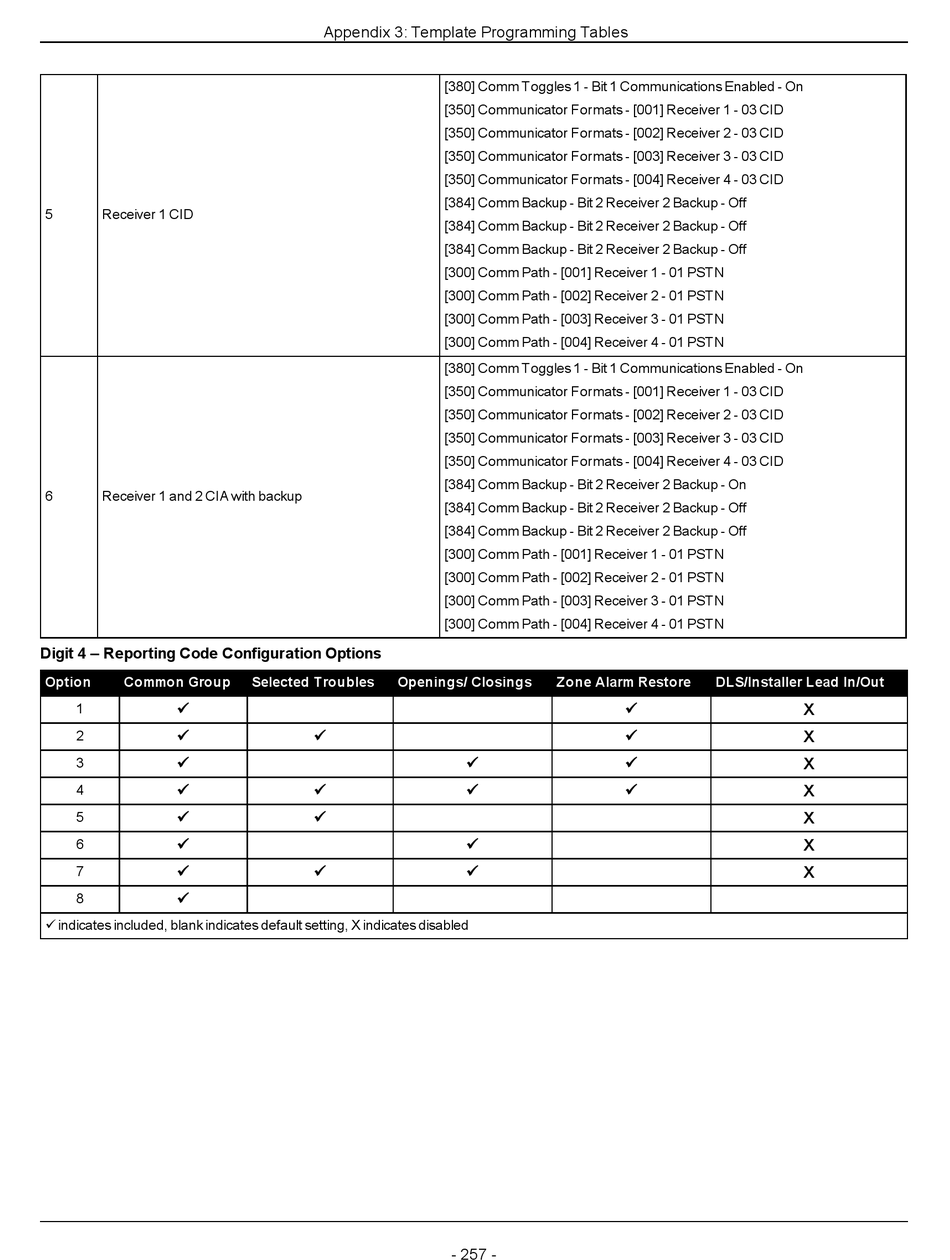

Johnson Controls tyco Power Pro Series Reference Manual page 257

5 Receiver 1 CID
6 Receiver 1 and 2 CIA with backup
Digit 4 – Reporting Code Configuration Options
Option Common Group
ü
1
ü
2
ü
3
ü
4
ü
5
ü
6
ü
7
ü
8
ü indicates included, blank indicates default setting, X indicates disabled
Appendix 3: Template Programming Tables
Selected Troubles Openings/ Closings
ü
ü
ü
ü
[380] Comm Toggles 1 - Bit 1 Communications Enabled - On
[350] Communicator Formats - [001] Receiver 1 - 03 CID
[350] Communicator Formats - [002] Receiver 2 - 03 CID
[350] Communicator Formats - [003] Receiver 3 - 03 CID
[350] Communicator Formats - [004] Receiver 4 - 03 CID
[384] Comm Backup - Bit 2 Receiver 2 Backup - Off
[384] Comm Backup - Bit 2 Receiver 2 Backup - Off
[384] Comm Backup - Bit 2 Receiver 2 Backup - Off
[300] Comm Path - [001] Receiver 1 - 01 PSTN
[300] Comm Path - [002] Receiver 2 - 01 PSTN
[300] Comm Path - [003] Receiver 3 - 01 PSTN
[300] Comm Path - [004] Receiver 4 - 01 PSTN
[380] Comm Toggles 1 - Bit 1 Communications Enabled - On
[350] Communicator Formats - [001] Receiver 1 - 03 CID
[350] Communicator Formats - [002] Receiver 2 - 03 CID
[350] Communicator Formats - [003] Receiver 3 - 03 CID
[350] Communicator Formats - [004] Receiver 4 - 03 CID
[384] Comm Backup - Bit 2 Receiver 2 Backup - On
[384] Comm Backup - Bit 2 Receiver 2 Backup - Off
[384] Comm Backup - Bit 2 Receiver 2 Backup - Off
[300] Comm Path - [001] Receiver 1 - 01 PSTN
[300] Comm Path - [002] Receiver 2 - 01 PSTN
[300] Comm Path - [003] Receiver 3 - 01 PSTN
[300] Comm Path - [004] Receiver 4 - 01 PSTN
Zone Alarm Restore
ü
ü
ü
ü
- 257 -
DLS/Installer Lead In/Out
ü
X
ü
X
ü
X
ü
X
X
X
X
