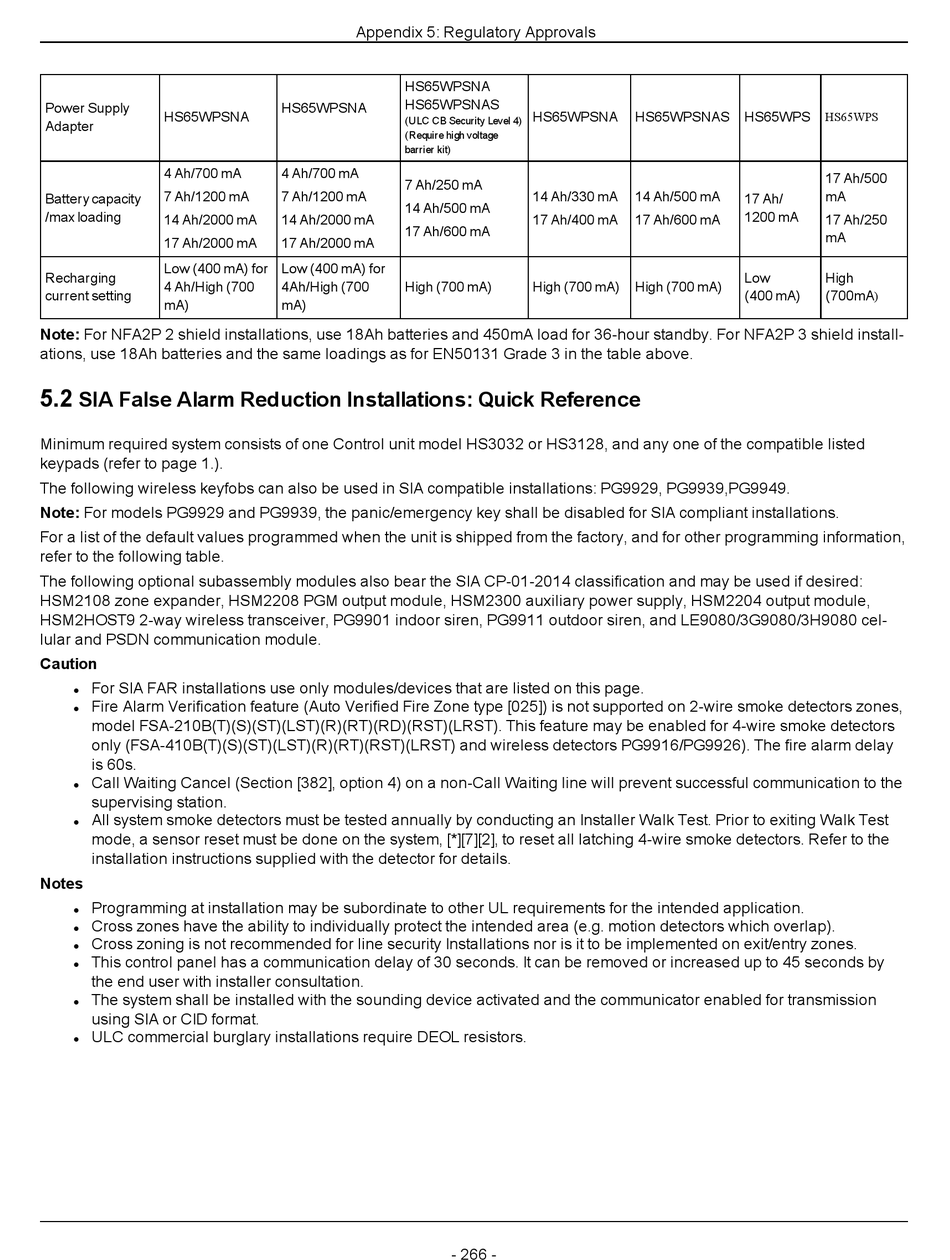

Power Supply
HS65WPSNA
Adapter
4 Ah/700 mA
7 Ah/1200 mA
Battery capacity
/max loading
14 Ah/2000 mA
17 Ah/2000 mA
Low (400 mA) for
Recharging
4 Ah/High (700
current setting
mA)
Note: For NFA2P 2 shield installations, use 18Ah batteries and 450mA load for 36-hour standby. For NFA2P 3 shield install-
ations, use 18Ah batteries and the same loadings as for EN50131 Grade 3 in the table above.
5.2
SIA False Alarm Reduction Installations: Quick Reference
Minimum required system consists of one Control unit model HS3032 or HS3128, and any one of the compatible listed
keypads (refer to page 1.).
The following wireless keyfobs can also be used in SIA compatible installations: PG9929, PG9939,PG9949.
Note: For models PG9929 and PG9939, the panic/emergency key shall be disabled for SIA compliant installations.
For a list of the default values programmed when the unit is shipped from the factory, and for other programming information,
refer to the following table.
The following optional subassembly modules also bear the SIA CP-01-2014 classification and may be used if desired:
HSM2108 zone expander, HSM2208 PGM output module, HSM2300 auxiliary power supply, HSM2204 output module,
HSM2HOST9 2-way wireless transceiver, PG9901 indoor siren, PG9911 outdoor siren, and LE9080/3G9080/3H9080 cel-
lular and PSDN communication module.
Caution
For SIA FAR installations use only modules/devices that are listed on this page.
l
Fire Alarm Verification feature (Auto Verified Fire Zone type [025]) is not supported on 2-wire smoke detectors zones,
l
model FSA-210B(T)(S)(ST)(LST)(R)(RT)(RD)(RST)(LRST). This feature may be enabled for 4-wire smoke detectors
only (FSA-410B(T)(S)(ST)(LST)(R)(RT)(RST)(LRST) and wireless detectors PG9916/PG9926). The fire alarm delay
is 60s.
Call Waiting Cancel (Section [382], option 4) on a non-Call Waiting line will prevent successful communication to the
l
supervising station.
All system smoke detectors must be tested annually by conducting an Installer Walk Test. Prior to exiting Walk Test
l
mode, a sensor reset must be done on the system, [*][7][2], to reset all latching 4-wire smoke detectors. Refer to the
installation instructions supplied with the detector for details.
Notes
Programming at installation may be subordinate to other UL requirements for the intended application.
l
Cross zones have the ability to individually protect the intended area (e.g. motion detectors which overlap).
l
Cross zoning is not recommended for line security Installations nor is it to be implemented on exit/entry zones.
l
This control panel has a communication delay of 30 seconds. It can be removed or increased up to 45 seconds by
l
the end user with installer consultation.
The system shall be installed with the sounding device activated and the communicator enabled for transmission
l
using SIA or CID format.
ULC commercial burglary installations require DEOL resistors.
l
Appendix 5: Regulatory Approvals
HS65WPSNA
HS65WPSNAS
HS65WPSNA
(ULC CB Security Level 4)
(Require high voltage
barrier kit)
4 Ah/700 mA
7 Ah/250 mA
7 Ah/1200 mA
14 Ah/500 mA
14 Ah/2000 mA
17 Ah/600 mA
17 Ah/2000 mA
Low (400 mA) for
4Ah/High (700 High (700 mA)
mA)
- 266 -
HS65WPSNA HS65WPSNAS
14 Ah/330 mA 14 Ah/500 mA
17 Ah/400 mA 17 Ah/600 mA
High (700 mA) High (700 mA)
HS65WPS
HS65WPS
17 Ah/500
mA
17 Ah/
1200 mA
17 Ah/250
mA
Low High
(400 mA) (700mA
)
