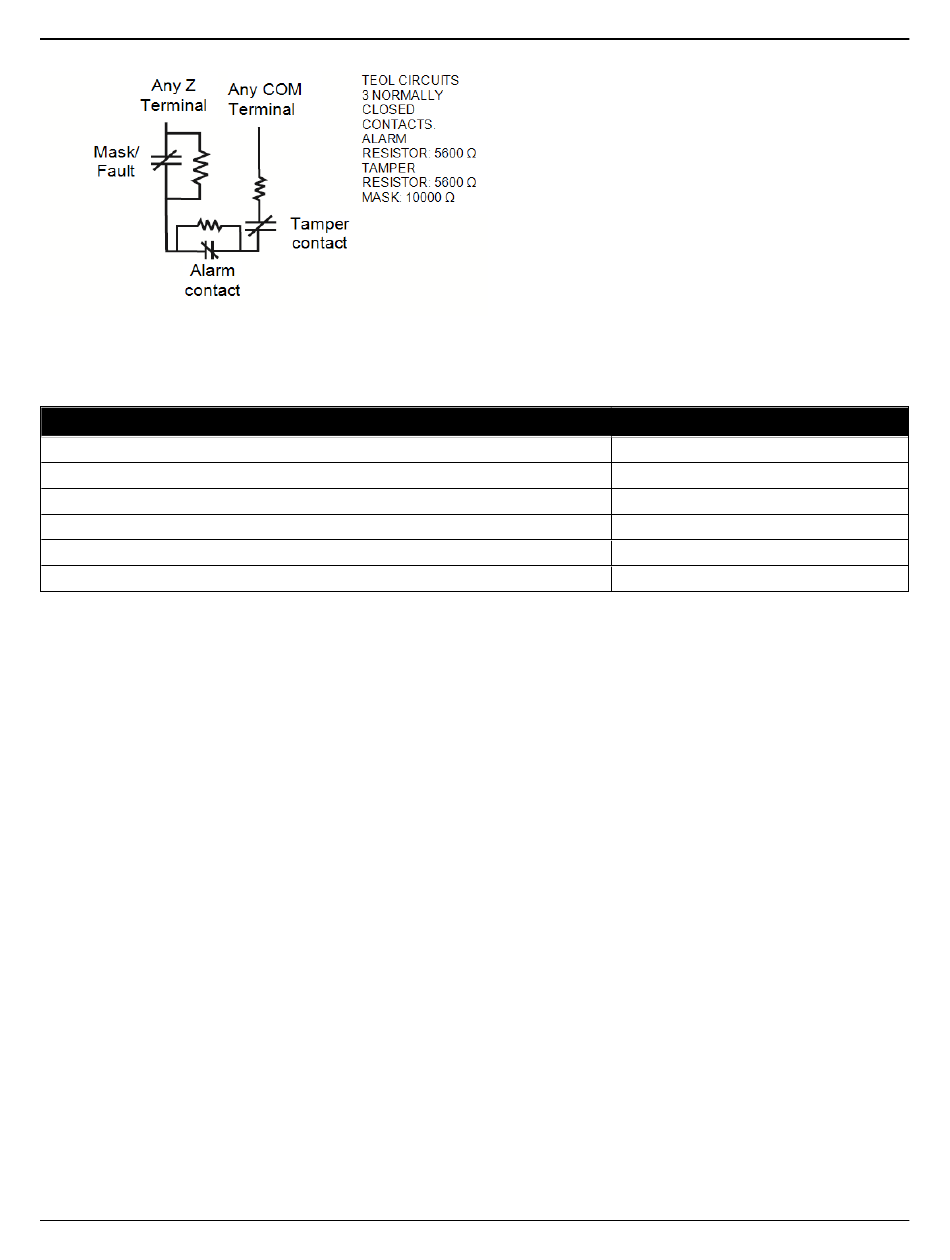

Figure 2-31 TEOL Wiring
The following table shows zone status under certain conditions for TEOL:
Table 2-8 TEOL Loop Status
Loop Resistance
0 Ω (short)
Infinite Ω (open)
5600 Ω
11200 Ω
21200 Ω (alarm and fault/mask)
15600 Ω (fault/mask)
PGM Wiring
Min/max operating voltages for devices, sensors and modules is
10.8 V DC - 12.5 V DC. -15% to +10%.
PGMs switch to ground when activated from the alarm controller. Connect the positive side of the device to the AUX+ ter-
minal and the negative side to a PGM terminal.
PGM 1, and 4 supply up to 100 mA; PGM 2 and 3 supply up to 300 mA.
A relay is required for current levels that exceed the maximum limits.
PGM2 can also be used for two-wire smoke detectors or 24-hour burglary input alarm.
Note: Use only SEOL resistors on Fire zones.
Section 2: Installation
- 40 -
Loop Status
Fault
Tamper
Restored
Alarm
Mask
Fault
