Section 2: Installation
Installing the HSM3350 in an HSC3010C Enclosure

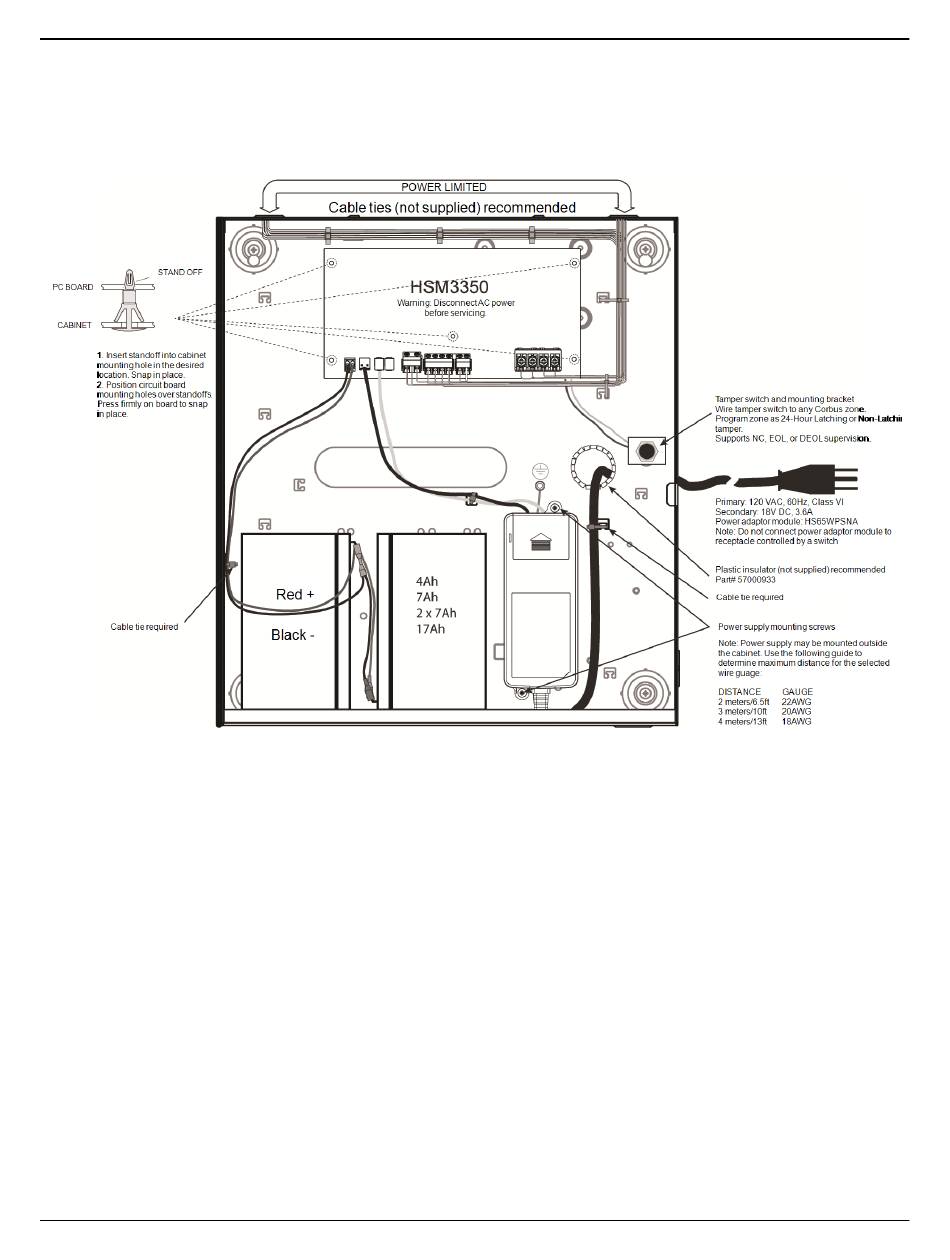

The following diagram indicates the routing of power limited and non-power limited wiring inside the enclosure. Battery
leads and AC cord are non-power limited. All other wiring is power limited.
Figure 2-12 HSM3350 in HSC3010C Enclosure
