Section 2: Installation

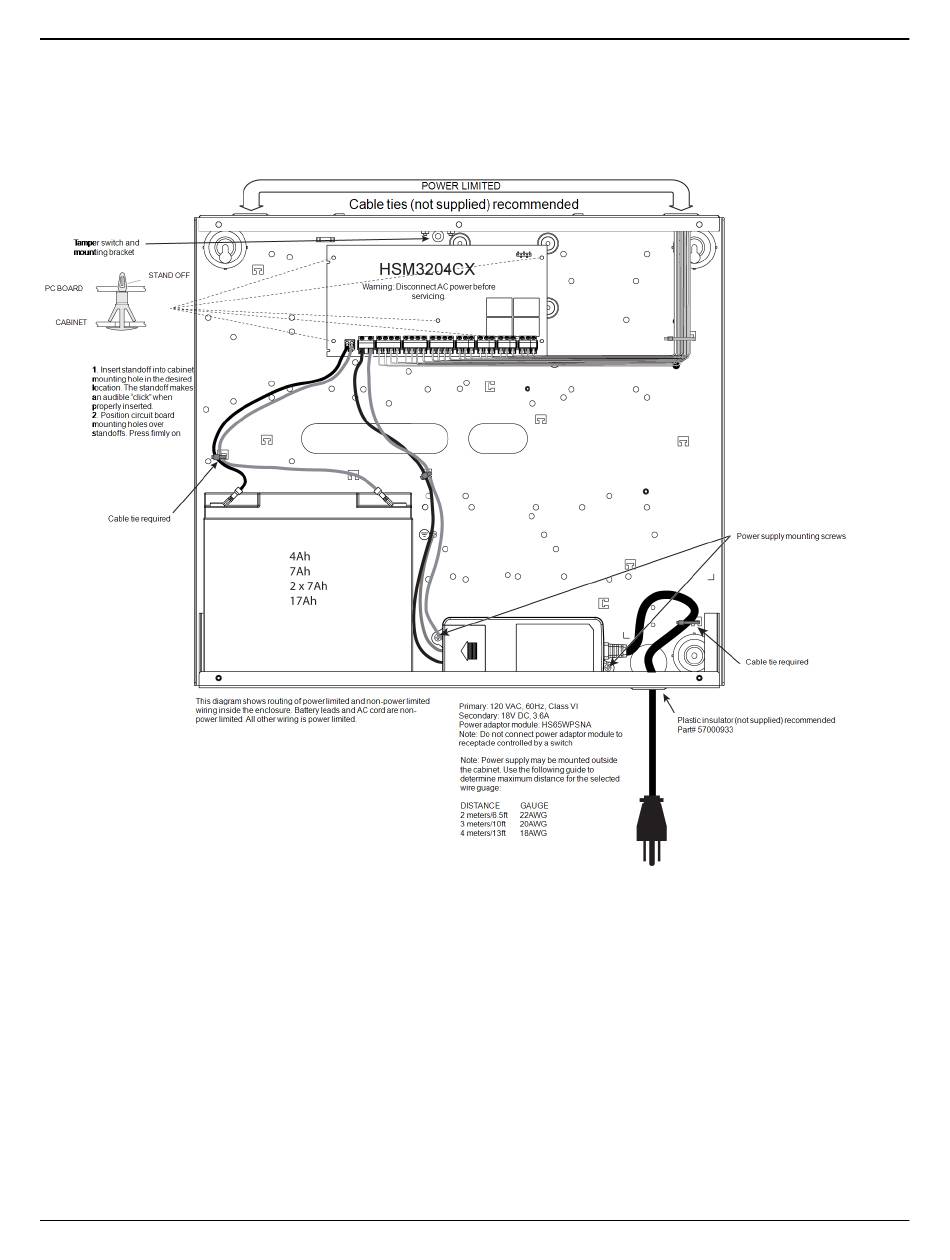

HSM3204CX in HSC3020 North American Wiring Diagram
This diagram shows routing of power limited and non-power limited wiring inside the enclosure. Battery leads and AC cord
are non-power limited. All other wiring is power limited.
Figure 2-11 North American Wiring for HSM3204CX in HSC3020 Enclosure
- 21 -
