5. Disposal of used batteries shall be made according to the waste recovery and recycling regulations applicable to the
intended market
6. Before servicing, DISCONNECT the TELEPHONE CONNECTION.
7. Two batteries may be used to provide the required backup time.
WARNING:
High Voltage: Disconnect AC Power and telephone lines before servicing.
The following modules are optional:
One slot for a HSM3350 with 2x 17Ah battery and internally mounted HS65WPS power supply
l
Two slots for HSM3408, HSM2955, HSM3204CX
l
HSC3020CP Wiring

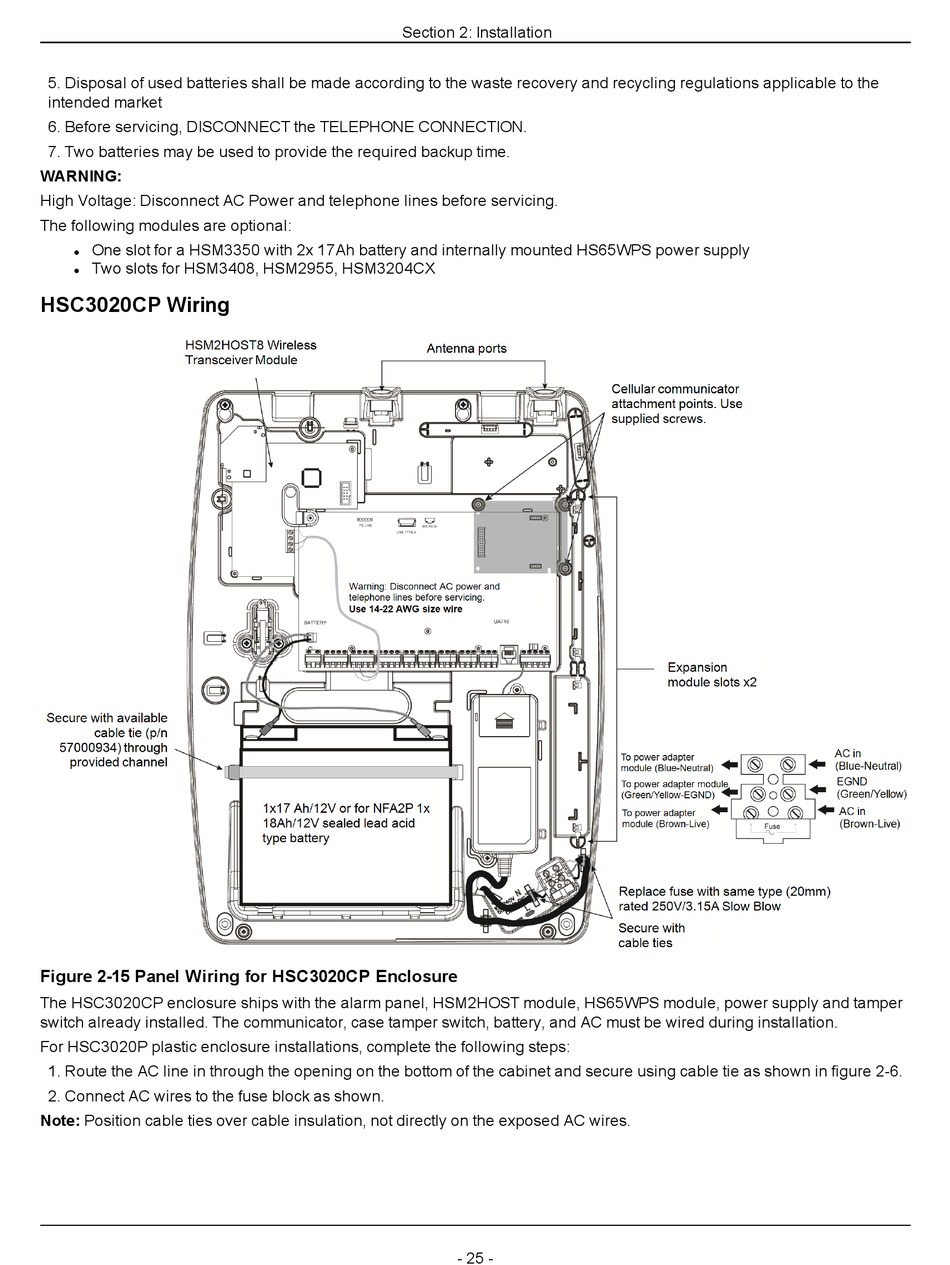

Figure 2-15 Panel Wiring for HSC3020CP Enclosure
The HSC3020CP enclosure ships with the alarm panel, HSM2HOST module, HS65WPS module, power supply and tamper
switch already installed. The communicator, case tamper switch, battery, and AC must be wired during installation.
For HSC3020P plastic enclosure installations, complete the following steps:
1. Route the AC line in through the opening on the bottom of the cabinet and secure using cable tie as shown in figure 2-6.
2. Connect AC wires to the fuse block as shown.
Note: Position cable ties over cable insulation, not directly on the exposed AC wires.
