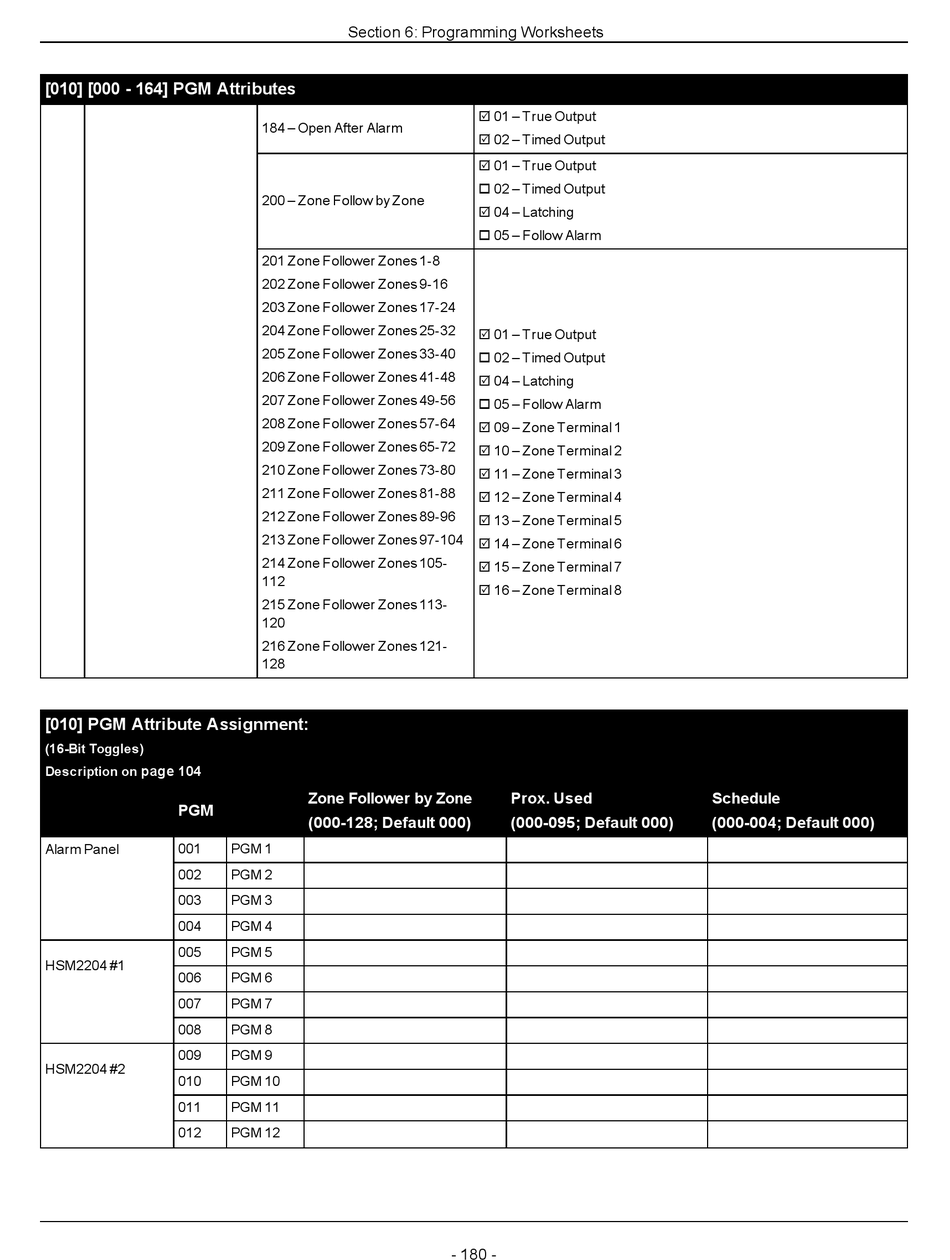

[010] [000 - 164] PGM Attributes
[010] PGM Attribute Assignment:
(16-Bit Toggles)
page 104
Description on
PGM
Alarm Panel 001
002
003
004
005
HSM2204 #1
006
007
008
009
HSM2204 #2
010
011
012
Section 6: Programming Worksheets
184 – Open After Alarm
200 – Zone Follow by Zone
201 Zone Follower Zones 1-8
202 Zone Follower Zones 9-16
203 Zone Follower Zones 17-24
204 Zone Follower Zones 25-32
205 Zone Follower Zones 33-40
206 Zone Follower Zones 41-48
207 Zone Follower Zones 49-56
208 Zone Follower Zones 57-64
209 Zone Follower Zones 65-72
210 Zone Follower Zones 73-80
211 Zone Follower Zones 81-88
212 Zone Follower Zones 89-96
213 Zone Follower Zones 97-104
214 Zone Follower Zones 105-
112
215 Zone Follower Zones 113-
120
216 Zone Follower Zones 121-
128
Zone Follower by Zone
(000-128; Default 000)
PGM 1
PGM 2
PGM 3
PGM 4
PGM 5
PGM 6
PGM 7
PGM 8
PGM 9
PGM 10
PGM 11
PGM 12
R 01 – True Output
R 02 – Timed Output
R 01 – True Output
o 02 – Timed Output
R 04 – Latching
o 05 – Follow Alarm
R 01 – True Output
o 02 – Timed Output
R 04 – Latching
o 05 – Follow Alarm
R 09 – Zone Terminal 1
R 10 – Zone Terminal 2
R 11 – Zone Terminal 3
R 12 – Zone Terminal 4
R 13 – Zone Terminal 5
R 14 – Zone Terminal 6
R 15 – Zone Terminal 7
R 16 – Zone Terminal 8
Prox. Used
(000-095; Default 000)
- 180 -
Schedule
(000-004; Default 000)
