HSM2108/HSM2208 Mounting Locations in HSC3010 Enclosure
The following diagram indicates all available mounting locations of the HSM2108/HSM2208 inside HSC3010C/
HSC3010CR/ HSC3030CAR and HSC3020 enclosures.

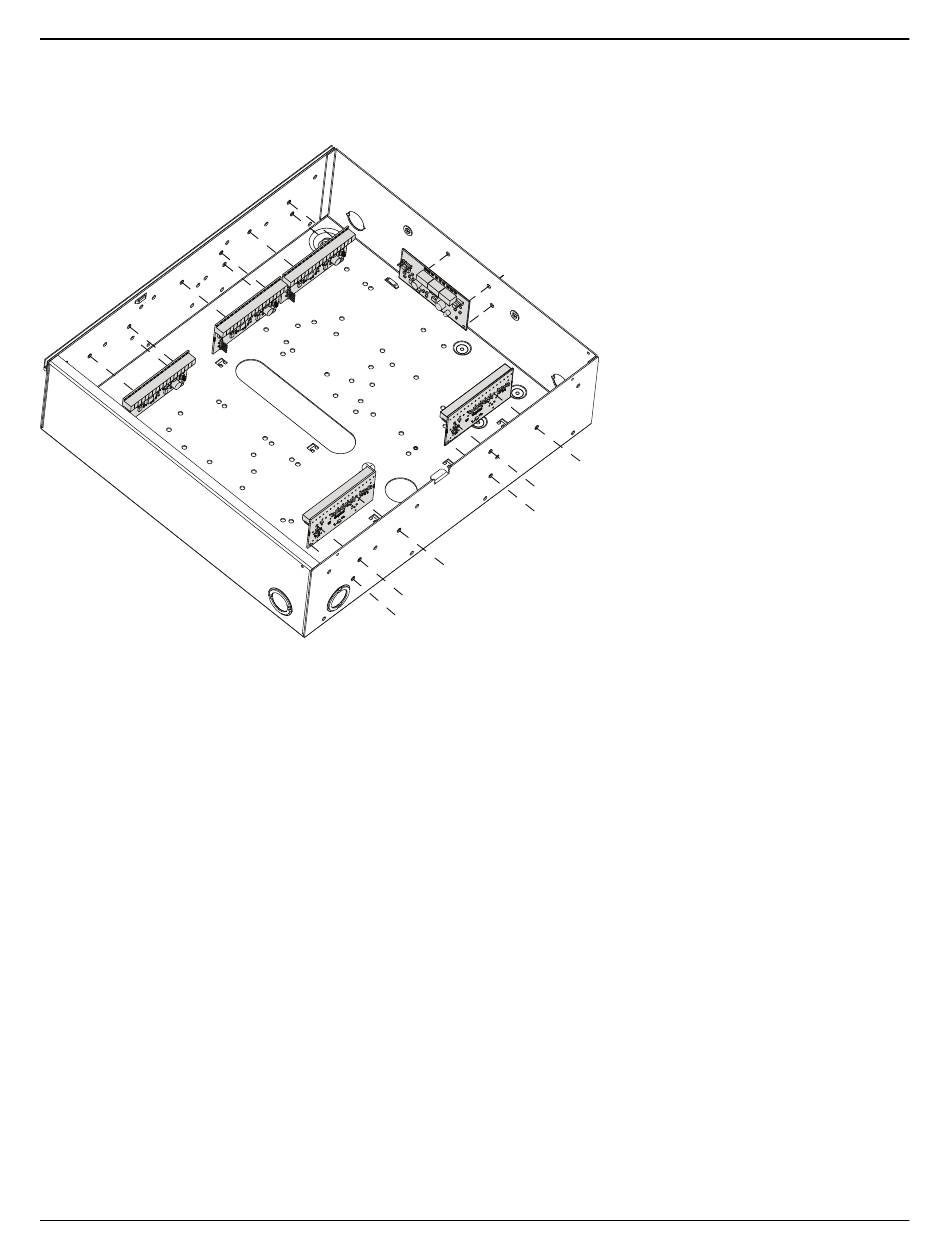

Figure 2-7 HSM2108/HSM2208 Mounted in HSC3010C, HSC3010CR, HSC3030CAR Enclosures

2.3 General Wiring Instructions

To connect the wiring for the PowerSeries Pro, complete the following steps:
1. Ensure all wires are secured to the enclosure using cable ties. See figures 2-4, 2-5, and 2-6 for locations.
2. Route the AC line into the enclosure through the provided opening, as indicated in figure 2-4.
3. Route the DC wires to the alarm controller as shown. Use cable ties to secure the DC wires to the enclosure.
4. Route wiring for modules and other devices into the enclosure through provided openings. Remove knockouts as
required.
Note: For HSC3030CAR attack-resistant enclosure, all unused holes must be covered by plastic plugs (available).
This diagram shows routing of power limited and non-power limited wiring inside the enclosure. Battery leads and AC cord
are non-power limited. All other wiring is power limited.
