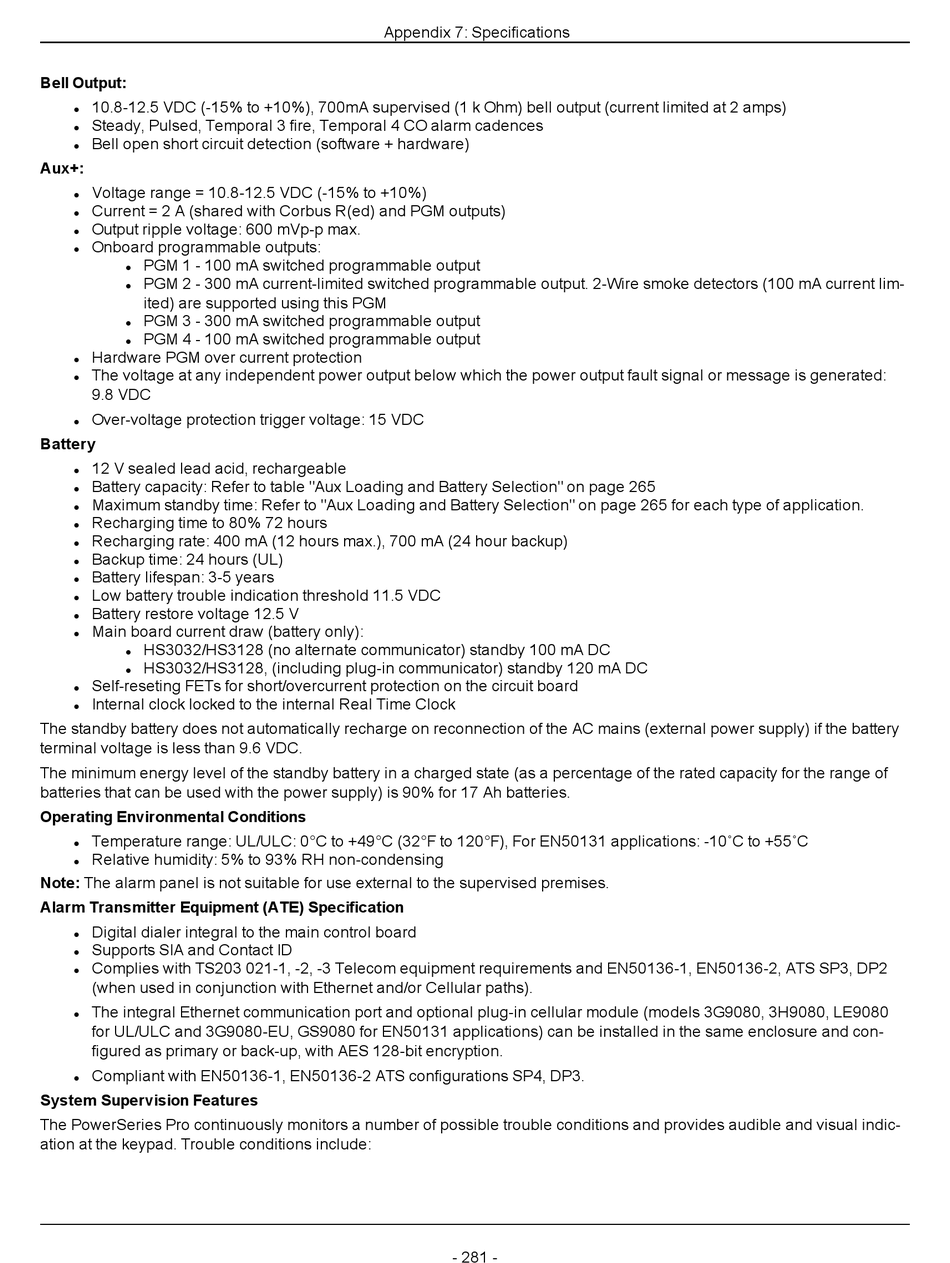

Johnson Controls tyco Power Pro Series Reference Manual page 281

Bell Output:
10.8-12.5 VDC (-15% to +10%), 700mA supervised (1 k Ohm) bell output (current limited at 2 amps)
l
Steady, Pulsed, Temporal 3 fire, Temporal 4 CO alarm cadences
l
Bell open short circuit detection (software + hardware)
l
Aux+:
Voltage range = 10.8-12.5 VDC (-15% to +10%)
l
Current = 2 A (shared with Corbus R(ed) and PGM outputs)
l
Output ripple voltage: 600 mVp-p max.
l
Onboard programmable outputs:
l
PGM 1 - 100 mA switched programmable output
l
PGM 2 - 300 mA current-limited switched programmable output. 2-Wire smoke detectors (100 mA current lim-
l
ited) are supported using this PGM
PGM 3 - 300 mA switched programmable output
l
PGM 4 - 100 mA switched programmable output
l
Hardware PGM over current protection
l
The voltage at any independent power output below which the power output fault signal or message is generated:
l
9.8 VDC
Over-voltage protection trigger voltage: 15 VDC
l
Battery
12 V sealed lead acid, rechargeable
l
Battery capacity: Refer to table "Aux Loading and Battery Selection" on page 265
l
Maximum standby time: Refer to "Aux Loading and Battery Selection" on page 265 for each type of application.
l
Recharging time to 80% 72 hours
l
Recharging rate: 400 mA (12 hours max.), 700 mA (24 hour backup)
l
Backup time: 24 hours (UL)
l
Battery lifespan: 3-5 years
l
Low battery trouble indication threshold 11.5 VDC
l
Battery restore voltage 12.5 V
l
Main board current draw (battery only):
l
HS3032/HS3128 (no alternate communicator) standby 100 mA DC
l
HS3032/HS3128, (including plug-in communicator) standby 120 mA DC
l
Self-reseting FETs for short/overcurrent protection on the circuit board
l
Internal clock locked to the internal Real Time Clock
l
The standby battery does not automatically recharge on reconnection of the AC mains (external power supply) if the battery
terminal voltage is less than 9.6 VDC.
The minimum energy level of the standby battery in a charged state (as a percentage of the rated capacity for the range of
batteries that can be used with the power supply) is 90% for 17 Ah batteries.
Operating Environmental Conditions
Temperature range: UL/ULC: 0°C to +49°C (32°F to 120°F), For EN50131 applications: -10˚C to +55˚C
l
Relative humidity: 5% to 93% RH non-condensing
l
Note: The alarm panel is not suitable for use external to the supervised premises.
Alarm Transmitter Equipment (ATE) Specification
Digital dialer integral to the main control board
l
Supports SIA and Contact ID
l
Complies with TS203 021-1, -2, -3 Telecom equipment requirements and EN50136-1, EN50136-2, ATS SP3, DP2
l
(when used in conjunction with Ethernet and/or Cellular paths).
The integral Ethernet communication port and optional plug-in cellular module (models 3G9080, 3H9080, LE9080
l
for UL/ULC and 3G9080-EU, GS9080 for EN50131 applications) can be installed in the same enclosure and con-
figured as primary or back-up, with AES 128-bit encryption.
Compliant with EN50136-1, EN50136-2 ATS configurations SP4, DP3.
l
System Supervision Features
The PowerSeries Pro continuously monitors a number of possible trouble conditions and provides audible and visual indic-
ation at the keypad. Trouble conditions include:
Appendix 7: Specifications
- 281 -
