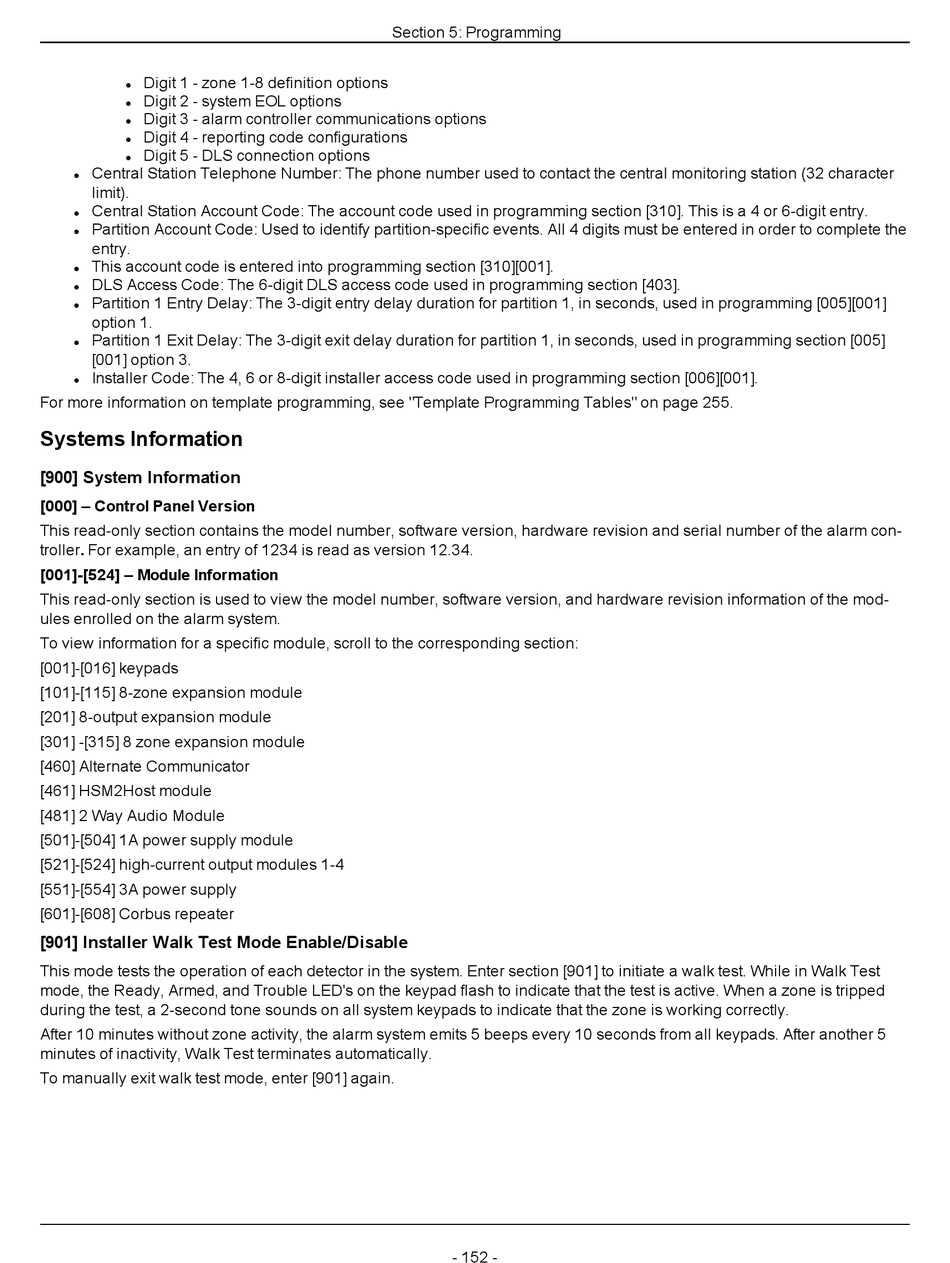

Digit 1 - zone 1-8 definition options
l
Digit 2 - system EOL options
l
Digit 3 - alarm controller communications options
l
Digit 4 - reporting code configurations
l
Digit 5 - DLS connection options
l
Central Station Telephone Number: The phone number used to contact the central monitoring station (32 character
l
limit).
Central Station Account Code: The account code used in programming section [310]. This is a 4 or 6-digit entry.
l
Partition Account Code: Used to identify partition-specific events. All 4 digits must be entered in order to complete the
l
entry.
This account code is entered into programming section [310][001].
l
DLS Access Code: The 6-digit DLS access code used in programming section [403].
l
Partition 1 Entry Delay: The 3-digit entry delay duration for partition 1, in seconds, used in programming [005][001]
l
option 1.
Partition 1 Exit Delay: The 3-digit exit delay duration for partition 1, in seconds, used in programming section [005]
l
[001] option 3.
Installer Code: The 4, 6 or 8-digit installer access code used in programming section [006][001].
l
For more information on template programming, see "Template Programming Tables" on page 255.
Systems Information
[900] System Information
[000] – Control Panel Version
This read-only section contains the model number, software version, hardware revision and serial number of the alarm con-
troller. For example, an entry of 1234 is read as version 12.34.
[001]-[524] – Module Information
This read-only section is used to view the model number, software version, and hardware revision information of the mod-
ules enrolled on the alarm system.
To view information for a specific module, scroll to the corresponding section:
[001]-[016] keypads
[101]-[115] 8-zone expansion module
[201] 8-output expansion module
[301] -[315] 8 zone expansion module
[460] Alternate Communicator
[461] HSM2Host module
[481] 2 Way Audio Module
[501]-[504] 1A power supply module
[521]-[524] high-current output modules 1-4
[551]-[554] 3A power supply
[601]-[608] Corbus repeater
[901] Installer Walk Test Mode Enable/Disable
This mode tests the operation of each detector in the system. Enter section [901] to initiate a walk test. While in Walk Test
mode, the Ready, Armed, and Trouble LED's on the keypad flash to indicate that the test is active. When a zone is tripped
during the test, a 2-second tone sounds on all system keypads to indicate that the zone is working correctly.
After 10 minutes without zone activity, the alarm system emits 5 beeps every 10 seconds from all keypads. After another 5
minutes of inactivity, Walk Test terminates automatically.
To manually exit walk test mode, enter [901] again.
