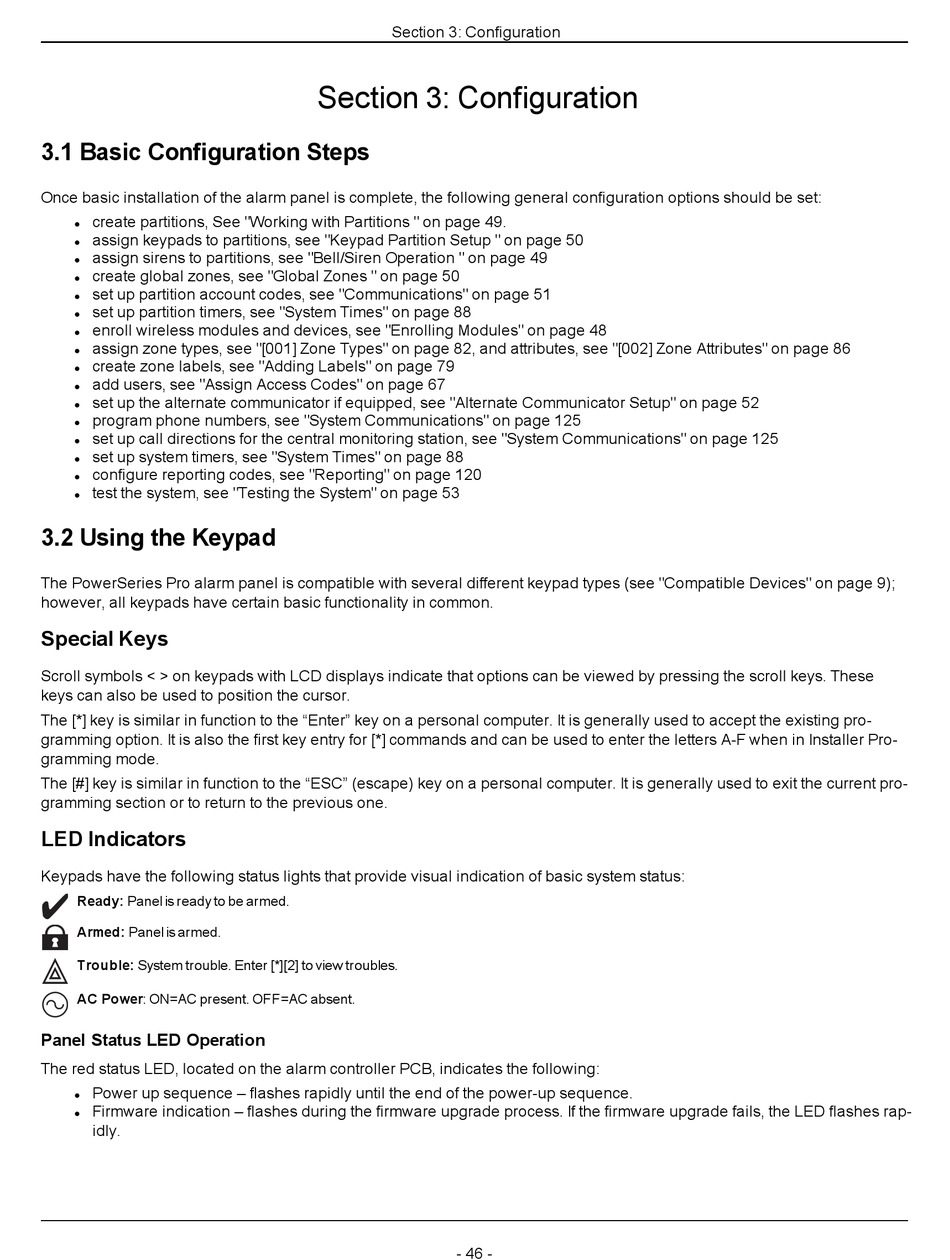

3.1 Basic Configuration Steps

Once basic installation of the alarm panel is complete, the following general configuration options should be set:
create partitions, See "Working with Partitions " on page 49.
l
assign keypads to partitions, see "Keypad Partition Setup " on page 50
l
assign sirens to partitions, see "Bell/Siren Operation " on page 49
l
create global zones, see "Global Zones " on page 50
l
set up partition account codes, see "Communications" on page 51
l
set up partition timers, see "System Times" on page 88
l
enroll wireless modules and devices, see "Enrolling Modules" on page 48
l
assign zone types, see "[001] Zone Types" on page 82, and attributes, see "[002] Zone Attributes" on page 86
l
create zone labels, see "Adding Labels" on page 79
l
add users, see "Assign Access Codes" on page 67
l
set up the alternate communicator if equipped, see "Alternate Communicator Setup" on page 52
l
program phone numbers, see "System Communications" on page 125
l
set up call directions for the central monitoring station, see "System Communications" on page 125
l
set up system timers, see "System Times" on page 88
l
configure reporting codes, see "Reporting" on page 120
l
test the system, see "Testing the System" on page 53
l

3.2 Using the Keypad

The PowerSeries Pro alarm panel is compatible with several different keypad types (see "Compatible Devices" on page 9);
however, all keypads have certain basic functionality in common.
Special Keys
Scroll symbols < > on keypads with LCD displays indicate that options can be viewed by pressing the scroll keys. These
keys can also be used to position the cursor.
The [*] key is similar in function to the "Enter" key on a personal computer. It is generally used to accept the existing pro-
gramming option. It is also the first key entry for [*] commands and can be used to enter the letters A-F when in Installer Pro-
gramming mode.
The [#] key is similar in function to the "ESC" (escape) key on a personal computer. It is generally used to exit the current pro-
gramming section or to return to the previous one.
LED Indicators
Keypads have the following status lights that provide visual indication of basic system status:
Ready: Panel is ready to be armed.
Armed: Panel is armed.
Trouble: System trouble. Enter [*][2] to view troubles.
AC Power: ON=AC present. OFF=AC absent.
Panel Status LED Operation
The red status LED, located on the alarm controller PCB, indicates the following:
Power up sequence – flashes rapidly until the end of the power-up sequence.
l
Firmware indication – flashes during the firmware upgrade process. If the firmware upgrade fails, the LED flashes rap-
l
idly.
