Section 2: Installation
Wall Mounting the HSC3020CP Enclosure
The following diagram indicates the mounting location of the alarm controller PCB, wireless receiver, power supply module
and tamper bracket inside the HSC3020CP enclosure.
A Tamper screws

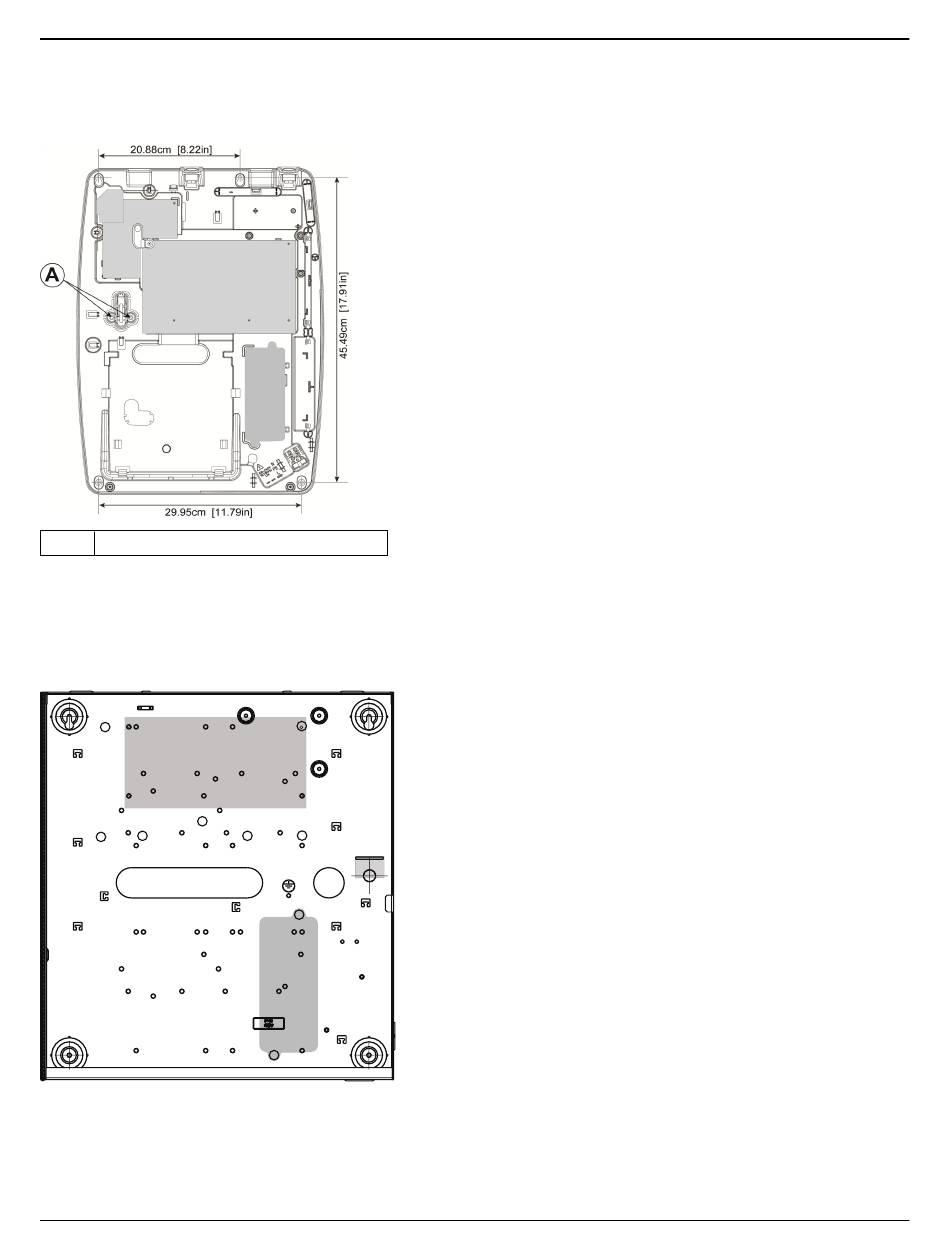

Figure 2-3 HSC3020CP Enclosure
Note: The HSC3020CP is used only for EN50131 and NFA2P certified installations.
HSM3204CX/HSM3350 Mounting Location in HSC3010C
The following diagram indicates the mounting location of the HSM3204CX/HSM3350, power supply module and tamper
bracket inside HSC3010C/ HSC3010CR/ HSC3030CAR and HSC3020 enclosures.
Figure 2-4 HSM3304CX/HSM3350 Mounted in HSC3010C, HSC3010CR, HSC3030CAR Enclosures
