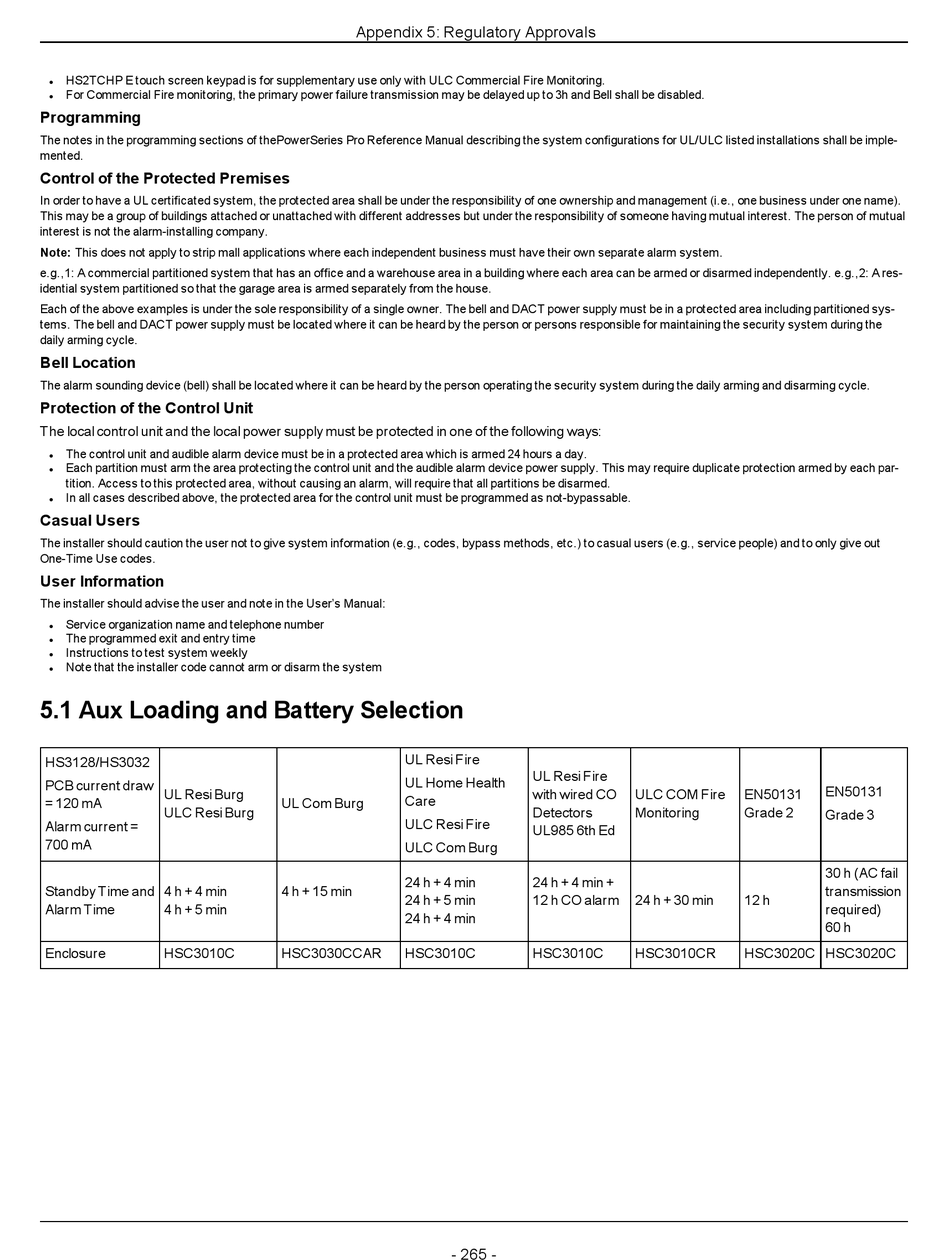

HS2TCHP E touch screen keypad is for supplementary use only with ULC Commercial Fire Monitoring.

For Commercial Fire monitoring, the primary power failure transmission may be delayed up to 3h and Bell shall be disabled.

Programming

The notes in the programming sections of thePowerSeries Pro Reference Manual describing the system configurations for UL/ULC listed installations shall be imple-

mented.

Control of the Protected Premises

In order to have a UL certificated system, the protected area shall be under the responsibility of one ownership and management (i.e., one business under one name).

This may be a group of buildings attached or unattached with different addresses but under the responsibility of someone having mutual interest. The person of mutual

interest is not the alarm-installing company.

Note: This does not apply to strip mall applications where each independent business must have their own separate alarm system.

e.g.,1: A commercial partitioned system that has an office and a warehouse area in a building where each area can be armed or disarmed independently. e.g.,2: A res-

idential system partitioned so that the garage area is armed separately from the house.

Each of the above examples is under the sole responsibility of a single owner. The bell and DACT power supply must be in a protected area including partitioned sys-

tems. The bell and DACT power supply must be located where it can be heard by the person or persons responsible for maintaining the security system during the

daily arming cycle.

Bell Location

The alarm sounding device (bell) shall be located where it can be heard by the person operating the security system during the daily arming and disarming cycle.

Protection of the Control Unit

The local control unit and the local power supply must be protected in one of the following ways:

The control unit and audible alarm device must be in a protected area which is armed 24 hours a day.

Each partition must arm the area protecting the control unit and the audible alarm device power supply. This may require duplicate protection armed by each par-

tition. Access to this protected area, without causing an alarm, will require that all partitions be disarmed.

In all cases described above, the protected area for the control unit must be programmed as not-bypassable.

Casual Users

The installer should caution the user not to give system information (e.g., codes, bypass methods, etc.) to casual users (e.g., service people) and to only give out

One-Time Use codes.

User Information

The installer should advise the user and note in the User's Manual:

Service organization name and telephone number

The programmed exit and entry time

Instructions to test system weekly

Note that the installer code cannot arm or disarm the system

5.1 Aux Loading and Battery Selection

HS3128/HS3032

PCB current draw

UL Resi Burg

= 120 mA
