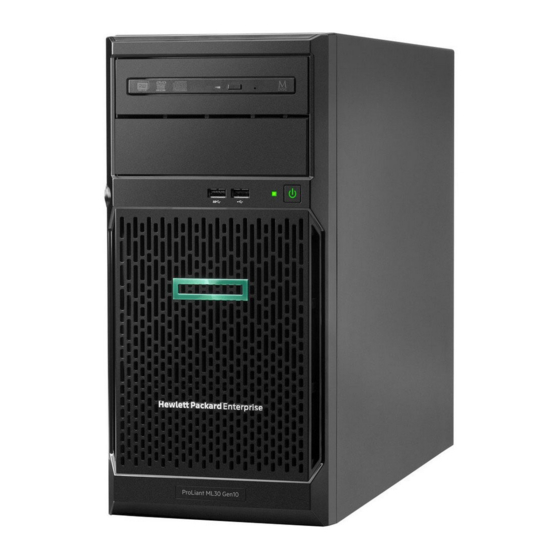

HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide
HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide
Part Number: 30-218DCBFB-007
Published: June 2021
Edition: 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLiant ML30 Gen10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HPE ProLiant ML30 Gen10

Summary of Contents for HPE ProLiant ML30 Gen10

  • Page 1 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide Part Number: 30-218DCBFB-007 Published: June 2021 Edition: 7...
  • Page 2 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide Abstract Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels, and are familiar with the weight and stability precautions for rack installations.
  • Page 3 Processor spare parts Heatsink spare part System fan spare part Server options HPE Trusted Platform Module 2.0 spare part Energy pack spare part Four LFF hot-plug drive backplane spare part Eight SFF hot-plug drive backplane spare part Miscellaneous system cable spare kit...
  • Page 4 Remove the front bezel Position the tower server for hardware configuration Remove the access panel Remove the air baffle Install the access panel Install the front bezel Position the tower server for operation Removing and replacing the front bezel Removing and replacing the air baffle Removing and replacing drives Removing and replacing an LFF non-hot-plug drive from the media drive bay Removing and replacing an LFF non-hot-plug drive from the drive cage...
  • Page 5 Removing and replacing the system battery Removing and replacing the system board Removing the system board Replacing the system board Re-entering the server serial number and product ID HPE Trusted Platform Module 2.0 Gen10 Option Troubleshooting NMI functionality Troubleshooting resources Diagnostic tools...
  • Page 6 Power supply specifications HPE 350W E-star 1.0 Non-hot-plug Power Supply (85% efficiency) HPE 350W Gold Non-hot-plug Power Supply (92% efficiency) HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply Websites Support and other resources Accessing Hewlett Packard Enterprise Support...

  • Page 7: Illustrated Parts Catalog

    Flexible Slot power supply blank spare part EMI shield spare part Front bezel spare part Energy pack holder spare part Air baffle spare part iLO dedicated network port blank spare part HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 8: Flexible Slot Power Supply Blank Spare Part

    For more information on the removal and replacement procedures, see Removing and replacing the front bezel . Energy pack holder spare part Energy pack holder spare part Customer self repair: Mandatory Mandatory HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 9: Air Baffle Spare Part

    For more information on the removal and replacement procedures, see Removing and replacing the serial port blank . System components System components Hewlett Packard Enterprise continually improves and changes product parts. For complete and current supported spare parts HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 10 Flexible Slot power supply backplane spare part PCI fan spare part DIMM spare parts System battery spare part System board assembly spare parts M.2 SSD/dedicated iLO/serial port enablement board spare part Processor spare parts Heatsink spare part HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 11: Flexible Slot Power Supply Spare Part (Hot-Plug)

    Flexible Slot power supply backplane P07479-001 For more information on the removal and replacement procedure, see Removing and replacing the Flexible Slot (Redundant) power supply backplane. PCI fan spare part PCI fan spare part HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 12: Dimm Spare Parts

    For more information on the removal and replacement procedure, see Removing and replacing the system battery . System board assembly spare parts System board assembly spare parts Customer self repair: Mandatory Mandatory Description Description Spare part number Spare part number System board assembly P07478-001 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 13: Processor Spare Parts

    Intel Xeon E-2200 Family processors — Intel Xeon E-2224, 3.40 GHz, 4C, 71 W P19426-001 Intel Xeon E-2226G, 3.40 GHz, 6C, 80 W P19112-001 Intel Xeon E-2234, 3.60 GHz, 4C, 71 W P19114-001 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 14: Heatsink Spare Part

    Description Spare part number Spare part number System fan 825095-001 For more information on the removal and replacement procedure, see Removing and replacing the system fan . Server options Server options HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 15: Hpe Trusted Platform Module 2.0 Spare Part

    HPE Trusted Platform Module 2.0 spare part Customer self repair: No Description Description Spare part number Spare part number HPE Trusted Platform Module Gen10, TAA 872159-001 Energy pack spare part Energy pack spare part HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 16: Four Lff Hot-Plug Drive Backplane Spare Part

    Spare part number Front I/O module cable P06531-001 Front USB cable P06532-001 SATA cable (450 mm) P07482-001 Power cable with four SATA connectors P07483-001 Mini SAS cable with four SATA connectors P07484-001 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 17: Customer Self Repair

    Packard Enterprise (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut être effectuée à l'aide d'une pièce CSR, Hewlett Packard Enterprise vous l'envoie directement. Il existe deux catégories de pièces CSR : HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 18: Riparazione Da Parte Del Cliente

    Per il servizio di garanzia per i soli componenti è obbligatoria la formula CSR che prevede la riparazione da parte del cliente. Se il cliente invece richiede la sostituzione ad Hewlett Packard Enterprise dovrà sostenere le spese di spedizione e di manodopera per il servizio. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 19: Parts-Only Warranty Service (Garantieservice Ausschließlich Für Teile)

    Hewlett Packard Enterprise, deberá hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los componentes defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje de envío. Si no enviara el HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 20: Servicio De Garantía Exclusivo De Componentes

    CSR, a Hewlett Packard Enterprise enviará a peça diretamente ao cliente. Há duas categorias de peças CSR: Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a Hewlett Packard Enterprise substitua essas peças, Obrigatória HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 21: Serviço De Garantia Apenas Para Peças

    No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a Hewlett Packard Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 22 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 23 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 24: Removal And Replacement Procedures

    Required tools Required tools You need the following items for some procedures: T-10 Torx screwdriver T-15 Torx screwdriver T-30 Torx screwdriver Phillips No. 1 screwdriver Hex nut screwdriver Alcohol swab Thermal grease HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 25: Safety Considerations

    This symbol in conjunction with any of the following symbols indicates the presence of a potential hazard. The potential for injury exists if warnings are not observed. Consult your documentation for specific details. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 26 This symbol indicates the presence of a moving fan blade. If the spinning blades are contacted, the potential for injury exists. WARNING: WARNING: Hazardous moving parts. Keep away from moving fan blades. To reduce the risk of injury from a hot component, allow the surface to cool before touching. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 27 This symbol indicates the presence of a laser device in the product that may exceed Class 1 limits. Refer to the product documentation for more information. This symbol indicates the presence of moving parts inside the product that may present a pinch point if improperly contacted. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 28: Rack Warnings And Cautions

    You must fully understand the static and dynamic load carrying capacity of the rack and be sure that it can accommodate the weight of the server. Be sure sufficient clearance exists for cabling, installation and removal of the server, and movement of the rack doors. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 29: Server Warnings And Cautions

    When the server is in standby mode, auxiliary power is still being provided to the system. To power down the server, use one of the following methods: Press and release the Power On/Standby button. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 30: Power Up The Server

    4. Slide the server tray out of the rack: a. Loosen the server tray thumbscrews. b. Grasp the tray notch and slide the server out of the rack. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 31: Remove The Server From The Rack

    4. If installed, unlock and remove the security padlock and/or the Kensington security lock. For more information, see the lock documentation. 5. Extend the server from the rack . 6. Remove the server from the tray. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 32: Slide The Server Into The Rack

    Slide the server into the rack Procedure Procedure 1. Press and hold the blue release latches on both rails, and then slide the server tray back into the rack. 2. Tighten the server tray thumbscrews. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 33: Remove The Front Bezel

    1. If locked, unlock the front bezel. 2. Open the front bezel. 3. Pull the front bezel away from the chassis. Position the tower server for hardware configuration Position the tower server for hardware configuration HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 34: Remove The Access Panel

    If the server is in tower mode: Position the tower server for hardware configuration. If the server is in rack mode: Remove the server from the rack . 6. Remove the front bezel . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 35: Remove The Air Baffle

    6. Remove the access panel . 7. Remove the air baffle: a. Lift the front end of the baffle from the chassis. b. Remove the baffle from the slots on the rear chassis. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 36: Install The Access Panel

    Place the access panel on the chassis and slide it toward the front of the server. b. Tighten the access panel thumbscrew. 2. Install the front bezel . 3. If removed, install the security padlock and/or Kensington security lock. For more information, see the lock documentation. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 37: Install The Front Bezel

    2. Close the front bezel. 3. Lock the front bezel. Position the tower server for operation Position the tower server for operation Procedure Procedure Return the server to an upright position. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 38: Removing And Replacing The Front Bezel

    If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel: a. If locked, unlock the front bezel. b. Open the front bezel. c. Pull the front bezel away from the chassis. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 39: Removing And Replacing The Air Baffle

    6. Remove the access panel . 7. Remove the air baffle: a. Remove the front end of the baffle from the chassis. b. Remove the baffle from the slots on the rear chassis. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 40: Removing And Replacing Drives

    6. Remove the front bezel . 7. Remove the access panel . 8. If installed, remove the air baffle . 9. Disconnect all cables from the drive . 10. Remove the drive enablement assembly: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 41 To replace the component, reverse the removal procedure. Removing and replacing an LFF non-hot-plug drive from the drive cage Removing and replacing an LFF non-hot-plug drive from the drive cage Prerequisites Prerequisites HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 42 Remove the drive cage. 11. Remove the drive: a. Remove the screws securing the drive. Retain the screws for future use. b. Slide the drive out of the drive cage. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 43: Removing And Replacing An Lff Hot-Plug Drive

    3. Determine the status of the drive from the drive LED definitions . 4. Remove the drive. To replace the component, reverse the removal procedure. Caution: All bays must be populated Caution: All bays must be populated HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 44: Removing And Replacing An Sff Hot-Plug Drive

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Do one of the following: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 45: Removing And Replacing A Usb Rdx Drive

    4. Do one of the following: If the server is in tower mode: Position the tower server for hardware configuration. If the server is in rack mode: Remove the server from the rack . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 46: Removing And Replacing An Optical Drive

    If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 47: Removing And Replacing An Internal Usb Device

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Do one of the following: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 48 If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Remove the iLO dedicated network port blank. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 49: Removing And Replacing The Front I/O Assembly

    8. Disconnect the front I/O cable from the system board . 9. Remove the front I/O bracket: a. Press the bracket on both the ends. b. Remove the front I/O bracket. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 50 Removing and replacing the front panel USB ports cable assembly Removing and replacing the front panel USB ports cable assembly Prerequisites Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 51: Removing And Replacing The Emi Shield

    Procedure Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 52: Removing And Replacing The Serial Port Blank

    If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Remove the serial port blank. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 53: Removing And Replacing The Four Lff Hot-Plug Drive Backplane

    7. If installed, remove the air baffle . 8. Disconnect the drive power and controller cables from the backplane . 9. Remove all drives . 10. Remove the drive cage. Retain the screws for future use. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 54: Removing And Replacing The Eight Sff Hot-Plug Drive Backplane

    Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available. Procedure Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 55 8. Disconnect the drive power and controller cables from the backplane . 9. Remove all drives . 10. Remove the drive cage. Retain the screws for future use. 11. Remove the drive backplane. Retain the screws for future use. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 56 If the server is in tower mode: Position the tower server for hardware configuration. If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 57 Disconnect the enablement board from the slot. 11. If installed, remove the M.2 SSD . 12. Remove the hex nut from the M.2 SSD/dedicated iLO/serial port enablement board and retain it for future use. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 58: Removing And Replacing An M.2 Ssd

    Remove the SSD mounting screw. b. Lift the M.2 SSD at an angle of 45°. c. Remove the M.2 SSD from the M.2 SSD slot. To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 59: Removing And Replacing An Expansion Board

    7. If installed, remove the air baffle . 8. Loosen the thumbscrew and remove the PCI slot blank retainer. 9. Disconnect any internal cables that are connected to the expansion board. 10. Remove the expansion board. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 60 If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 61: Dimm-Processor Compatibility

    10. Remove the storage controller. To replace the component, reverse the removal procedure. DIMM-processor compatibility DIMM-processor compatibility The installed processor determines the type of DIMM that is supported in the server: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 62: Removing And Replacing A Dimm

    6. Remove the access panel . 7. If installed, remove the air baffle . 8. Open the DIMM slot latches. 9. Remove the DIMM. To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 63: Removing And Replacing A Pci Fan

    8. Remove the PCI fan module: a. Disconnect and release the fan cable from the metal tab. b. Remove the screws. c. Remove the PCI fan. To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 64: Removing And Replacing The System Fan

    Remove the screws securing the fan cage. c. Remove the system fan. To replace the component, reverse the removal procedure. Removing and replacing the energy pack Removing and replacing the energy pack HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 65 Remove the entire energy pack from the holders. To replace the component, reverse the removal procedure. Removing and replacing the energy pack holders Removing and replacing the energy pack holders HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 66 7. If installed, remove the air baffle . 8. Remove the energy pack. 9. Access the bottom of the server and push the latches inwards to release the holders. 10. Remove the energy pack holders. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 67: Removing And Replacing A Heatsink

    If the server is in rack mode: Remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Allow the heatsink to cool. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 68: Replacing A Heatsink

    Procedure 1. Clean the old thermal grease from the processor with the alcohol swab. Allow the alcohol to evaporate before continuing. 2. Remove the thermal interface protective cover from the heatsink. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 69 CAUTION: The fan does not have a fan guard. Special attention is needed when removing or installing the CAUTION: heatsink to prevent finger injury. 4. If removed, install the air baffle. 5. Install the access panel. 6. Install the front bezel. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 70: Removing And Replacing A Processor

    Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws. c. Completely loosen all screws in the same sequence. d. Remove the heatsink from the processor backplate. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 71 THE PINS ON THE PROCESSOR SOCKET AND ON THE PROCESSOR ARE VERY FRAGILE AND EASILY DAMAGED. damage to them might require replacing the system board. 11. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 72 12. Hold the processor by the edges, and then lift it out of the socket. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 73: Replacing A Processor

    Torque screwdriver Alcohol wipe 1.0 gm (0.5 ml) or two 0.5 gm (0.25 ml) of thermal grease Procedure Procedure 1. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 74 Pin 1 indicator on the processor and the socket b. Lower the processor straight down, without tilting or sliding the processor in the socket . Make sure that the processor is properly seated in the socket. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 75 Allow the alcohol to evaporate before continuing. 5. Apply new thermal grease to the processor in the following pattern to ensure even distribution. Use the full contents of the thermal grease syringe. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 76 7. If removed, install the air baffle. 8. Install the access panel. 9. Install the front bezel. 10. Connect all peripheral cables to the server. 11. Connect the power cords: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 77: Removing And Replacing The Non-Hot-Plug Power Supply

    5. Remove the front bezel . 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Disconnect all power supply cables . 9. Remove the non-hot-plug power supply. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 78 If the server is in tower mode: Position the tower server for hardware configuration. If the server is in rack mode: Remove the server from the rack . 5. Remove the power supply: a. Disconnect the power cord from the power supply. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 79 CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated CAUTION: with either a component or a blank. Procedure Procedure Remove the Flexible Slot power supply blank. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 80 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Disconnect all the power supply cables from the backplane . 9. Remove the power supply from the power supply cage. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 81 10. Remove the RPS cage. Retain the screws for future use. 11. Remove the Flexible Slot power supply backplane. Retain the screws for future use. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 82: System Battery Replacement

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Do one of the following: HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 83 With the side of the battery showing the "+" sign facing up, insert the battery into the socket (callout 1). b. Press the system battery down until it clicks into place (callout 2). 11. Install the access panel . 12. Install the front bezel . HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 84: Removing And Replacing The System Board

    15. Allow the heatsink to cool. 16. Remove the heatsink: a. Disconnect the heatsink fan cable. b. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 85 THE PINS ON THE PROCESSOR SOCKET AND ON THE PROCESSOR ARE VERY FRAGILE AND EASILY DAMAGED. damage to them might require replacing the system board. 18. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 86 19. Hold the processor by the edges, and then lift it out of the socket. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 87: Replacing The System Board

    Prerequisites Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available. Procedure Procedure 1. Position the system board over the alignment tabs on the chassis. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 88 2. Install the system board. 3. Open the processor load plate: a. Push the processor locking lever down to unclip, and then lift it upwards (callout 1). b. Open the processor load plate (callout 2). HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 89 THE PINS ON THE PROCESSOR SOCKET AND ON THE PROCESSOR ARE VERY FRAGILE AND EASILY DAMAGED. damage to them might require replacing the system board. 4. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 90 Pin 1 indicator on the processor and the socket b. Lower the processor straight down, without tilting or sliding the processor in the socket . Make sure that the processor is properly seated in the socket. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 91 Allow the alcohol to evaporate before continuing. 9. Apply new thermal grease to the processor in the following pattern to ensure even distribution. Use the full contents of the thermal grease syringe. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 92 11. If removed, install the energy pack holders. 12. If removed, install the energy pack. 13. Install the DIMMs. 14. If removed, install the M.2 SSD/dedicated iLO/serial port enablement board. 15. Install the system fan. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 93: Re-Entering The Server Serial Number And Product Id

    HPE Trusted Platform Module 2.0 Gen10 Option The HPE Trusted Platform Module 2.0 Gen10 Option is not a customer-removable part. CAUTION: If the TPM is removed from the original server and powered up on a different server, data stored in the TPM CAUTION: including keys will be erased.

  • Page 94: Nmi Functionality

    Error Message Guide for HPE ProLiant Gen10 servers and HPE Synergy provides a list of error messages and information to assist with interpreting and resolving error messages.

  • Page 95: Selecting The Boot Mode

    UEFI BIOS. Secure Boot validates the software identity of the following components in the boot process: UEFI drivers loaded from PCIe cards UEFI drivers loaded from mass storage devices Preboot UEFI Shell applications OS UEFI boot loaders HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 96: Launching The Embedded Uefi Shell

    Service Pack for ProLiant (SPP). SPP is a comprehensive systems software and firmware solution for ProLiant servers, server blades, their enclosures, and HPE Synergy compute modules. These components are preloaded with a basic set of firmware and OS components that are installed along with Intelligent Provisioning.

  • Page 97: Intelligent Provisioning Operation

    To access Intelligent Provisioning: Press F10 from the POST screen and enter either Intelligent Provisioning or HPE Rapid Setup Software. From the iLO web interface using Lifecycle Management. Lifecycle Management allows you to access Intelligent Provisioning without rebooting your server.

  • Page 98: Hpe Infosight For Servers

    HPE Smart Storage Administrator HPE SSA is the main tool for configuring arrays on HPE Smart Array SR controllers. It exists in three interface formats: the HPE SSA GUI, the HPE SSA CLI, and HPE SSA Scripting. All formats provide support for configuration tasks. Some of the advanced tasks are available in only one format.

  • Page 99: Component Identification

    Accessing HPE SSA in the online environment This method requires an administrator to download the HPE SSA executables and install them. You can run HPE SSA online after launching the host operating system. For more information, see HPE SSA online help.

  • Page 100: Front Panel Led Power Fault Codes

    The following table provides a list of power fault codes, and the subsystems that are affected. Not all power faults are used by all servers. Subsystem Subsystem LED behavior LED behavior System board 1 flash Processor 2 flashes Memory 3 flashes Riser board PCIe slots 4 flashes FlexibleLOM 5 flashes HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 101: Rear Panel Components

    Flexible Slot power supply 1 (hot-plug) Flexible Slot power supply 2 (hot-plug) Non-hot-plug power supply Power cord strain relief clip NIC 1/iLO Shared Network Port Padlock eye System fan Kensington security slot NIC port 2 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 102: Rear Panel Leds

    System is off or power supply has failed. NIC link Green Network link No network link NIC status Green or flashing green Network active No network activity iLO link Green Network link HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 103: System Board Components

    System maintenance switch Flexible Slot power supply connector 4-pin power connector Heatsink fan connector 24-pin power connector M.2 SSD slot Internal USB 3.0 connector Front I/O connector x1 SATA port 1 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 104: System Maintenance Switch Descriptions

    On = Power-on password is disabled. 1 , 2 , 3 Off = No function On = Restore default manufacturing settings Reserved — Reserved — Reserved — Reserved — Reserved — Reserved HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 105: Dimm Label Identification

    1R = Single rank 2R = Dual rank 4R = Quad rank 8R = Octal rank Data width on DRAM x4 = 4-bit x8 = 8-bit x16 = 16-bit Memory generation PC4 = DDR4 HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 106: Dimm Slot Locations

    R = RDIMM (registered) L = LRDIMM (load reduced) E = Unbuffered ECC (UDIMM) For more information about product features, specifications, options, configurations, and compatibility, see the HPE DDR4 SmartMemory QuickSpecs on the Hewlett Packard Enterprise website (https://www.hpe.com/support/DDR4SmartMemoryQS https://www.hpe.com/support/DDR4SmartMemoryQS). DIMM slot locations DIMM slot locations DIMM slots are numbered sequentially (1 through 4).

  • Page 107: Pci Expansion Slot Definitions

    Type-p Smart Array controller FC HBA PCI3 HLFH 4, 1 1 GB Ethernet adapter 10 GB Ethernet adapter FLFH=Full length, full height HLFH=Half length, full height Drive LEDs and buttons Drive LEDs and buttons HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 108: Low-Profile Lff Drive Led Definitions

    Performing a logical drive extension Erasing Spare part activation The drive is not configured by a RAID controller or a spare drive. Smart Carrier (SC) drive LED definitions Smart Carrier (SC) drive LED definitions HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 109: Drive Bay Numbering

    The drive has failed. The drive is not configured by a RAID controller or a spare drive. Drive bay numbering Drive bay numbering Four-bay LFF non-hot-plug drive numbering Four-bay LFF non-hot-plug drive numbering HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 110 Four-bay LFF hot-plug drive numbering Four-bay LFF hot-plug drive numbering Eight-bay SFF hot-plug drive numbering Eight-bay SFF hot-plug drive numbering HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 111: Fan Numbering

    Fan numbering Fan numbering Fan number Fan number Fan type Fan type PCI fan (optional) System fan Heatsink fan HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 112: Fan Mode Behavior

    Cabling Cabling Cabling guidelines Cabling guidelines The cable colors in the cabling diagrams used in this chapter are for illustration purposes only. Observe the following guidelines when working with server cables. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 113: Before Connecting Cables

    Grip the body of the cable connector. Do not pull on the cable itself because this action can damage the internal wires of the cable or the pins on the port. If a cable does not disconnect easily, check for any release latch that must be pressed to disconnect the cable. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 114: Storage Cabling

    Storage cabling LFF non-hot-plug drive cabling from the media bay LFF non-hot-plug drive cabling from the media bay LFF non-hot-plug drive cabling with non-hot-plug supply LFF non-hot-plug drive cabling with non-hot-plug supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 115 SATA port 6 cable LFF non-hot-plug drive cabling with Flexible Slot power supply LFF non-hot-plug drive cabling with Flexible Slot power supply Cable color Cable color Description Description Orange Power supply cable HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 116: Lff Non-Hot-Plug Drive Cabling From The Drive Cage

    Pink SATA port 4 cable Green Drive power cable Black Power supply cable LFF non-hot-plug drive cabling with Flexible Slot power supply LFF non-hot-plug drive cabling with Flexible Slot power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 117: Lff Hot-Plug Drive Cabling

    Drive power cable Black Power supply cable LFF hot-plug drive cabling LFF hot-plug drive cabling LFF hot-plug drive cabling with non-hot-plug power supply LFF hot-plug drive cabling with non-hot-plug power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 118 Drive power cable LFF hot-plug drive cabling with Flexible Slot power supply LFF hot-plug drive cabling with Flexible Slot power supply Cable color Cable color Description Description Orange Drive power cable HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 119 Drive power cable Blue Mini-SAS cable to controller port 1 LFF hot-plug drive cabling for controller with Flexible Slot power supply LFF hot-plug drive cabling for controller with Flexible Slot power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 120: Sff Hot-Plug Drive Cabling

    Blue Mini-SAS cable to controller port 1 SFF hot-plug drive cabling SFF hot-plug drive cabling SFF hot-plug drive cabling with non-hot-plug power supply SFF hot-plug drive cabling with non-hot-plug power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 121 Mini-SAS cable from controller port 2 to drive backplane port 2 SFF hot-plug drive cabling for controller with non-hot-plug power supply SFF hot-plug drive cabling for controller with non-hot-plug power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 122 Mini-SAS cable from controller port 2 to drive backplane port 2 SFF hot-plug drive cabling for controller with Flexible Slot power supply SFF hot-plug drive cabling for controller with Flexible Slot power supply Cable color Cable color Description Description HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 123 Mini-SAS cable from controller port 1 to drive backplane port 1 Gold Mini-SAS cable from controller port 2 to drive backplane port 2 Energy pack cabling Energy pack cabling Controller backup power cabling Controller backup power cabling HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 124: Media Device Cabling

    Media device cabling Media device cabling SATA optical drive cabling SATA optical drive cabling Cable color Cable color Description Description Orange Power supply cable HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 125: Sas Lto Tape Drive Cabling

    Blue SAS LTO tape drive power cable Gold SAS LTO tape drive cable SAS LTO tape drive with Flexible Slot power supply SAS LTO tape drive with Flexible Slot power supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 126: Usb Rdx Drive Cabling

    SAS LTO tape drive power cable Gold SAS LTO tape drive cable USB RDX drive cabling USB RDX drive cabling USB RDX drive with non-hot-plug power supply cabling USB RDX drive with non-hot-plug power supply cabling HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 127 USB RDX drive power cable Gold USB RDX drive cable USB RDX drive with Flexible Slot power supply cabling USB RDX drive with Flexible Slot power supply cabling Cable color Cable color Description Description HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 128: Serial Port Cabling

    Orange Power supply cable Blue USB RDX drive power cable Gold USB RDX drive cable Serial port cabling Serial port cabling Fan cabling Fan cabling System fan cabling System fan cabling HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 129 Heatsink fan cabling Heatsink fan cabling PCI fan cabling PCI fan cabling HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 130: Power Supply Cabling

    Power supply cabling Power supply cabling Non-hot-plug power supply cabling Non-hot-plug power supply cabling Cable color Cable color Description Description Orange 24-pin power supply cable Blue 4-pin power supply cable HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 131: Front I/O Cabling

    Flexible Slot power supply cabling Cable color Cable color Description Description Orange 24-pin power supply cable Blue 4-pin power supply cable Gold 26-pin sideband power cable Front I/O cabling Front I/O cabling HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 132: Front Usb Cabling

    Front USB cabling Front USB cabling Specifications Specifications For more information on cable, power, environmental, compliance, and general specifications, see the HPE Compute Transceiver and HPE Compute Transceiver and Cable Hardware Matrix. Cable Hardware Matrix HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 133: Environmental Specifications

    Depending on the installed options and the regional location where the server was purchased, the server can be configured with one of the following power supplies: HPE 350W E-star 1.0 Non-hot-plug Power Supply (85% efficiency) HPE 350W Gold Non-hot-plug Power Supply (92% efficiency) HPE 500W Flex Slot Platinum Hot-plug Power Supply HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 134 Rated input voltage 100 VAC to 240 VAC Rated input frequency 47 Hz to 63 Hz Rated input current Rated input power 400 W at 115 VAC 400 W at 230 VAC HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...
  • Page 135 Maximum peak power 385 W at 115 VAC 385 W at 230 VAC Rated output power 350 W HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply Specification Specification Value...

  • Page 136: Support And Other Resources

    To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: https://www.hpe.com/support/hpesc https://www.hpe.com/support/hpesc Information to collect Information to collect Technical support registration number (if applicable) Product name, model or version, and serial number Operating system name and version Firmware version HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

  • Page 137: Clearcare Technical Support

    IMPORTANT: IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HPE Passport set up with relevant entitlements. Remote support Remote support Remote support is available with supported devices as part of your warranty or contractual support agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which initiates a fast and accurate resolution based on the service level of your product.

  • Page 138: Documentation Feedback

    Feedback button and icons (located at the bottom of an opened document) on the Hewlett Packard Enterprise Support Center portal (https://www.hpe.com/support/hpesc https://www.hpe.com/support/hpesc) to send any errors, suggestions, or comments. All document information is captured by the process. HPE ProLiant ML30 Gen10 Server Maintenance and Service Guide...

Table of Contents
