QuickSpecs
Overview
HPE ProLiant ML30 Generation9 (Gen9)
HPE ProLiant ML30 Gen9, delivers a full featured single-socket tower server with the right features at a competitive price, easy to
use and maintain for growing small businesses and remote branch offices.

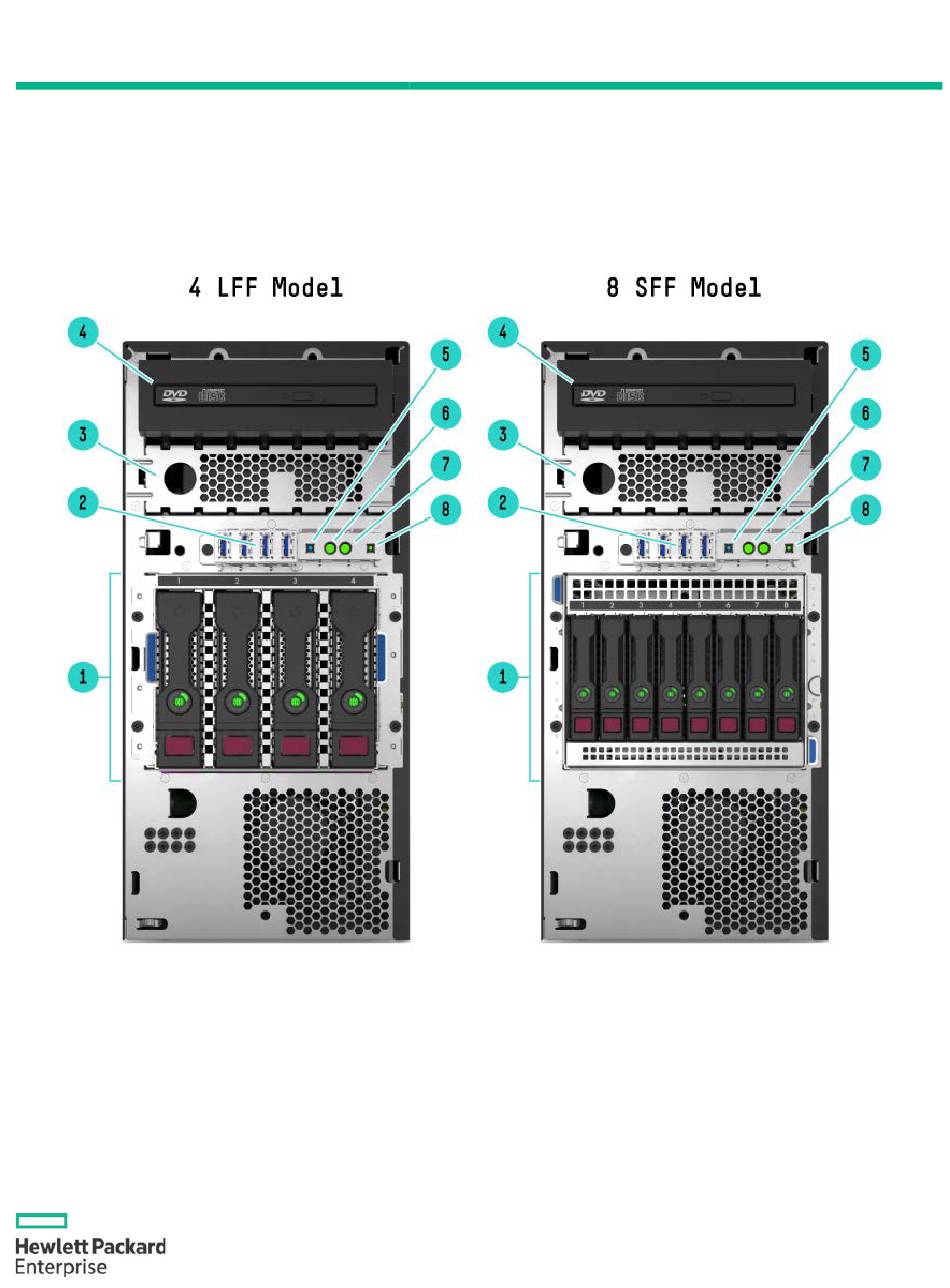

Front View (details for 4LFF and 8SFF)
1. Four (4) LFF or Eight (8) SAS/SATA HDD cage
3. Media Drive Blank
5. Power On/Standby button and system power LED button
7. Health LED
HPE ProLiant ML30 Generation9 (Gen9)
2. Four (4) USB 3.0 connectors
4. 9.5mm Slim SATA DVD-ROM or DVD RW Optical Drive
6. NIC status LED
8. UID (unit identification) button/LED
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HPE ProLiant ML30 Generation9

Summary of Contents for HPE ProLiant ML30 Generation9

  • Page 1 Overview HPE ProLiant ML30 Generation9 (Gen9) HPE ProLiant ML30 Gen9, delivers a full featured single-socket tower server with the right features at a competitive price, easy to use and maintain for growing small businesses and remote branch offices. Front View (details for 4LFF and 8SFF) 1.
  • Page 2 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Overview Rear View 1. PCI Slots (Slots 1-4) 2. USB 3.0 (2) 3. USB 2.0 (2) 4. Video Connector 5. UID LED 6. Power Supply Power Fan 7. HPE 350W Power Supply 8. NIC1/shared iLO port (lower), NIC2 (upper)

  • Page 3: What's New

    ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right for you at no upfront cost. To learn more on what you can do, please visit http://www.hpe.com/servers/clearos. Page 3...

  • Page 4: Standard Features

    NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/ On System HPE iLO (Firmware HPE iLO4 2.0 or later) 4GB NAND Management Chipset NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the HPE iLO QuickSpecs.
  • Page 5 One of the following HPE 460W Redundant Power Supply depending on model HPE Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs. All Entry-Level Page 5...
  • Page 6 HPE ProLiant Gen9 Essential Series servers. The HPE 350W FIO Power Supply is the standard, non-redundant AC power supply option for most HPE ProLiant Gen9 Essential servers. It features Bronze-level (85%) certified power efficiency with a set of features optimized for the Gen9 Essential-series rack and tower servers.
  • Page 7 HPE Server Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE UEFI/Legacy ROM ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

  • Page 8: Intelligent Provisioning

    Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/servers/smartupdatemanager. HPE Systems HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. Insight Manager...

  • Page 9: Warranty

    UEFI Warranty This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 10: Optional Features

    Optional Features Embedded iLO Essentials HPE iLO Essentials is the preferred license for small and medium business that offers full remote server management capabilities for small and medium business via the Management Integrated Remote Console (IRC), virtual media, and e-mail based alerts. Learn more about HPE iLO Essentials at http://www.hpe.com/servers/iLO/essentials.
  • Page 11 • HPE StoreVirtual VSA With HPE StoreVirtual VSA you can use the power of virtualization to create a virtual array within your host server. Manage it as a single pool of shared storage capacity, and scale it to match your evolving needs.

  • Page 12: Service And Support

    Standard: HPE Foundation Care 24x7, three-year Support Service HPE Foundation Care 24x7 gives you access to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours.
  • Page 13 HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.

  • Page 14: Pre-Configured Models

    QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Pre-configured Models 1. Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs. 2. Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

  • Page 15: Configuration Information - Factory Integrated Models

    This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
  • Page 16 The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."...
  • Page 17 HPE ProLiant ML30 Generation9 (Gen9) Configuration Information - Factory Integrated Models • This section may contain FIO options, please see HPE Cooling Options section below. • FIO indicates that this option is only available as a factory installable option. HPE Storage Select one or more Storage options from Additional Options section below.

  • Page 18: Core Options

    Core Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. HPE Unique...
  • Page 19 NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed 881457-B21 Firmware HDD HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed...
  • Page 20 HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD 765466-B21 HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD 832514-B21 HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware 765464-B21 NOTE: User may select any combination of SAS or SATA Hard Drives.
  • Page 21 HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware 873351-B21 12G SAS Hot Plug SFF (2.5-inch) Mixed Use Solid State Drives HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD 873359-B21 SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware...
  • Page 22 875317-B21 6G SATA Hot Plug SFF (2.5-inch) Mixed Use Solid State Drives HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD 877788-B21 HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD 872352-B21 HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD...
  • Page 23 Firmware SSD 6G SATA Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware 877790-B21 HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware 875480-B21 HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD...
  • Page 24 HPE ML30 Gen9 350W E-star 1.0 FIO Power Supply Kit 820303-B21 NOTE: Max=1. NOTE: The HPE ML30 Gen9 350W E-star 1.0 FIO Power Supply Kit supports Bronze- level efficiency (no less than 82%) at all load. HPE ML30 Gen9 350W E-star 2.0 Power Supply Kit 822384-B21 NOTE: Max=1.

  • Page 25: Additional Options

    Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. HPE Insight...
  • Page 26 HPE ProLiant ML30 Generation9 (Gen9) Additional Options are selected. HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller 726821-B21 NOTE: Device Count - This controller can support up to 8 internal SAS/SATA devices Must select P440/P840 Cable Kit x1 Must select Megacell battery x1 + battery holder kit x1 if no other P-series controllers are selected.
  • Page 27 HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit C0L99A HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit EJ014B HPE StoreEver LTO-4 Ultrium 1760 SAS (1) in a 1U Rack Mount Kit...
  • Page 28 U7WZ7E Foundation Care HPE 3 year Foundation Care Next business day ML30 Gen9 Service H1AS0E HPE 3 year Foundation Care Next business day with DMR ML30 Gen9 Service H1AS1E HPE 3 year Foundation Care 24x7 ML30 Gen9 Service H1AS6E HPE 3 year Foundation Care 24x7 with DMR ML30 Gen9 Service...
  • Page 29 HPE Standard Memory HPE Standard Memory is unique technology which is designed to work on 10/100 series Rack and Tower server. In Gen9 Server HPE Standard Memory has passed HPE's rigorous qualification and test processes. HPE Standard Memory is a certified HPE options and will provide a platform to allow future memory-related support enhancements through HPE Active Health System, System Insight Management and Insight Control management software.
  • Page 30 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Memory Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E3-1200v5 Series Processor Family Memory Bandwidth and Capacity [DIMM Type] Unbuffered with ECC DIMMs (UDIMMs) HPE SKU P/N 805667-B21 819880-B21 805669-B21 805671-B21...
  • Page 31 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Memory Memory Speed by Processor Models Supported Memory Speeds Processor Model E3-1220v5, E3-1230v5, E3-1240Lv5, E3-1240v5, 2133MT/s E3-1270v5, i3-6300, i3-6100, G4400, G4500 E3-1220v6, E3-1230v6, E3-1240v6, E3-1270v6, 2400MT/s E3-1278v6, i3-7300, i3-7100, G4560, G4600 Standard and Pre-Configured Models...
  • Page 32 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Storage 4-Bay LFF non-hot-plug drive model 4 x LFF SATA/SSD Non-hot-plug Hard Drive Bays 4-bay LFF hot-plug drive model 4 x LFF SAS/SSD Hot Pluggable Hard Drive Bays Page 32...
  • Page 33 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Storage 8-bay SFF hot-plug drive model 8 x SFF SATA/SSD Hot Pluggable Hard Drive Bays Maximum Storage Capacity Total (4 LFF Drive) 32TB Total (8 SFF Drive) 16TB Page 33...

  • Page 34: Technical Specifications

    QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Technical Specifications System Unit Tower Dimensions 14.50 x 6.89 x 18.7 in (36.82 x 17.5 x 47.52 cm) (H x W x D) Tower Weight Minimum: 27.1lb(13.56kg) Maximum: 30.8lb(15.4kg) Input Requirements Range Line Voltage...
  • Page 35 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Technical Specifications Operating LWAd 4.2 Bels (1P LFF Base) 3.8 Bels (1P LFF Performance) LpAm 27 dBA (1P LFF Base) 23 dBA (1P LFF Performance) NOTE: Configurations tested for 1P LFF Base models include one (1) 1TB LFF SATA Midline HDD and Windows 2012 Enterprise 64-bit.
  • Page 36 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Technical Specifications Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s per port, 40 Mb/s combined 10Base-T (Full-Duplex) 20 Mb/s per port, 80 Mb/s combined 100Base-TX 100 Mb/s per port, 400 Mb/s combined (Half-Duplex) 100Base-TX (Full-Duplex) 200 Mb/s per port, 800 Mb/s combined...

  • Page 37: Summary Of Changes

    Action Description of Change 4-Dec-2017 From Version 20 to 21 Added Added new HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD. 23-Oct-2017 From Version 19 to 20 Changed Care Pack naming and Service and Support- Parts and Materials updated.
  • Page 38 QuickSpecs HPE ProLiant ML30 Generation9 (Gen9) Summary of Changes Technical Specifications were revised. Sign up for updates © Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services.
