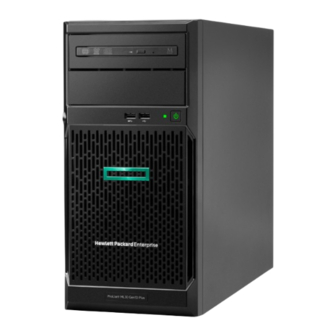

HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide
HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide
Part Number: 30-0602ED3E-002
Published: April 2023
Edition: 2

Advertisement

Table of Contents
loading

Related Manuals for HPE ProLiant ML30 Gen10 Plus

Summary of Contents for HPE ProLiant ML30 Gen10 Plus

  • Page 1 HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide Part Number: 30-0602ED3E-002 Published: April 2023 Edition: 2...

  • Page 2: Revision History

    HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide Abstract Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment, trained in recognizing hazards in products with hazardous energy levels, and are familiar with the weight and stability precautions for rack installations.
  • Page 4 Miscellaneous cable spare kit Server options PCI fan spare part Energy pack spare parts HPE NS204i-p NVMe OS Boot Device spare parts Storage controller spare parts M.2 SATA SSD add-in card spare part iLO-M.2-serial module spare part Serial port cable spare part Optical drive SATA-power Y-cable spare part 4 LFF / 8 SFF hot-plug drive standup controller Mini‑SAS cable spare part...
  • Page 5 Preparation procedures Server data backup Remove the front bezel Power down the server Remove the server from the rack Remove the access panel Remove the air baffle Remove the PCI blank retainer Remove a media drive Power up the server Removing and replacing the front bezel Drive replacement Removing and replacing a non-hot-plug LFF SATA drive...
  • Page 6 Removing and replacing the M.2 SATA SSD add‑in card Removing and replacing the M.2 SATA SSD on the add‑in card HPE NS204i-p NVMe OS Boot Device replacement Removing and replacing the boot device Removing and replacing a boot device drive Relocating the M.2 drive retaining latches...
  • Page 7 Drive bay numbering HPE Basic Drive LED definitions PCIe4 slot description PCIe expansion slot definitions HPE NS204i-p NVMe OS Boot Device components HPE NS204i-p NVMe OS Boot Device LED definitions Fan numbering Fan mode behavior Media device screws Trusted Platform Module 2.0 Trusted Platform Module 2.0 guidelines...
  • Page 8 HPE 350 W Gold Non-hot-plug Power Supply (92% efficiency) HPE 350 W Platinum Non-hot-plug Power Supply (94% efficiency) HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply HPE 800 W Flex Slot Titanium Hot-plug Low Halogen Power Supply...

  • Page 9: Customer Self Repair

    à utiliser. Pour plus d'informations sur le programme CSR de Hewlett Packard Enterprise, contactez votre Mainteneur Agrée local. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 10 Enterprise zurückgeschickt werden muss. Wenn es erforderlich ist, das defekte Teil an Hewlett Packard Enterprise zurückzuschicken, müssen Sie dies innerhalb eines vorgegebenen Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss mit HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 11 Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen voor reparatie door de klant. Optioneel Als u echter Hewlett Packard Enterprise verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 12 No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a Hewlett Packard Enterprise substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 13 HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 14 HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 15 HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 16: Illustrated Parts Catalog

    Server options Mechanical components Mechanical components Hewlett Packard Enterprise continually improves and changes product parts. For complete and current supported spare parts information, see the Hewlett Packard Enterprise PartSurfer website: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 17: Front Bezel Spare Part

    Drive blank spare parts Drive blank spare parts Miscellaneous blank spare parts Miscellaneous blank spare parts Miscellaneous plastic spare parts Miscellaneous plastic spare parts Front bezel spare part Front bezel spare part HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 18: Drive Blank Spare Parts

    Removing and replacing the iLO dedicated network port blank Removing and replacing the serial port blank Removing and replacing the power supply blank Miscellaneous plastic spare parts Miscellaneous plastic spare parts Customer self repair: Mandatory Mandatory HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 19: System Components

    System components System components Hewlett Packard Enterprise continually improves and changes product parts. For complete and current supported spare parts information, see the Hewlett Packard Enterprise PartSurfer website: https://www.hpe.com/info/partssurfer https://www.hpe.com/info/partssurfer HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 20 System board spare parts System fan spare part System fan spare part Front I/O assembly spare part Front I/O assembly spare part Front USB cable spare part Front USB cable spare part HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 21: Power Supply Spare Parts

    HPE 500 W Flexible Slot Platinum Hot-plug Low Halogen Power 866729-001 Supply HPE 800 W Flex Slot Titanium Hot-plug Low Halogen Power Supply 866793-001 For more information on the removal and replacement procedures, see Power supply replacement . Power distribution board spare part...

  • Page 22: System Battery Spare Part

    Intel Pentium Gold G6405, 4.1 GHz, 2C, 58 W P45399-001 For more information on the removal and replacement procedures, see Processor replacement. Heatsink spare parts Heatsink spare parts Customer self repair: Optional Optional HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 23: System Board Spare Parts

    For more information on the removal and replacement procedures, see Removing and replacing the front I/O assembly . Front USB cable spare part Front USB cable spare part Customer self repair: Mandatory Mandatory HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 24 Spare part number Spare part number Miscellaneous cable spare kit, includes: P48080-001 4 LFF / 8 SFF hot-plug drive SATA-power cable Flexible Slot power fan-out cable GPU auxiliary power cable HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 25: Server Options

    Server options Server options Hewlett Packard Enterprise continually improves and changes product parts. For complete and current supported spare parts information, see the Hewlett Packard Enterprise PartSurfer website: https://www.hpe.com/info/partssurfer https://www.hpe.com/info/partssurfer HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 26 Removing and replacing an M.2 SSD Removing and replacing the M.2 SATA SSD from the add-in card Removing and replacing the M.2 NVMe SSD from the HPE NS204i-p NVMe OS Boot Device iLO-M.2-serial module spare part Serial port cable spare part Optical drive SATA-power Y-cable spare part 4 LFF / 8 SFF hot-plug drive standup controller Mini‑SAS cable spare part...

  • Page 27: Energy Pack Spare Parts

    For more information on the removal and replacement procedures, see: Removing and replacing the boot device Removing and replacing a boot device drive Storage controller spare parts Storage controller spare parts Customer self repair: Mandatory Mandatory HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 28: Serial Port Cable Spare Part

    For more information on the removal and replacement procedures, see Removing and replacing the serial port cable . Optical drive SATA-power Y-cable spare part Optical drive SATA-power Y-cable spare part Customer self repair: Mandatory Mandatory HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 29: Removal And Replacement Procedures

    Removing and replacing the media bay blank Removing and replacing the media bay blank Removing and replacing the air baffle Removing and replacing the air baffle Media device replacement Media device replacement Fan replacement Fan replacement HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 30: Safety Considerations

    This type of damage may reduce the life expectancy of the system or component. To prevent electrostatic damage: Avoid hand contact by transporting and storing products in static-safe containers. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 31: Symbols On Equipment

    To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel. This symbol indicates the presence of electric shock hazards. The area contains no user or field-serviceable parts. Do not open for any reason. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 32 Hazardous moving parts. Keep away from moving fan blades. To reduce the risk of injury from a hot component, allow the surface to cool before touching. These symbols on power supplies or systems indicate that the equipment is supplied by multiple sources of power. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 33 This symbol indicates the presence of moving parts inside the product that may present a pinch point if improperly contacted. WARNING: WARNING: Hazardous moving parts. Do not insert any tools or any part of your body into the product while it is operating or in any openings. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 34: Rack Warnings And Cautions

    Be sure sufficient clearance exists for cabling, installation and removal of the server, and movement of the rack doors. Server warnings and cautions Server warnings and cautions HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 35: Preparation Procedures

    Server data backup Remove the front bezel Remove the front bezel Power down the server Power down the server Remove the server from the rack Remove the server from the rack HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 36: Remove The Front Bezel

    Customer iLO user name, password, and DNS name iLO configuration settings For servers managed by HPE GreenLake for Compute Ops Management , make sure that you have your HPE GreenLake account ID. For more information, see HPE HPE GreenLake for Compute Ops Management Getting Started Guide GreenLake for Compute Ops Management Getting Started Guide .

  • Page 37: Power Down The Server

    Before you perform this procedure, review the: Rack warnings and cautions Server warnings and cautions A fully populated chassis is heavy. Hewlett Packard Enterprise recommends removing the external chassis components before removing HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 38 Loosen the server tray thumbscrews (callout 1). b. Grasp the tray notch and slide the server out of the rack (callout 2). 6. Remove the server from the tray. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 39: Remove The Access Panel

    Procedure Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 40 5. Remove the access panel: a. Loosen the access panel thumbscrew (callout 1). b. Slide the access panel toward the rear panel, and then lift it away from the chassis (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 41: Remove The Air Baffle

    6. Remove the air baffle: a. Lift the front end of the baffle from the chassis (callout 1). b. Remove the baffle tabs from its rear chassis slots (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 42: Remove The Pci Blank Retainer

    Remove the PCI blank retainer Procedure Procedure 1. Loosen the retainer thumbscrew. 2. Slide the retainer up, and then remove it from the chassis. Remove a media drive Remove a media drive HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 43 RDX drive power and USB cables Optical drive SATA-power Y-cable 8. Pull and hold the drive release latch (callout 1), and then slide the media drive out of the bay (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 44: Power Up The Server

    Removing and replacing the front bezel About this task About this task Procedure Procedure 1. Unlock the front bezel. 2. Open the front bezel. 3. Pull the front bezel away from the chassis. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 45: Drive Replacement

    To prevent damage, observe antistatic precautions. Procedure Procedure 1. Back up all server data on the drive . 2. Remove the front bezel . 3. Power down the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 46 If the server is in rack mode, remove the server from the rack . 7. Remove the access panel . 8. Disconnect the drive power and SATA cables. 9. Remove the non-hot-plug drive cage. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 47 To replace the component, reverse the removal procedure. Removing and replacing a hot-plug LFF SAS or SATA drive Removing and replacing a hot-plug LFF SAS or SATA drive About this task About this task HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 48 To replace the component, reverse the removal procedure. Removing and replacing a hot-plug SFF SAS or SATA drive Removing and replacing a hot-plug SFF SAS or SATA drive About this task About this task HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 49 About this task CAUTION: CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank. Procedure Procedure HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 50: Power Supply Replacement

    Removing and replacing a Flexible Slot power supply Removing and replacing a Flexible Slot power supply Removing and replacing the non-hot-plug power supply Removing and replacing the non-hot-plug power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 51: Power Supply Warnings And Cautions

    1. If the server is using a single power supply, remove all power from the server: a. Back up all server data. b. Power down the server. c. Disconnect the power cord from the power supply. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 52 Release the power cord from the strain relief strap. b. Disconnect the power cord from the power supply. c. Press and hold the release lever, and then slide the power supply out of the bay. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 53: Removing And Replacing The Non-Hot-Plug Power Supply

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 54 8. Remove the non-hot-plug power supply: a. Remove the power supply screws (callout 1). b. Press and hold the release latch (callout 2), and then remove the power supply (callout 3). Results Results HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 55: Removing And Replacing The 4 Lff Drive Backplane

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 56 7. Remove the access panel . 8. Disconnect the drive power and onboard SATA cables from the drive backplane. 9. Remove the 4 LFF drive cage. 10. Remove the 4 LFF drive backplane. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 57: Removing And Replacing The 8 Sff Drive Backplane

    Handle the PCA only along the edges. Do not touch the components and connectors on the PCA. Do not bend or flex the PCA. Procedure Procedure 1. Power down the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 58 6. Remove all drives . 7. Remove the access panel . 8. Disconnect the drive power and onboard SATA cables from the drive backplane. 9. Remove the 8 SFF drive cage. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 59: Removing And Replacing The Power Supply Blank

    WARNING: WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply, power supply blank, or dual slot power supply adapter to cool before touching it. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 60 3. Disconnect all peripheral cables from the server. 4. Remove the front bezel . 5. Press and hold the latch (callout 1), and then pull out the blank from the bay (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 61: Removing And Replacing The Air Baffle

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 62 Lift the front end of the baffle from the chassis (callout 1). b. Remove the baffle tabs from its rear chassis slots (callout 2). Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 63: Removing And Replacing A Sas Lto Tape Drive

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 64 7. Disconnect the drive power and SAS cables . 8. Pull up and hold the release latch (callout 1), and then remove the LTO tape drive (callout 2). Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 65 If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. If the server is in rack mode, remove the server from the rack . 5. Remove the front bezel . 6. Remove the access panel . HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 66: Removing And Replacing An Optical Drive

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 67 7. Disconnect the power and SATA cables . 8. Pull up and hold the release latch (callout 1), and then remove the optical drive assembly (callout 2). Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 68: Fan Replacement

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 69: Removing And Replacing The System Fan

    Removing and replacing the system fan Removing and replacing the system fan Prerequisites Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available. About this task About this task HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 70 5. Remove the access panel . 6. Disconnect the system fan cable . 7. Remove the system fan: a. Remove the fan screws (callout 1). b. Remove the fan from the chassis (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 71: Removing And Replacing A Dimm

    Do not touch the components and connectors on the PCA. Do not bend or flex the PCA. Procedure Procedure 1. Power down the server. 2. Remove all power: a. Disconnect each power cord from the power source. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 72 If the server is in rack mode, remove the server from the rack . 5. Remove the access panel . 6. Remove the DIMM. a. Open the DIMM slot latches (callout 1). b. Lift the DIMM out of the slot (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 73: Heatsink Replacement

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 74 Use a T-15 Torx screwdriver to loosen one pair of diagonally opposite screws, and then loosen the other pair of screws (callouts 2 and 3). c. Lift the heatsink away from the system board (callout 4). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 75: Installing The Heatsink

    1. Use an alcohol wipe to remove the existing thermal grease from the processor. Allow the alcohol to evaporate before continuing. 2. Remove the thermal interface protective cover from the new heatsink. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 76 Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws (callout 2 and 3). When using a torque screwdriver, apply 0.68 N⋅m (6.0 lbf-in) of torque to completely tighten the screws. c. Connect the heatsink fan cable (callout 4). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 77 6. Connect all peripheral cables to the server. 7. Connect each power cord to the server. 8. Connect each power cord to the power source. 9. Power up the server. Results Results HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 78: Processor Replacement

    About this task CAUTION: CAUTION: A discharge of static electricity from a finger or other conductor might damage system boards or other static-sensitive devices. To prevent damage, observe antistatic precautions. Procedure Procedure HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 79 Disconnect the heatsink fan cable (callout 1). b. Use a T-15 Torx screwdriver to loosen one pair of diagonally opposite screws, and then loosen the other pair of screws (callouts 2 HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 80 Push the hinge lever down to unclamp it, and then pivot it to the vertical position (callout 1). b. Open the processor load plate (callout 2). 10. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 81 11. Hold the processor by the edges, and then lift it out of the socket. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 82 Insert the alignment tabs of the socket cover to the back of the processor load plate (callout 1). c. Press the cover down until it clicks into place (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 83: Installing The Processor

    THE PINS ON THE PROCESSOR SOCKET AND ON THE PROCESSOR ARE VERY FRAGILE AND EASILY DAMAGED. Any damage to them might require replacing the system board. Procedure Procedure 1. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 84 Pin 1 indicator on the processor and the socket b. Lower the processor straight down, without tilting or sliding the processor in the socket. Make sure that the processor is properly seated in the socket. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 85 3. Close the processor load plate (callout 1), and then engage the hinge lever (callout 2). 4. Apply new thermal grease to the processor in the pattern shown in the following image to ensure even distribution. Use the full contents of the thermal grease syringe. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 86 Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws (callout 2 and 3). When using a torque screwdriver, apply 0.68 N⋅m (6.0 lbf-in) of torque to completely tighten the screws. c. Connect the heatsink fan cable (callout 4). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 87 8. Connect all peripheral cables to the server. 9. Connect each power cord to the server. 10. Connect each power cord to the power source. 11. Power up the server. Results Results HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 88 3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 89 8. Remove the PCI blank retainer. 9. Remove the expansion card. Results Results To replace the component, reverse the removal procedure. Removing and replacing the energy pack Removing and replacing the energy pack HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 90 Press and hold the rear latch (callout 2), and then lift the rear end of the energy pack from the holder (callout 3). c. Remove the energy pack from the holder (callout 4). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 91: Removing And Replacing The Energy Pack Holder

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 92 8. Remove the energy pack holders: a. Push the latches inwards to release the holders on the bottom of the chassis. b. Remove the energy pack holders from the chassis. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 93: Removing And Replacing An M.2 Ssd

    2. Power down the server. 3. Remove all power: a. Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 4. Disconnect all peripheral cables from the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 94 If the server is in rack mode, remove the server from the rack . 6. Remove the access panel . 7. Remove the air baffle . 8. Remove the M.2 SSD. Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 95 4. Disconnect all peripheral cables from the server. 5. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 96 8. If installed, disconnect the serial port cable from the module . 9. If installed, remove the M.2 SSD . 10. Remove the iLO-M.2-serial module: a. Remove the module stabilizer. b. Remove the module screw (callout 1). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 97 Removing and replacing the M.2 SATA SSD add in card Prerequisites Prerequisites Before you perform this procedure, make sure that you have a Phillips No. 1 screwdriver available. About this task About this task HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 98 If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. If the server is in rack mode, remove the server from the rack . 6. Remove the access panel . 7. If installed, remove the air baffle . HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 99 To replace the component, reverse the removal procedure. Removing and replacing the M.2 SATA SSD on the add‑in card Removing and replacing the M.2 SATA SSD on the add in card Prerequisites Prerequisites HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 100 If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. If the server is in rack mode, remove the server from the rack . HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 101 11. Remove the M.2 SATA SSDs from the add-in card. Results Results To replace the component, reverse the removal procedure. HPE NS204i-p NVMe OS Boot Device NS204i-p NVMe OS Boot Device replacement replacement HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 102 4. Disconnect all peripheral cables from the server. 5. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 103 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Remove the PCI blank retainer. 9. Remove the boot device. 10. Remove the M.2 NVMe SSDs from the boot device. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 104 Do not touch the components and connectors on the PCA. Do not bend or flex the PCA. Procedure Procedure 1. Back up all server data. 2. Power down the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 105 If the server is in rack mode, remove the server from the rack . 6. Remove the access panel . 7. If installed, remove the air baffle . 8. Remove the PCI blank retainer. 9. Remove the boot device. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 106 Relocating the M.2 drive retaining latches Relocating the M.2 drive retaining latches Procedure Procedure 1. If your spare kit includes an 80 mm replacement drive, remove the retaining latch from its current location. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 107: Removing And Replacing An Internal Usb Device

    2. Install the retaining latch at the 80 mm drive location. Removing and replacing an internal USB device Removing and replacing an internal USB device Procedure Procedure 1. Power down the server. 2. Remove all power: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 108 If the server is in rack mode, remove the server from the rack . 5. Remove the access panel . 6. Unplug the USB device from the USB port. Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 109: Removing And Replacing The Front I/O Assembly

    If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. If the server is in rack mode, remove the server from the rack . 5. Remove the access panel . 6. If installed, remove the air baffle . HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 110 11. Press the latches of the I/O assembly holder from inside of the chassis (callout 1), and then pull the the I/O front cable assembly from the front panel (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 111 Removing and replacing the front USB cable Prerequisites Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available. About this task About this task HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 112 8. Disconnect the front USB ports from the system board . 9. Remove the front USB cable screws (callout 1), and then remove the cable from the front panel (callouts 2 and 3). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 113: Removing And Replacing The Serial Port Cable

    3. Disconnect all peripheral cables from the server. 4. Do one of the following: If the server is in tower mode, place the server on a flat, level surface with the access panel facing up. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 114 7. Remove the serial port: a. Remove the hex screws (callout 1). b. Detach the serial port from the rear panel (callout 2). Results Results To replace the component, reverse the removal procedure. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 115: Removing And Replacing The Serial Port Blank

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Remove the iLO dedicated network port blank: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 116: Removing And Replacing The Power Distribution Board

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Do one of the following: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 117 6. If installed, remove all media drives . 7. Remove all power supplies . 8. Disconnect the RPS cables . 9. Remove the RPS cage. 10. Remove the power distribution board. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 118: System Battery Replacement

    Do not expose the battery to extremely low air pressure as it might lead to explosion or leakage of flammable liquid or gas. Do not disassemble, crush, puncture, short external contacts, or dispose the battery in fire or water. Removing and replacing the system battery Removing and replacing the system battery HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 119 6. If installed, remove the air baffle . 7. Locate the battery on the system board . 8. If an expansion card installed on the expansion slot 2 blocks access to the system battery, remove the card. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 120 With the side of the battery showing the "+" sign facing up, insert the battery into the socket (callout 1). b. Press the system battery down until it clicks into place (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 121 14. Connect all peripheral cables to the server. 15. Connect each power cord to the server. 16. Connect each power cord to the power source. 17. Power up the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 122: System Board Replacement

    Disconnect each power cord from the power source. b. Disconnect each power cord from the server. 3. Disconnect all peripheral cables from the server. 4. Do one of the following: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 123 Do not touch the heatsink fins. CAUTION: CAUTION: The heatsink fan does not have a fan guard. Special attention is needed when removing or installing the heatsink to prevent finger injury. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 124 13. Open the processor load plate: a. Push the hinge lever down to unclamp it, and then pivot it to the vertical position (callout 1). b. Open the processor load plate (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 125 14. Do not touch the socket contacts or the bottom of the processor. 15. Hold the processor by the edges, and then lift it out of the socket. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 126: Installing The System Board

    Before you perform this procedure, make sure that you have the following items available: T-15 Torx screwdriver 1.0 gm (0.5 ml) or two 0.5 gm (0.25 ml) of thermal grease HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 127 Procedure 1. Position the system board over te alignment tabs on the chassis. 2. Install the system board (callout 1), and then secure the board with the screws (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 128 Retain the cover for future use. 4. Open the processor load plate: a. Push the hinge lever down to unclip, and then lift it upwards (callout 1). b. Open the processor load plate (callout 2). HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 129 5. Do not touch the socket contacts or the bottom of the processor. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 130 Pin 1 indicator on the processor and the socket b. Lower the processor straight down, without tilting or sliding the processor in the socket. Make sure that the processor is properly seated in the socket. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 131 To prevent mechanical damage or depositing oil on your hands or other contaminant to the heatsink contact surface, hold the heatsink only by the edge of its base plate. Do not touch the heatsink fins. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 132 10. Install all removed components on the new system board. 11. If removed, install the air baffle. 12. Install the access panel. 13. Do one of the following: Orient the server back in tower mode. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 133: Re-Entering The Server Serial Number And Product Id

    3. Select Serial Number, and then press Enter Enter. The following warning appears: The serial number is modified by qualified service personnel and must match the serial number located on the chassis. 4. Click OK. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 134: Troubleshooting

    To force the OS to initiate the NMI handler and generate a crash dump log, the administrator can use the iLO Generate NMI feature. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 135: Troubleshooting Resources

    Error Message Guide for HPE ProLiant Gen10 Plus servers and HPE Synergy provides a list of error messages and information to assist with interpreting and resolving error messages.
  • Page 136 Monitor server compliance with a configured firmware baseline Receive automatic iLO firmware updates Receive baseline update alerts Configuring the server Configuring the server HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 137 For servers running HPE OneView, do not use another tool, such as iLO, to delete or change certain settings. For more information about using HPE OneView and iLO to manage the same server, see the iLO user guide at https://www.hpe.com/support/ilo5 https://www.hpe.com/support/ilo5.

  • Page 138: Configuring Security

    OS-specific Intel VROC user guide https://www.hpe.com/support/IntelVROC-Gen10Plus-docs https://www.hpe.com/support/IntelVROC-Gen10Plus-docs Deploying an OS Deploying an OS For a list of supported operating systems, see the HPE Servers Support & Certification Matrices: https://www.hpe.com/support/Servers-Certification-Matrices https://www.hpe.com/support/Servers-Certification-Matrices Configure the server to boot from a SAN HPE Boot from SAN Configuration Guide https://www.hpe.com/info/boot-from-san-config-guide...

  • Page 139: Server Management

    Multiple servers HPE OneView https://www.hpe.com/support/oneview-docs https://www.hpe.com/support/oneview-docs Single or multiple servers HPE GreenLake for Compute Ops Management https://www.hpe.com/info/com-docs https://www.hpe.com/info/com-docs Managing Linux-based high performance compute clusters Managing Linux-based high performance compute clusters HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 140: Component Identification

    Fan mode behavior Fan mode behavior Media device screws Media device screws Trusted Platform Module 2.0 Trusted Platform Module 2.0 Front panel components Front panel components LFF drive models LFF drive models HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 141 Media bay 1 supports a SATA optical drive, SAS LTO drive, or a USB RDX docking station. Media bay 2 supports a SATA optical drive or a USB RDX docking station. SFF drive model SFF drive model HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 142 Media bay 1 supports a SATA optical drive, SAS LTO drive, or a USB RDX docking station. Media bay 2 supports a SATA optical drive or a USB RDX docking station. Front panel LED and button Front panel LED and button HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 143: Front Panel Led Power Fault Codes

    When the two LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see Front panel LED power fault codes. If the health LED indicates a degraded or critical state, review the system Integrated Management Log (IML) or use HPE iLO to review the system health status.

  • Page 144: Rear Panel Components

    Storage backplane 9 flashes Power supply 10 flashes PCIe expansion cards installed in riser board 11 flashes Chassis 12 flashes GPU card 13 flashes Rear panel components Rear panel components HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 145: Rear Panel Leds

    (optional) NIC port 2 (1 GbE) USB 3.0 ports NIC 1 / iLO shared port (1 GbE) Video port Serial port (optional) Rear panel LEDs Rear panel LEDs HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 146: System Board Components

    The front I/O cable is disconnected. NIC/iLO link Solid green Network link No network link NIC/iLO status Solid green Linked to network Flashing green Network active No network activity System board components System board components HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 147: System Maintenance Switch Descriptions

    Subtopics Subtopics System maintenance switch descriptions System maintenance switch descriptions DIMM slot location DIMM slot location DIMM label identification DIMM label identification System maintenance switch descriptions System maintenance switch descriptions HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 148: Dimm Slot Location

    When the system maintenance switch position 6 is set to the On position and Secure Boot is enabled, some configurations cannot be restored. For more information, see Configuring the server. DIMM slot location DIMM slot location The arrow points to the front of the server. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 149: Dimm Label Identification

    To determine DIMM characteristics, see the label attached to the DIMM. The information in this section helps you to use the label to locate specific information about the DIMM. For more information about product features, specifications, options, configurations, and compatibility, see the HPE DDR4 SmartMemory QuickSpecs on the Hewlett Packard Enterprise website (https://www.hpe.com/support/DDR4SmartMemoryQS https://www.hpe.com/support/DDR4SmartMemoryQS).

  • Page 150: Drive Bay Numbering

    4 LFF hot-plug drive numbering In the 4 LFF hot-plug drive configuration: SAS and SATA drives are supported. Onboard connection for Intel VROC SATA RAID support is through the SATA ports 1–4. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 151 Onboard connection for Intel VROC SATA RAID support is through the SATA ports 1–4. Only SATA drives 1–4 are covered in the software RAID. HPE Basic Drive LED definitions Basic Drive LED definitions The HPE Basic drive carrier has the following LEDs: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 152 The LFF low-profile drive carrier supports hot-plug SAS and SATA drives . SFF basic drive carrier basic drive carrier The SFF basic drive carrier supports hot-plug SAS and SATA drives . HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 153 The drive is operating normally and has activity. per second) The drive is not configured by a RAID controller or is a spare drive. PCIe4 slot description PCIe4 slot description HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 154: Pcie Expansion Slot Definitions

    75 W Full-height, full-length PCIe3 x8 (4, 1) 25 W Full-height, half- length PCIe3 x16 (4, 1) 75 W Full-height, full-length PCIe3 x8 (4, 1) 25 W Full-height, half- length HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 155 NS204i-p NVMe OS Boot Device LED definitions LED definitions Item Item Description Fault LED status Description Fault LED status Bay 1 LED Off: Normal Flashing 1Hz: Drive predictive failure Bay 2 LED Amber: Drive failure HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 156: Fan Numbering

    The operating system performs a graceful shutdown. Media device screws Media device screws There are eight T-15 Torx screws on the front panel. These screws are spare screws for installing media devices. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 157: Trusted Platform Module

    The TPM 2.0 is supported with specific operating system support such as Microsoft Windows Server 2012 R2 and later. For more information about operating system support, see the product QuickSpecs on the Hewlett Packard Enterprise website (https://www.hpe.com/info/qs https://www.hpe.com/info/qs). For more information about Microsoft Windows BitLocker Drive Encryption feature, see the Microsoft website (https://www.microsoft.com https://www.microsoft.com).
  • Page 158 Recovery Mode after BitLocker detects a possible compromise of system integrity. HPE is not liable for blocked data access caused by improper TPM use. For operating instructions, see the documentation for the encryption technology feature provided by the operating system.

  • Page 159: Cabling Guidelines

    Grip the body of the cable connector. Do not pull on the cable itself because this action can damage the internal wires of the cable or the pins on the port. If a cable does not disconnect easily, check for any release latch that must be pressed to disconnect the cable. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 160: Storage Cabling

    Subtopics Subtopics Storage controller cabling Storage controller cabling Drive power cabling Drive power cabling Energy pack cabling Energy pack cabling Storage controller backup power cabling Storage controller backup power cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 161: Storage Controller Cabling

    4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling 4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling The onboard SATA cabling for the 4 LFF and 8 SFF drive configurations use a single Mini-SAS splitter cable. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 162 Onboard SATA port 2 4 LFF hot-plug drive: Type-p controller cabling 4 LFF hot-plug drive: Type-p controller cabling 8 SFF hot-plug drive: Type-p controller cabling 8 SFF hot-plug drive: Type-p controller cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 163: Drive Power Cabling

    Drive power cabling Drive power cabling 4 LFF non-hot plug drive power cabling from the non-hot-plug power supply 4 LFF non-hot plug drive power cabling from the non-hot-plug power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 164 Blue SATA-power splitter cable 4 LFF / 8 SFF hot-plug drive cabling from the non-hot-plug power supply 4 LFF / 8 SFF hot-plug drive cabling from the non-hot-plug power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 165 Flexible Slot power supply The orange cable in the following diagram is the drive power cable (BP PWR) from the Flexible Slot power fan-out cable . Energy pack cabling Energy pack cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 166: Storage Controller Backup Power Cabling

    Optical drive cabling Optical drive cabling LTO tape drive cabling LTO tape drive cabling LTO tape drive cabling with non-hot-plug power supply LTO tape drive cabling with non-hot-plug power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 167 SAS connector of the LTO tape drive SAS-power Y-cable Blue LTO/RDX power extension cable LTO tape drive cabling with Flexible Slot power supply LTO tape drive cabling with Flexible Slot power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 168 P9 / P10 connector of the non-hot-plug power supply fan-out cable Blue LTO/RDX power extension cable Gold RDX USB cable RDX backup system cabling with Flexible Slot power supply RDX backup system cabling with Flexible Slot power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 169: Optical Drive Cabling

    P4 / P2 connector of the Flexible Slot power fan-out cable Blue RDX USB cable Optical drive cabling Optical drive cabling Optical drive cabling with non-hot-plug power supply Optical drive cabling with non-hot-plug power supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 170 ODD PWR connector of the Flexible Slot power fan-out cable Blue Power connector of the SATA-power Y-cable Gold SATA connector of the SATA-power Y-cable M.2 SATA SSD add-in card cabling M.2 SATA SSD add-in card cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 171: Fan Cabling

    Fan cabling Fan cabling Subtopics Subtopics PCI fan cabling PCI fan cabling System fan cabling System fan cabling Heatsink fan cabling Heatsink fan cabling PCI fan cabling PCI fan cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 172 System fan cabling System fan cabling Heatsink fan cabling Heatsink fan cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 173: Serial Port Cabling

    To prevent the serial port cable from blocking the system fan airflow, route the cable beneath the fan, and then secure the extra length of the cable in the serial port cable clip. Front I/O cabling Front I/O cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 174: Power Supply Cabling

    Flexible Slot power supply cabling Flexible Slot power supply cabling Non-hot-plug power supply cabling Non-hot-plug power supply cabling The gray cable in the following diagram is the power fan-out cable. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 175 Connection Connects to the optical drive Connects to the LTO/RDX power extension cable Connects to the LTO/RDX power extension cable Flexible Slot power supply cabling Flexible Slot power supply cabling HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 176 Description Orange 24-pin power supply cable Blue 4-pin power supply cable Gold Flexible Slot power supply sideband cable Flexible Slot power fan-out cable connectors Flexible Slot power fan-out cable connectors HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 177: Environmental Specifications

    10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr​ (36°F/hr). The upper limit and rate of HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 178: Mechanical Specifications

    HPE 350 W Platinum Non-hot-plug Power Supply (94% efficiency) HPE 350 W Platinum Non-hot-plug Power Supply (94% efficiency) HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply...
  • Page 179 385 W at 115 VAC 385 W at 230 VAC Rated output power 350 W HPE 350 W Platinum Non-hot-plug Power Supply (94% efficiency) 350 W Platinum Non-hot-plug Power Supply (94% efficiency) HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 180 385 W at 230 VAC Rated output power 350 W HPE 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply 500 W Flex Slot Platinum Hot-plug Low Halogen Power Supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
  • Page 181 500 W at 100 VAC to 240 VAC input 500 W at 240 VDC input for China only HPE 800 W Flex Slot Titanium Hot-plug Low Halogen Power Supply 800 W Flex Slot Titanium Hot-plug Low Halogen Power Supply HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 182: Support And Other Resources

    Product websites HPE ProLiant ML30 Gen10 Plus Server product page https://www.hpe.com/servers/ml30-gen10-plus https://www.hpe.com/servers/ml30-gen10-plus HPE ProLiant ML30 Gen10 Plus Server user documents https://www.hpe.com/info/ml30gen10plus-docs https://www.hpe.com/info/ml30gen10plus-docs Support and other resources Support and other resources HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 183: Accessing Hewlett Packard Enterprise Support

    Accessing updates Some software products provide a mechanism for accessing software updates through the product interface. Review your product documentation to identify the recommended software update method. To download product updates: HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...

  • Page 184: Remote Support

    IMPORTANT: IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HPE Onepass set up with relevant entitlements. Remote support Remote support Remote support is available with supported devices as part of your warranty or contractual support agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which initiates a fast and accurate resolution based on the service level of your product.

  • Page 185: Regulatory Information

    Feedback button and icons (located at the bottom of an opened document) on the Hewlett Packard Enterprise Support Center portal (https://www.hpe.com/support/hpesc https://www.hpe.com/support/hpesc) to send any errors, suggestions, or comments. All document information is captured by the process. HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide...
