Orientation

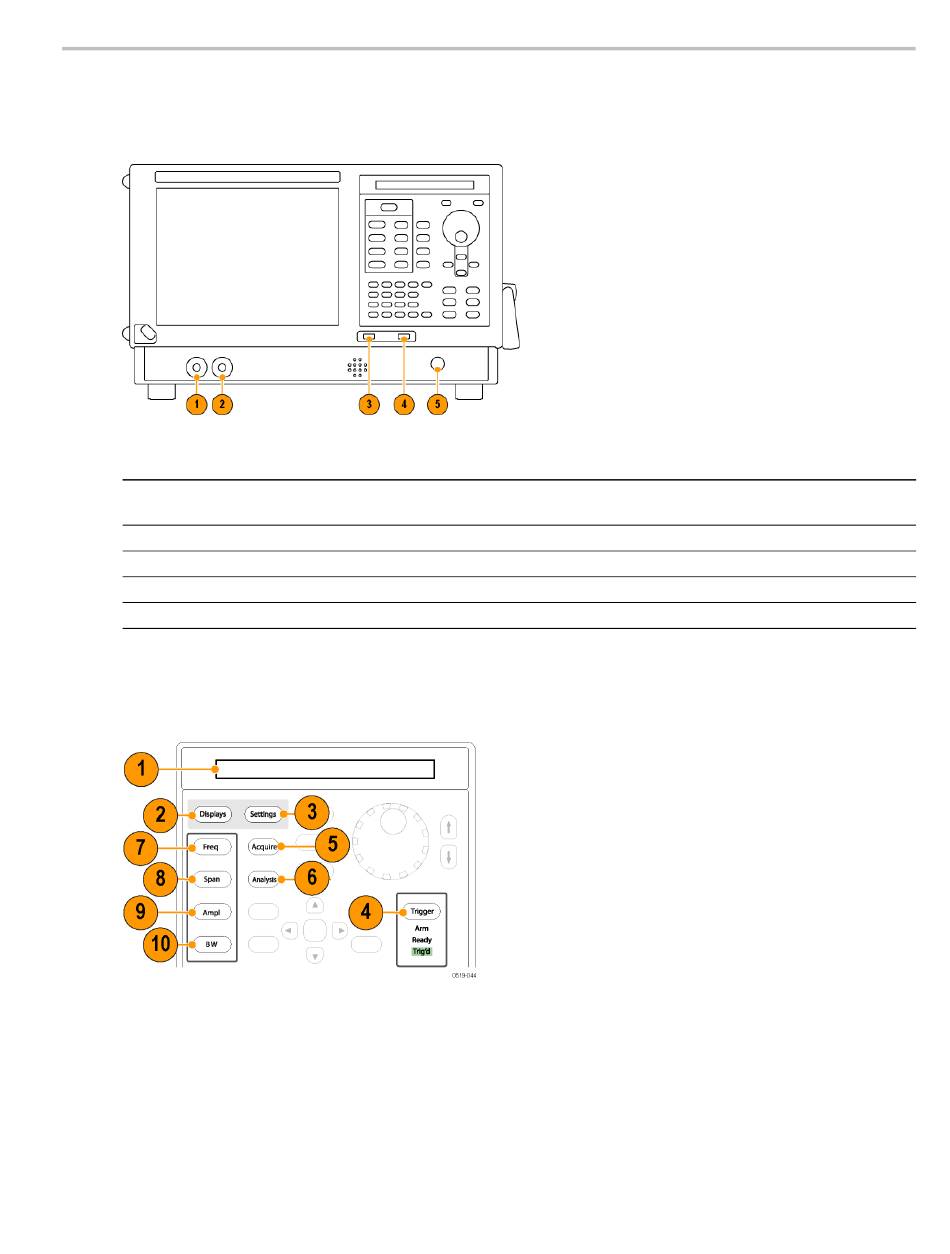

Front Panel Connectors

Item Connector
1 Trig Out
2 Trig In
3 USB 2.0
4
USB 2.0
5 RF Input
xxx

Front-Panel Controls

SPECMON3 & SPECMON6 Printable Help
Description
Trigger output connector. 50 Ω, BNC, High > 2.0 V, Low < 0.4 V, (output
current 1 mA).
External Trigger input connector, –2.5 V to +2.5 V (user settable).
USB 2.0 connector.
USB 2.0 connector.
RF input connector 50 Ω.
Front Panel Connectors
