Marker Measurements

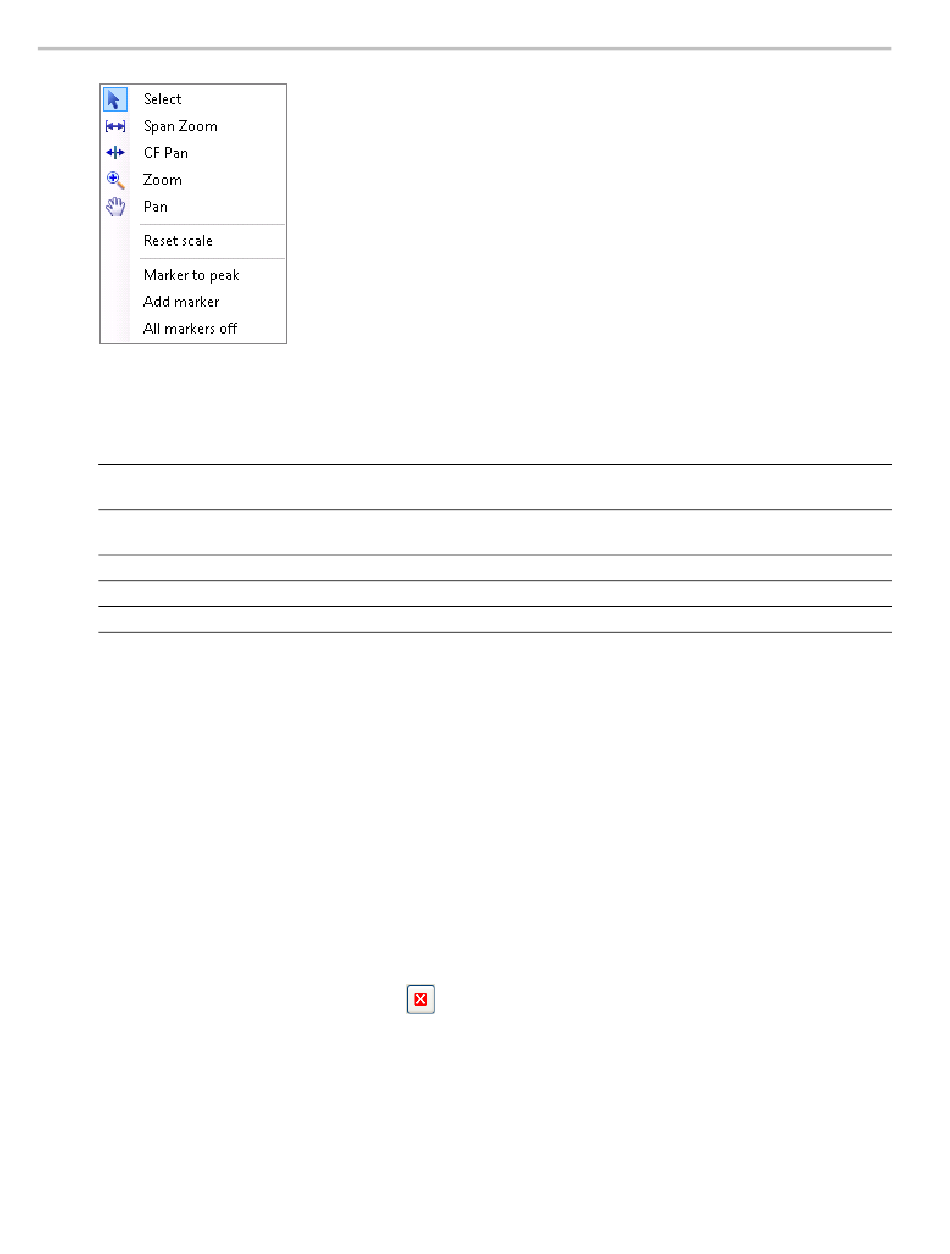

To use the Touchscreen Actions menu, touch the display and hold for one second, then remove your finger.
You can also use a mouse to display the Touchscreen Action menu by clicking the right mouse button.
Menu item
Marker to peak
Next Peak
Add marker
Delete marker
All markers off
xxx

Measuring Signal Density, Frequency and Power on a DPX Bitmap Trace

To measure the signal density, frequency and power at a point on a DPX Bitmap trace:
1. Select Markers > Define Markers.
2. Select the Marker Properties tab.
3. Click Add. This displays a drop-down list under MR (Marker Reference), found inside the Reference
box. The first marker defined is always designated the Marker Reference. Subsequently defined
markers are designated as Delta Markers (you can also select and adjust markers by clicking on an
existing marker on a trace).
4. From the drop-down list, select Bitmap.
5. Click the close control panel button (
6. Touch or click on the MR marker on the trace to activate the marker.
7. Drag the marker to the desired location on the bitmap.
334
Measuring Signal Density, Frequency and Power on a DPX Bitmap Trace
Description
Moves the selected marker to the highest peak. If no marker is turned on, this control
automatically adds a marker.
Moves the selected marker to the next peak. Choices are Next left, Next right, Next
lower (absolute), and Next higher (absolute).
Defines a new marker located at the horizontal center of the graph.
Removes the last added marker.
Removes all markers.
) to remove the Define Markers control panel.
