Pulsed RF
Settings tab
Measurements (see page 253)
Params (see page 257)
Define (see page 259)
Levels (see page 264)
Freq Estimation (see
page 264)
xxx
Restore defaults.

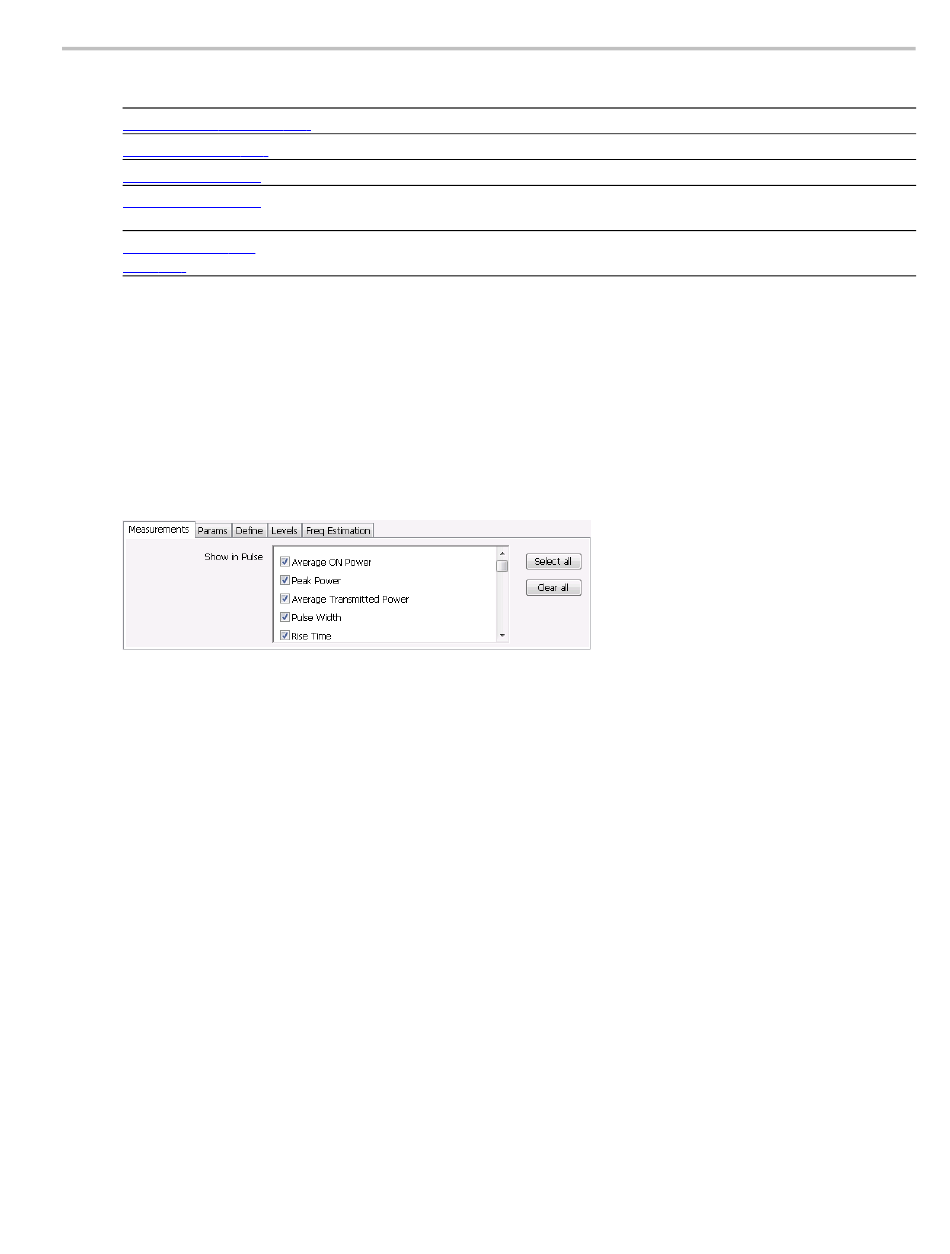

Measurements Tab
The Measurements tab is used to specify the measurements that appear in the Pulse Table.
Show in Pulse
Checked measurements appear in the Pulse Table.
Select all
Click Select all to choose all measurements for display in the Pulse Table.
Clear all
Click Clear all to remove all measurements from the Pulse Table display.

Pulse Trace Display

The Pulse Trace display shows one measurement result and a trace graph illustrating that measurement
for a selected pulse number. You can also choose to display arrows and lines in the graph that illustrate
where on the pulse the measurement is being taken.
SPECMON3 & SPECMON6 Printable Help
Description
Selects the measurements to be show in the Pulse Table.
Specifies several parameters that control how pulses are counted and defined.
Specifies parameters that control where measurements are taken on a pulse.
Specifies parameters that control the method and levels used to calculate some pulse
values.
Specifies the reference used for computing frequency errors.
Sets the Pulse Table parameters to their default values.
Measurements Tab
