Using the Measurement Displays

Selecting Displays

Menu Bar: Setup > Displays
Application Toolbar:

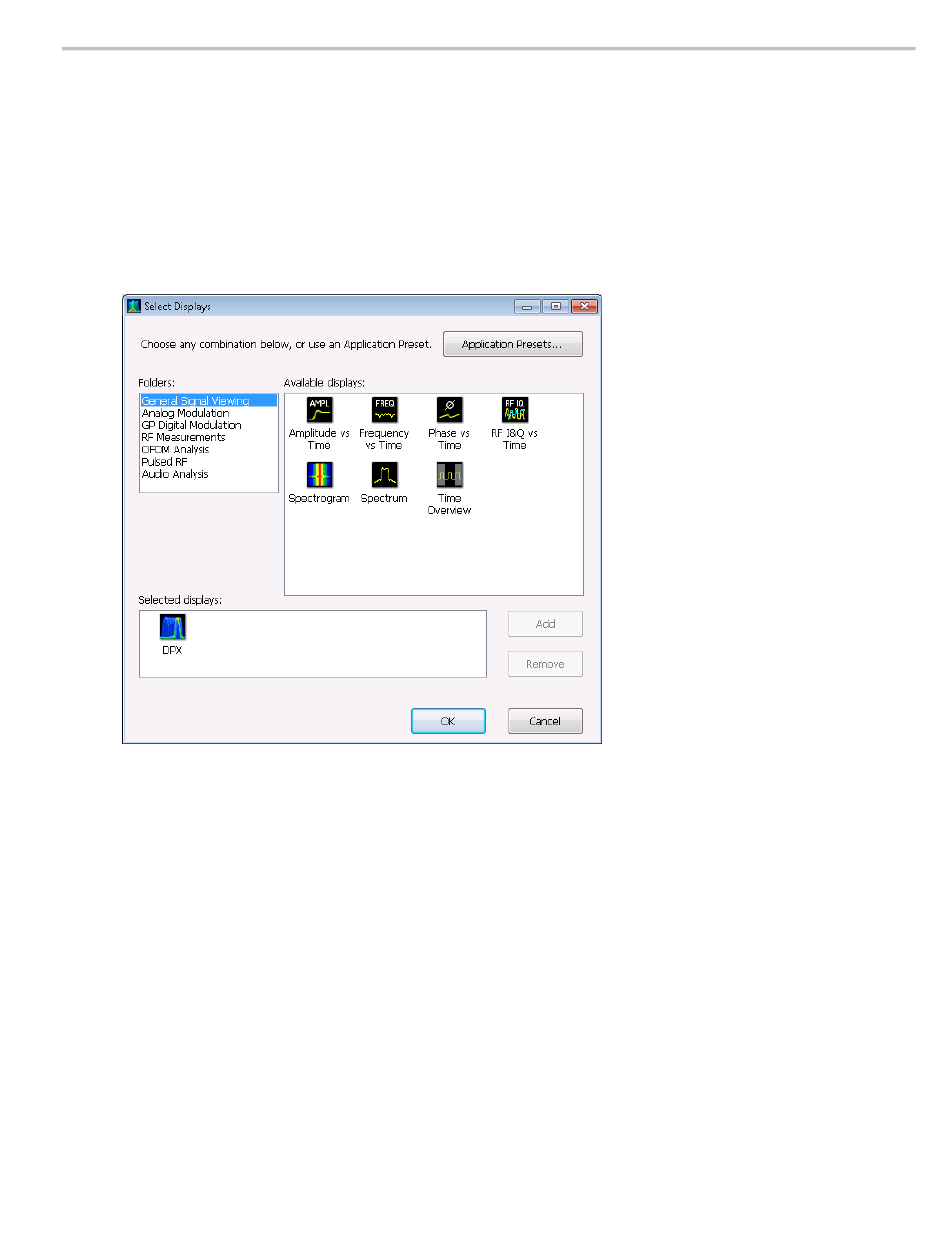

Use the Select Displays dialog to choose the displays that appear on the screen.
To select displays:
1. Press the Displays button or select Setup > Displays.
2. Select one of the choices under Folders. The folder chosen determines the choices available in
Available displays.
3. Double-click the desired display in the Available displays box or select the desired display and
click Add.
4. Click OK.
Interactions Between Displays
Different displays can require different settings, for example acquisition bandwidth, analysis length, or
resolution bandwidth, to achieve optimum results. The application automatically adjusts some settings
to optimize them for the selected display. The check mark indicator in the upper, left-hand corner of the
