RF Measurements

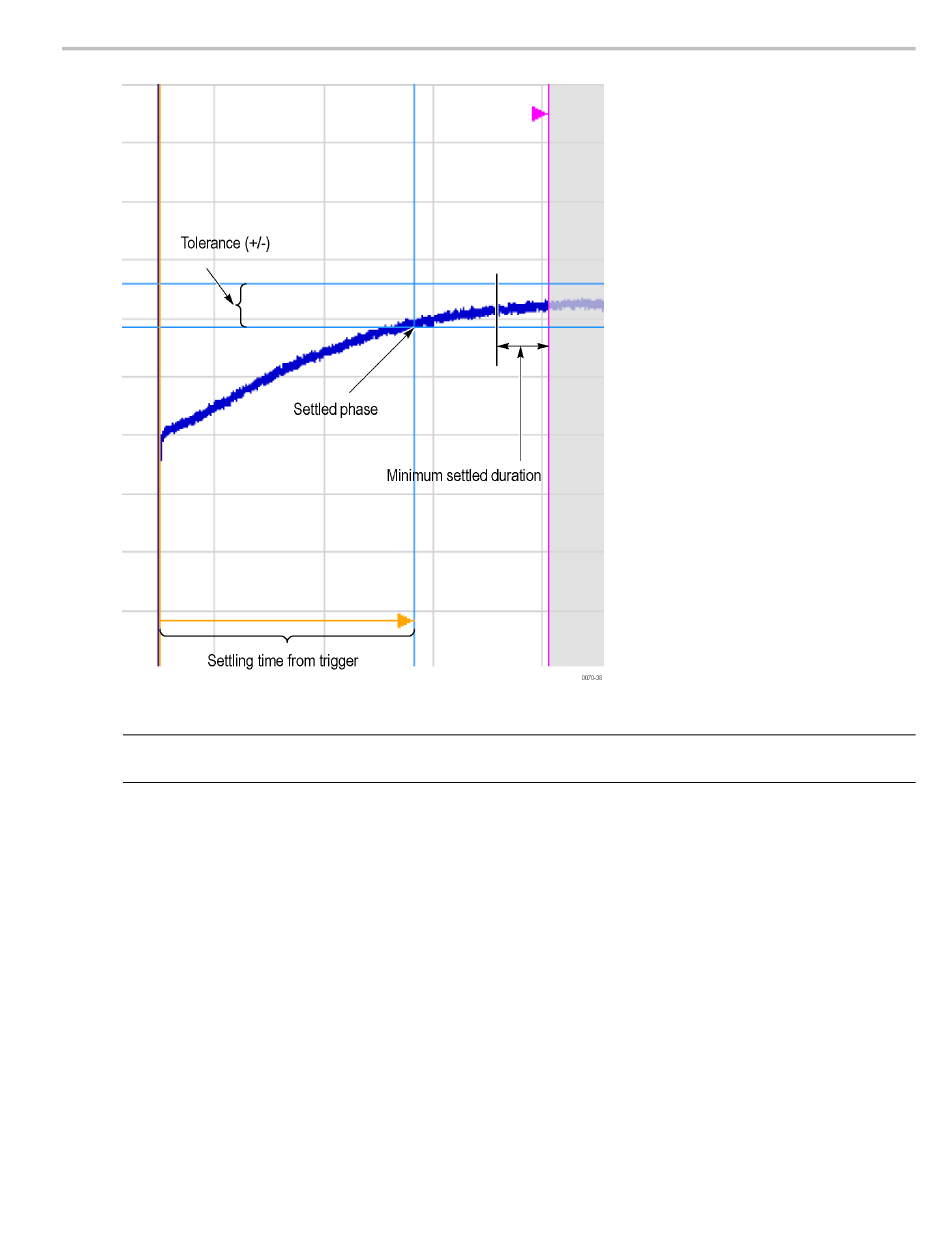

NOTE. The blue vertical bar indicating the measurement start time may not appear. Zero phase is
referenced to the measured hop, as the phase will not typically have a settled value during the previous hop.
Measuring Settling Time
1. Select the Displays button.
2. Select RF Measurements from the Folders box.
3. Double-click the Freq Settling icon or Phase Settling icon in the Available displays box. Click OK
to complete your selection.
4. Select General Signal Viewing from the Folders box.
5. Double-click the Time Overview icon in the Available displays box. Click OK to complete your
selection.
6. Press the front-panel Freq button and use the front-panel keypad or knob to adjust the frequency to
that of the signal you want to measure.
