RF Measurements
to be averaged. Signals that vary in tuning direction will tend to average positive-going effects with
negative-going effects and the settling time characteristics will cancel out.
The range for the Average function is 2–1000. The resolution is 1. When averaging is enabled, it applies
to both traces. Average is turned off by default.
Trace
Selects a trace for display. Choices are Trace 1 and 2. Either trace can be a recalled trace.
Saving Traces
To save a trace for later analysis:

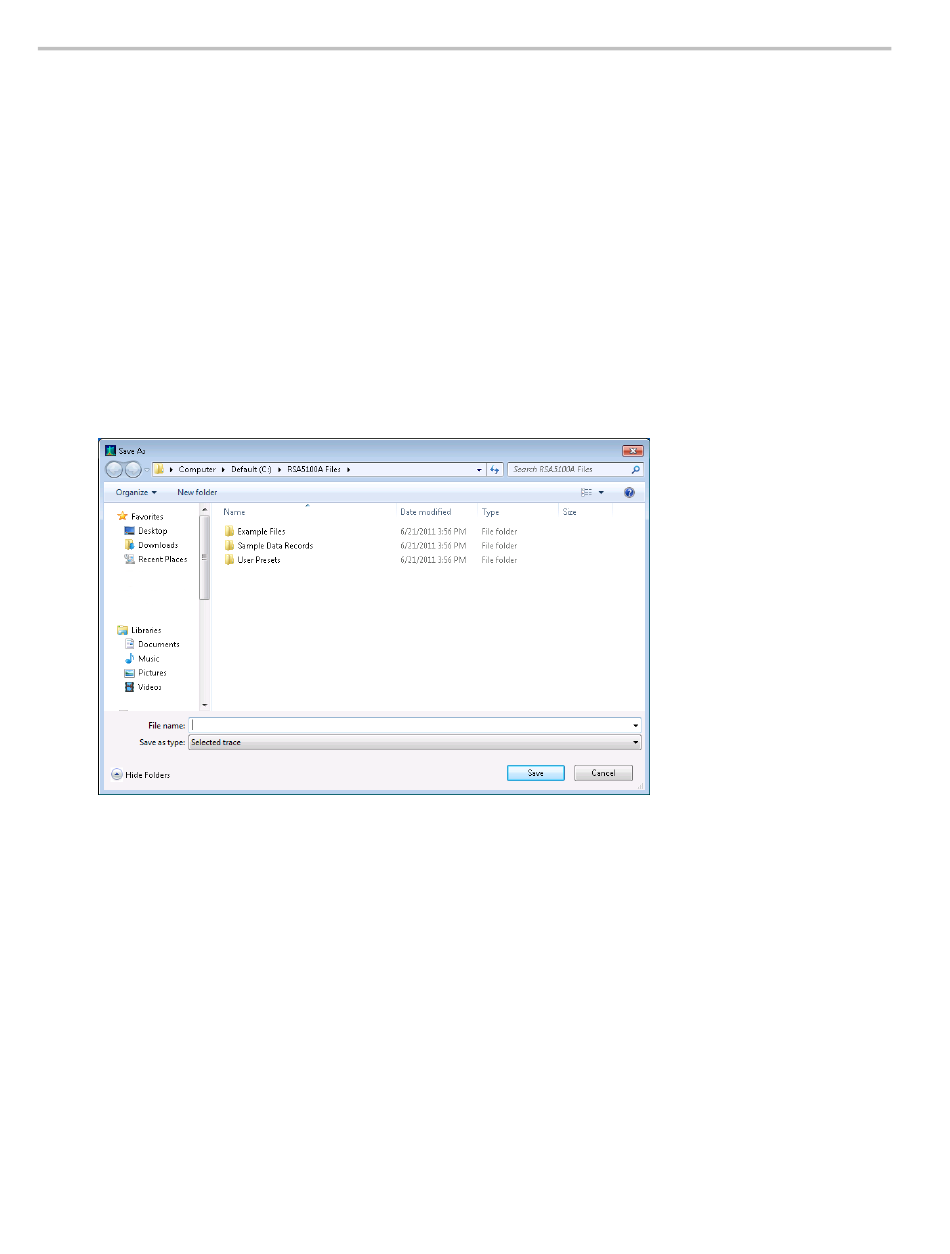

1. Select the Save Trace As button. This displays the Save As dialog box.
2. Navigate to the desired folder or use the default.
3. Type a name for the saved trace and click Save.
Recalling Traces
You can recall a previously saved trace for analysis or comparison to a live trace.
To select a trace for recall:
1. Select the trace into which the recalled trace will be loaded, from the Trace drop-down list.
2. Check the Show check box.
3. Click the ... button to display the Open dialog box.
