Marker Measurements

Using Markers

Markers are indicators in the display that you can position on a trace to measure values for the X and Y
axes, such as frequency, power, and time. A Marker always displays its position and, if enabled, will
display the difference between its position and that of the Marker Reference (MR).
You can display up to five markers including the marker reference. Markers can all be placed on the
same trace or they can be placed on different traces. There are two types of Markers: Reference and
Delta Markers. The Marker Reference (labeled MR in the graph) makes absolute measurements and is
also used for calculating differences when Delta readouts are enabled. The Delta Markers (labeled M1
to M4 in the graph) are used to measure other points on the trace or the difference between the Marker
Reference and the Delta marker.

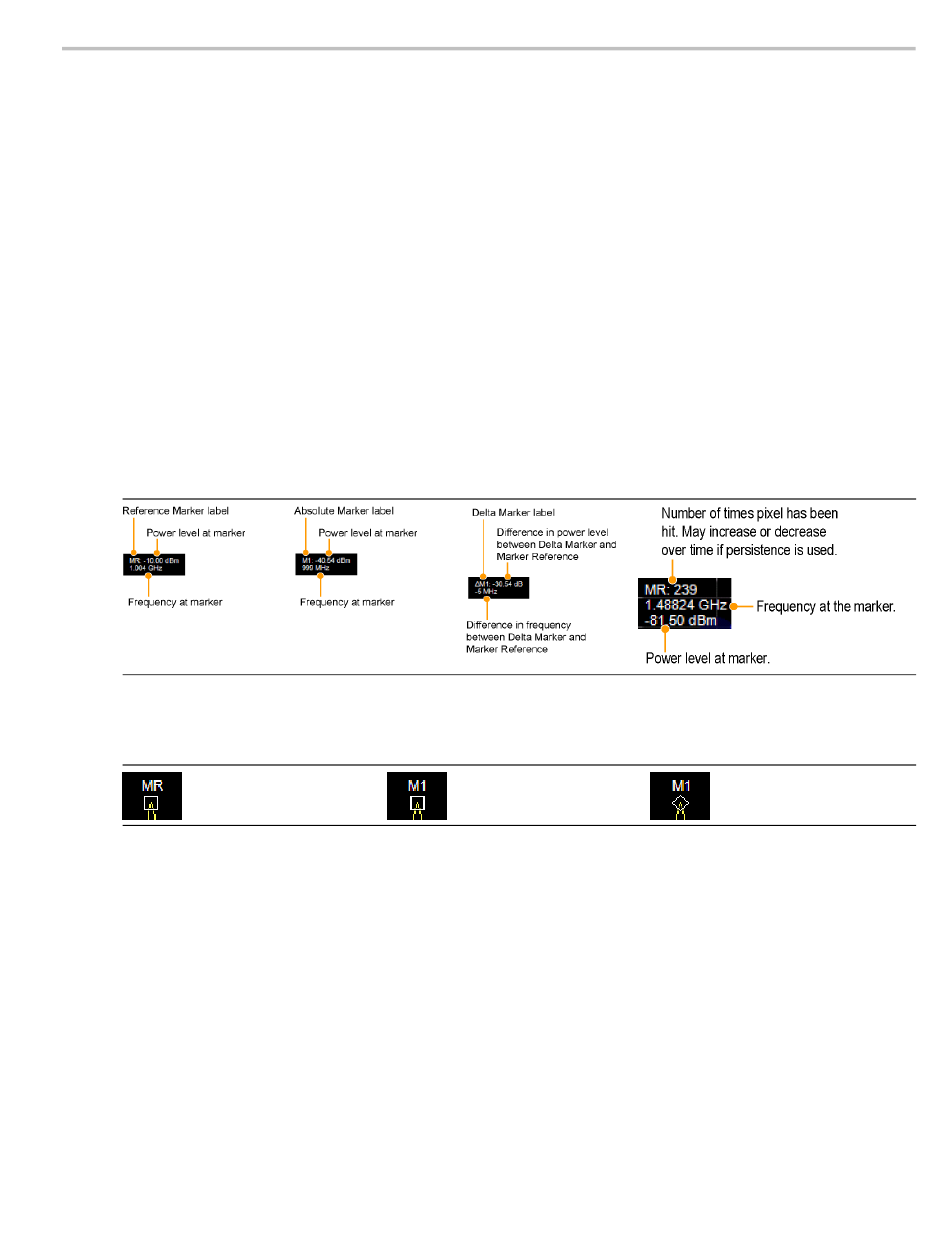

The following table shows the appearance of the four types of marker readouts.
Marker Reference
Readout
xxx
The following table shows the appearance of the marker indicators as they appear on the trace.
Marker Reference
xxx

Controlling Markers with the Touchscreen Actions Menu

In addition to controlling the marker actions from the front panel or screen menu items, you can use the
touch screen actions menu to move markers or add and delete markers.
SPECMON3 & SPECMON6 Printable Help
Absolute Marker Delta Marker Readout
Readout
Absolute Marker
Using Markers
DPX Bitmap Marker Readout
Delta Marker
