General Signal Viewing

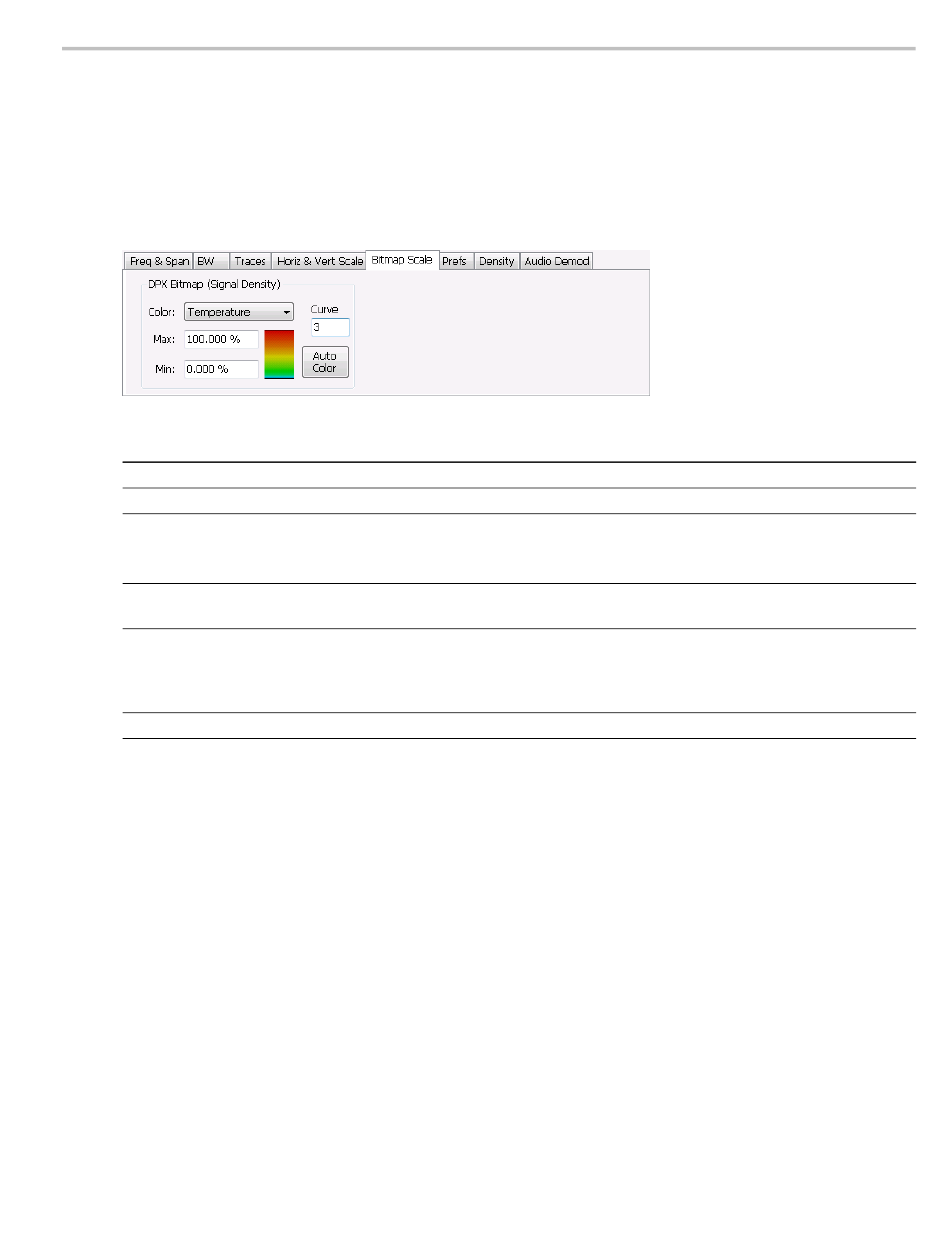

Bitmap Scale Tab
The Bitmap Scale tab allows you to set the color scheme used for the Bitmap trace. Changing the DPX
bitmap Color, Max and Min scale settings changes how the trace appears on the display but does not
change control settings such as Measurement Frequency.
Setting
DPX Bitmap (Signal Density)
Color
Max
Min
Curve
Auto Color
xxx
SPECMON3 & SPECMON6 Printable Help
Description
Controls the appearance and scale of the DPX Bitmap trace.
Allows you to select the color palette used for the DPX Bitmap trace.
Sets the hit density represented by the top of the color scale. "Clipping" occurs for
densities greater than this value.
Range: 1p% - 100%; Default: 100%.
Sets the hit density represented by the bottom of the color range. Range: 0 - 80%;
Default: 0.
Adjusts how colors are mapped to the signal density. The mapping can be linear (Curve
= 1), or it can be set to concentrate the resolution on the lower level of the range (Curve >
1) or the mapping can be set to show the best resolution on the upper range of density
or hit count (Curve < 1).
Adjusts the Max and Min settings to display the broadest range of colors.
Bitmap Scale Tab
