Reference
Copy Info
The Copy Info button copies information about the instrument to the Windows clipboard. This information
may be useful if you need to have your instrument serviced.

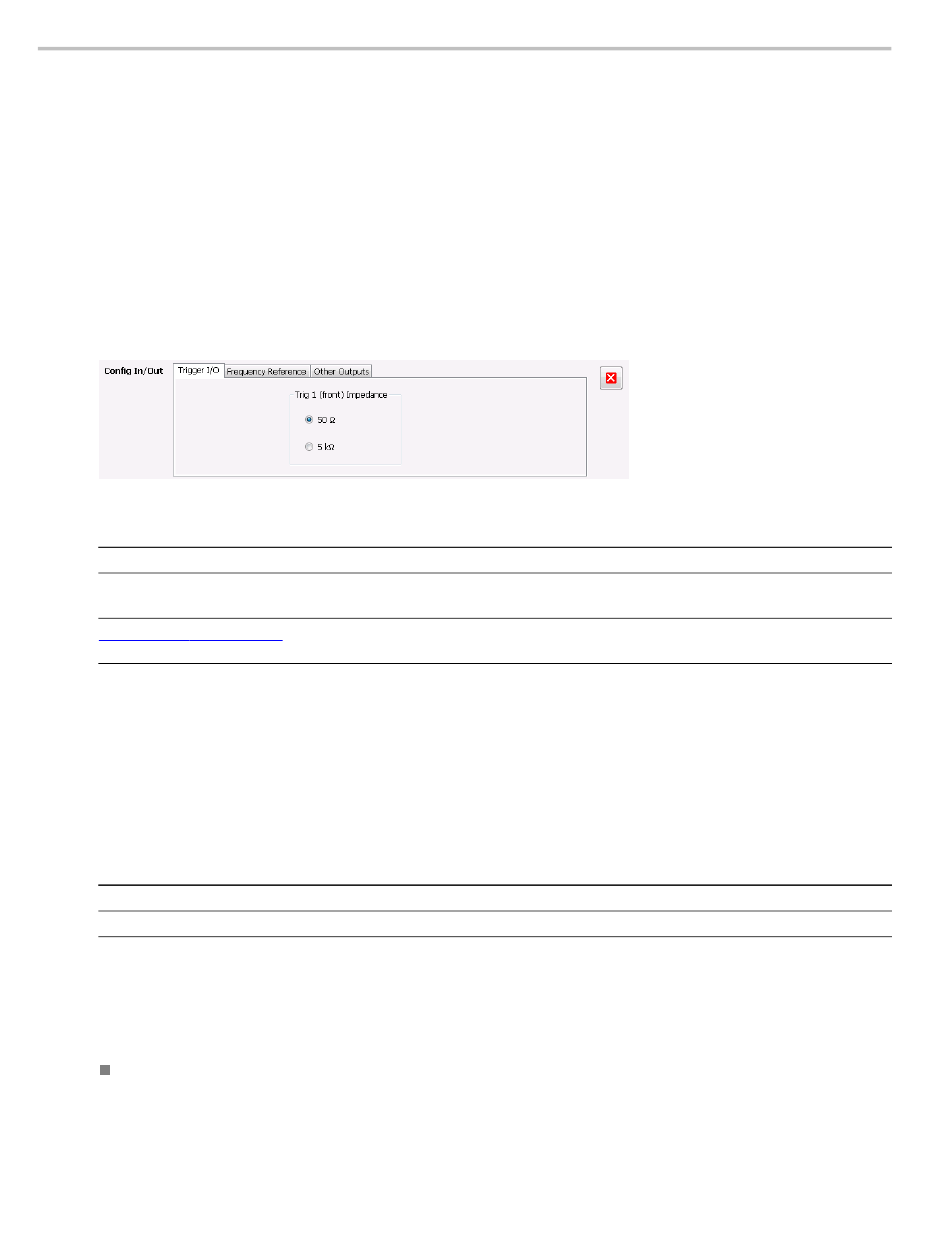

Configure In/Out Settings
Menu bar: Setup > Configure In/Out.
The Configure In/Out control panel enables you to configure the analyzer inputs and outputs. The settings
in this control panel are shared by all application windows.
Settings tab
Trigger I/O
Frequency Reference
Other Outputs (see page 392)
xxx

Connecting an RF Signal

The analyzer has a single RF signal input located on the front panel. The input impedance is 50 Ω. The
input frequency range for each analyzer model is listed in the following table. The maximum measurable
continuous input power for all models is 1 W.
Model
SPECMON3
SPECMON6
xxx
About RF Input Protection
The following paragraphs describe how the analyzer behaves to protect the RF input during power-off,
power-on, power-on self test (POST), and attenuator switching:
When switched off (or when power is removed), the RF input is electronically disconnected from the
input connector. The analyzer always has a minimum 10 dB attenuation applied during power-up and
power-on-self-test. This is accomplished by always switching the attenuation control to Auto during
388
Description
Specifies the impedance for the Trig 1 input.
Specifies the source of the Frequency Reference. You can select between an Internal
(10 MHz) source and an external source.
Specifies whether the 28 VDC, Analog IF and IQ outputs are on or off. Additional settings
are available for IF and IQ outputs.
Input frequency range
1 Hz to 3 GHz
1 Hz to 6.2 GHz
Configure In/Out Settings
SPECMON3 & SPECMON6 Printable Help
