OFDM Analysis
Prefs Tab – OFDM

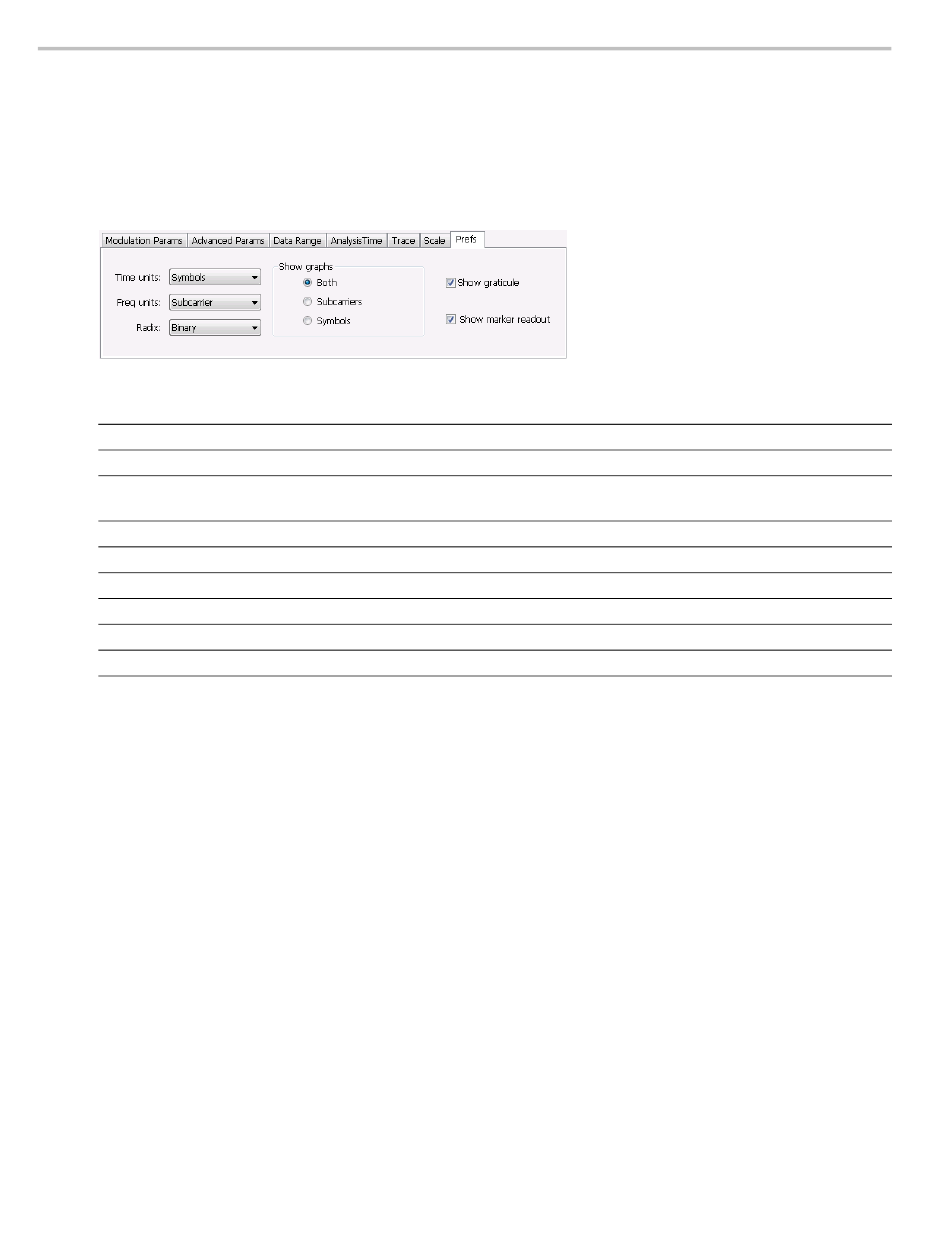

The Prefs tab enables you to change appearance characteristics of the OFDM Analysis displays. Not all
settings on the Prefs tab shown below appear for every OFDM display.
Settings
Time units
Freq units
Radix
Show graphs
Both
Subcarriers
Symbols
Show graticule
Show marker readout
xxx
250
Description
Specifies whether the displayed time units are seconds or symbols.
Specifies whether the displayed frequency units are frequency (Hz) or subcarrier channel.
Specifies whether symbol values are displayed in binary or hex format (for example, in
the Symbol Table or markers readouts).
Specifies which graph types are displayed.
Displays both the Subcarrier and Symbol graphs.
Displays only the subcarrier graph.
Displays only the symbol graph.
Displays or hides the graticule in the graphs.
Displays or hides the marker readouts in the graphs.
