Rf I & Q Vs Time Settings - Tektronix SPECMON3 Manual

General Signal Viewing

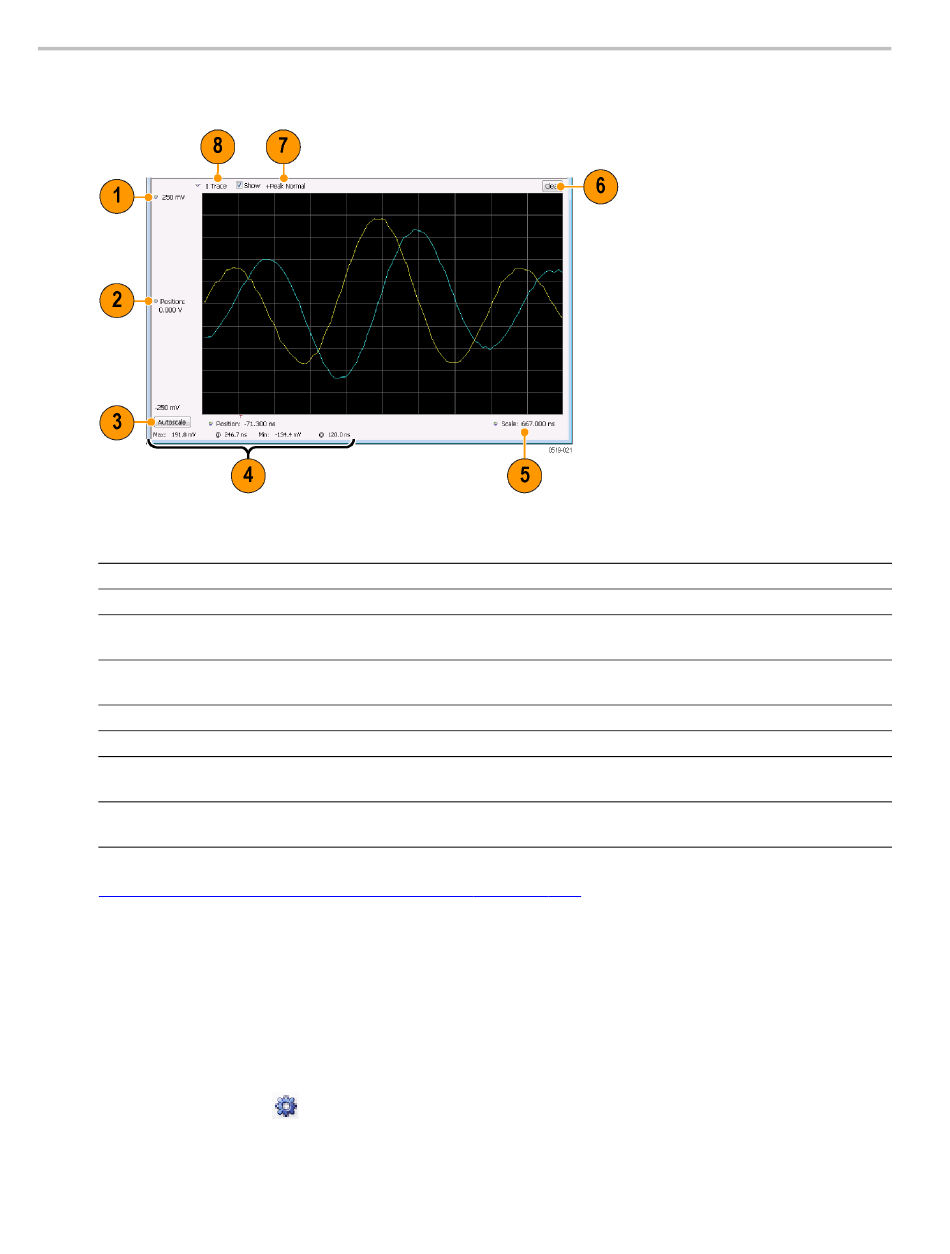

Elements of the Display
Item Display element
1 Top of Graph adjustment
2 Vertical offset adjustment
3 Autoscale button
4 Maximum and Minimum level
readouts
5 Scale
6 Clear button
7
Trace function
8 Trace Control
xxx
Changing the RF I & Q vs Time Display Settings (see page 110)
RF I & Q vs Time Settings
Menu Bar: Setup > Settings
Front Panel: Settings
Application Toolbar:
110
Description
Use the knob to adjust the vertical scaling.
Adjusts the level shown at the center of the display.
Adjusts the offset and scale for both vertical and horizontal to provide the
best display.
Displays the maximum and minimum values, within the Analysis Time, as well
as the times at which they occurred.
Sets the time spanned by the graph.
Restarts multi-trace functions (Avg, Hold).
Displays the current trace function setting (Settings > Trace > Function). If the
traces are averaged, the number of averages is displayed.
Selects which trace is displayed (using the drop-down list) and which trace is
active (click on the trace name to display a menu).
SPECMON3 & SPECMON6 Printable Help
RF I & Q vs Time Settings
