General Signal Viewing

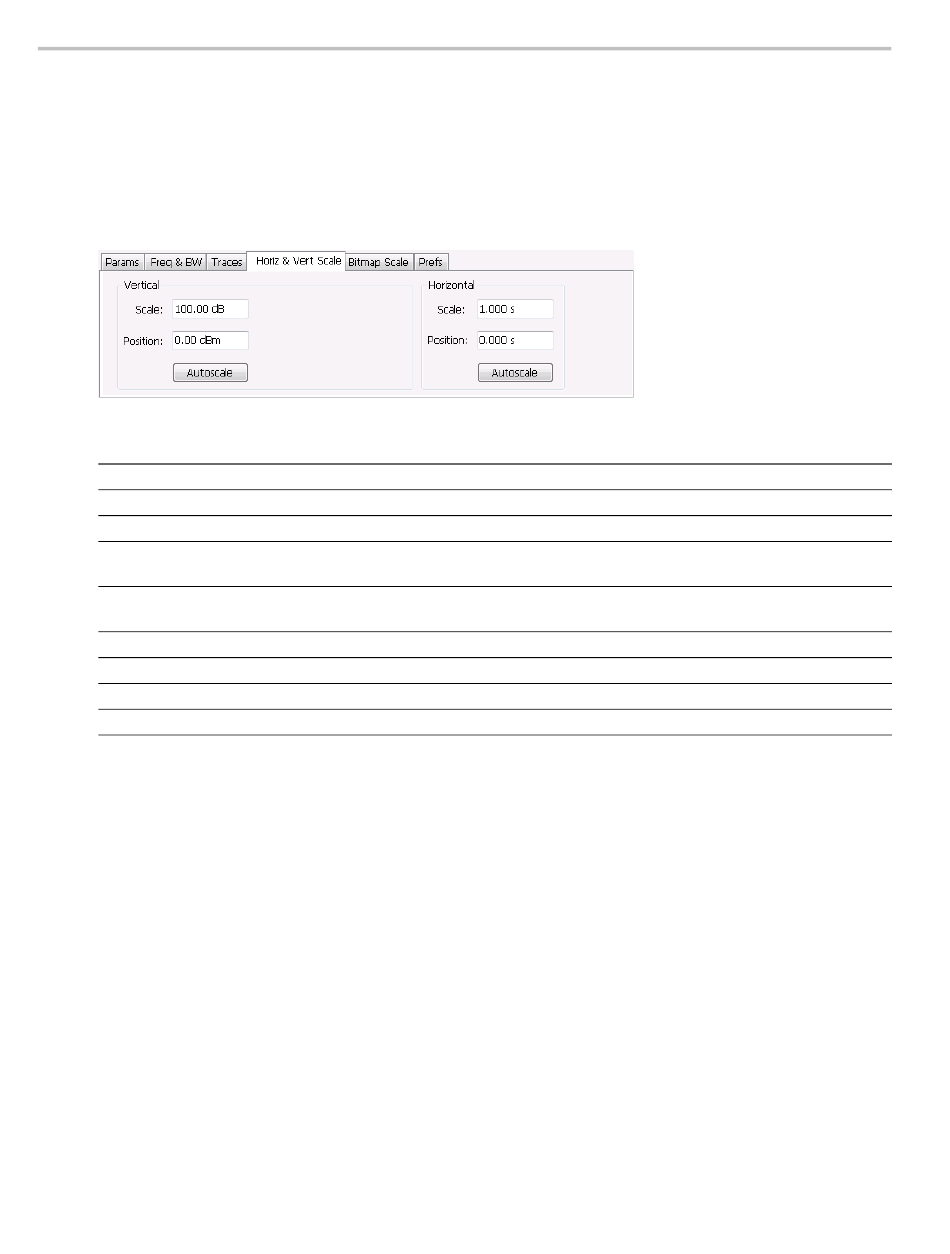

Horiz & Vert Scale Tab
The Horiz & Vert Scale tab allows you to change the vertical scale settings used for the Bitmap trace.
Changing the scale settings changes how the trace appears on the display but does not change control
settings such as Measurement Frequency.
Setting
Vertical
Scale
Offset
Reset Scale
Autoscale
Horizontal
Scale
Position
Autoscale
xxx
78
Description
Controls the vertical position and scale of the trace display.
Changes the vertical scale.
Adjusts the Reference Level away from the top of the trace display.
Sets Scale to its default value and Offset to zero. Disabled when Units (Setup > Analysis
> Units) is set to Watts or Volts.
Resets the scale of the vertical axis to contain the complete trace. Disabled when Units
(Setup > Analysis > Units) is set to Watts or Volts.
Controls the horizontal position and scale of the trace display.
Changes the horizontal scale.
Adjusts the horizontal position of the signal. This does not change the center frequency.
Resets the scale of the horizontal axis to contain the complete trace.
Horiz & Vert Scale Tab
