General Signal Viewing
show box are readouts for detection of the selected trace (+Pk, Avg (VRMS), ) and its function (Hold,
Normal,). You can enable/disable the selected trace by checking or unchecking Show.

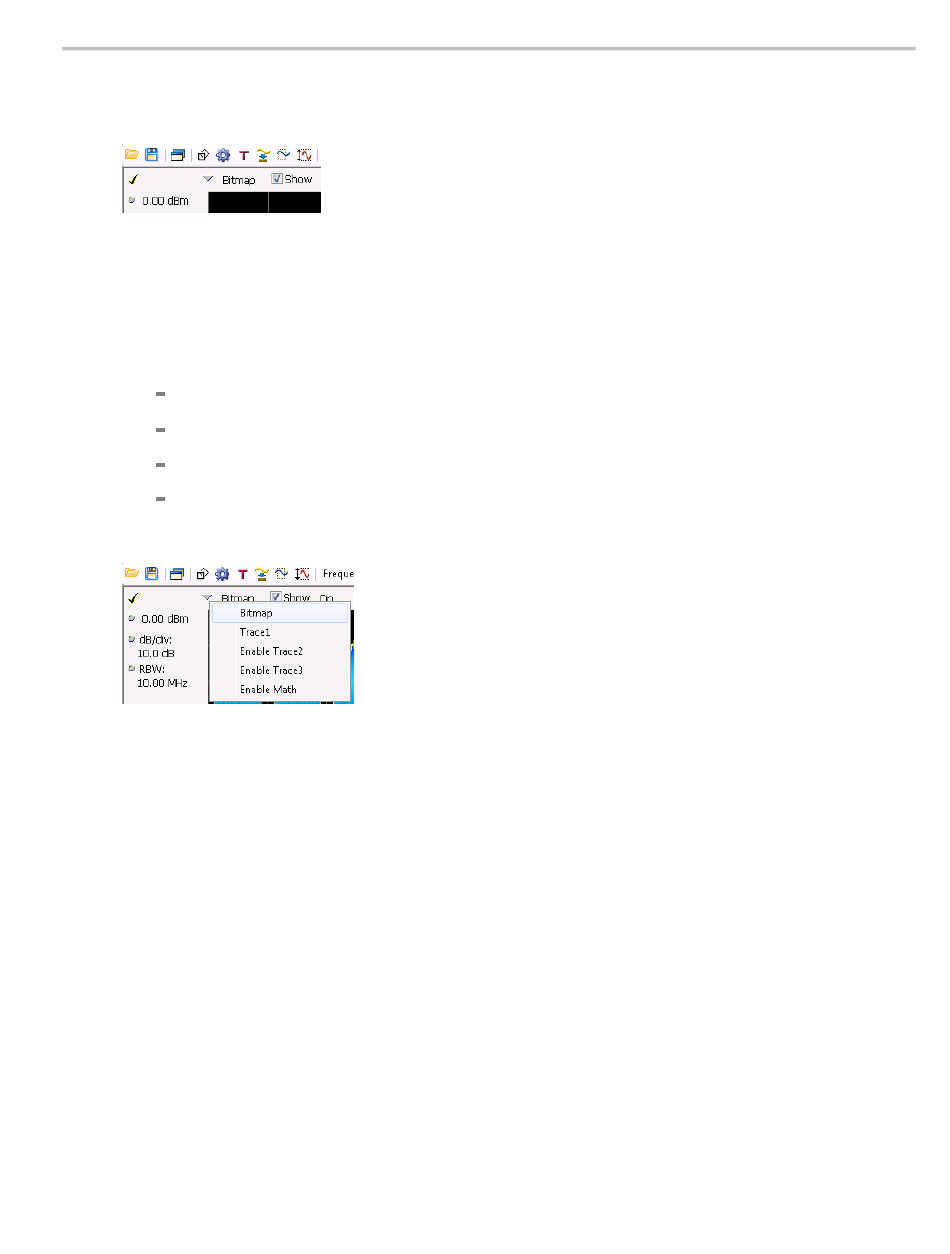

Selecting Traces for Display – Standard Instrument
To select a trace for display:
1. Use the Settings control panel:
Select Setup > Settings or click the Settings button.
Select the Traces tab.
Select the trace from the drop-down menu.
Select the Show check box.
2. Select a trace from the Trace drop-down list.
Specifying How +Peak, –Peak, and Average Traces Are Displayed
You control how the +Peak, –Peak and Average (Avg (VRMS)) traces are displayed from the Traces tab of
the Settings control panel. From the Traces tab, you can also specify whether these traces display results
from single updates or results collected over multiple updates.
To change how the traces are displayed:
1. Select Setup > Settings or click the Settings button.
2. Select the Traces tab.
3. Select the trace type from the drop-down list.
