RF Measurements
Settings tab
Freq & RBW (see page 160)
Measurement Params (see
page 161)
Channels (ACPR) (see
page 154)
Scale (see page 224)
Prefs (see page 225)
xxx
Restore defaults.

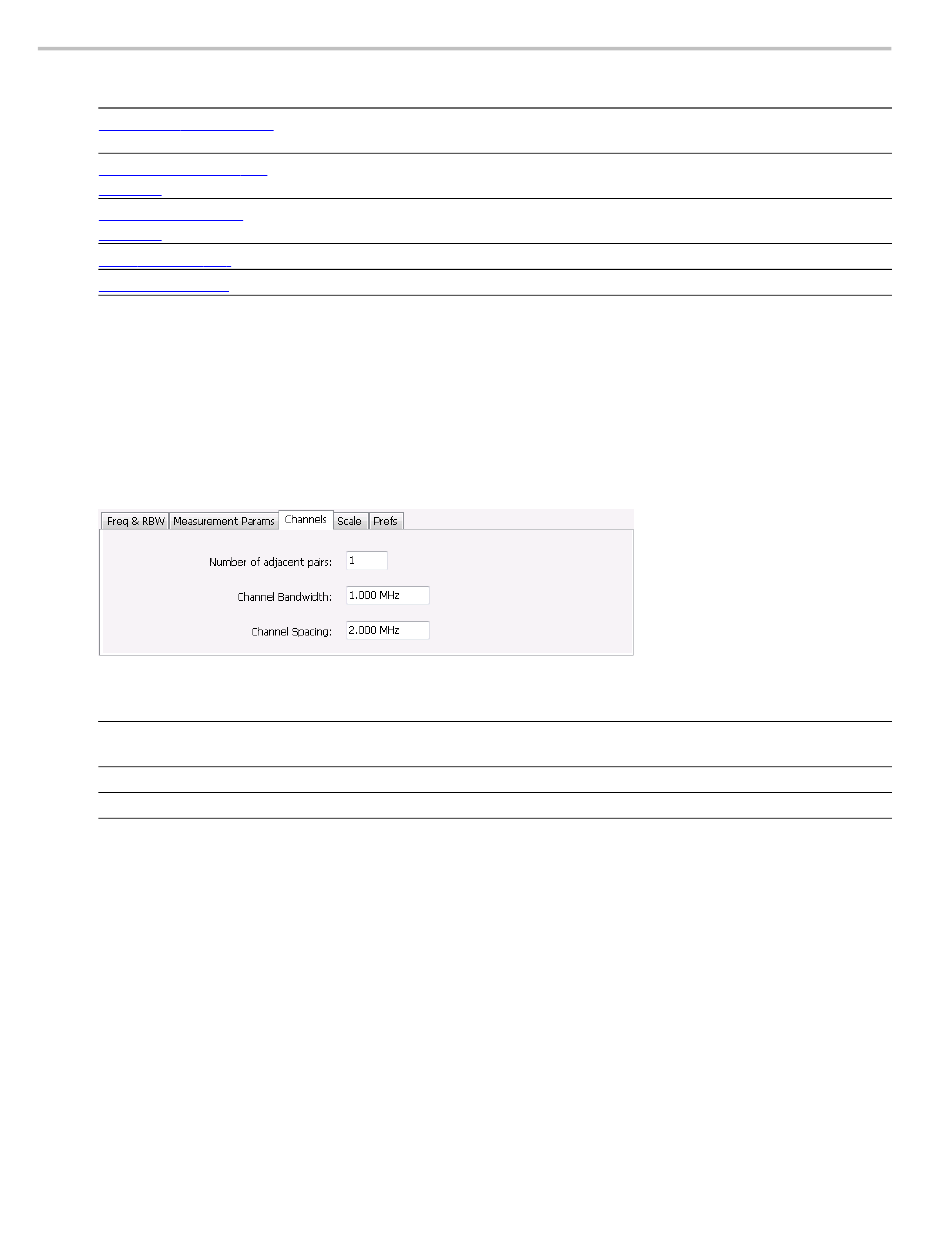

Channels Tab
The Channels tab is where you specify parameters for the channels measured in the Chan Power display.
Setting
Number of adjacent pairs
Channel Bandwidth
Channel Spacing
xxx
The following figure illustrates the settings controlled from the Channels tab.
154
Description
Specify the frequency and resolution bandwidth used for the Channel Power and ACPR
measurements.
Specify several parameters that control the measurement, such as channel filter, chip
rate, averaging, and correcting for noise floor.
This tab specifies the BW and offset parameters of the Channels for the Channel Power
and ACPR measurements.
Specifies the vertical and horizontal scale settings.
Specifies whether certain display elements are visible.
Sets parameters for a 1-channel WCDMA measurement.
Description
Specifies the number of adjacent channel pairs. The default value is 0. This setting is
used to measure power and strength for a single channel. Range: 0- 50; Resolution 1.
Specifies the frequency width of each channel (all channels share the same value).
Specifies the difference in frequency between the centers of each channel.
SPECMON3 & SPECMON6 Printable Help
Channels Tab
