Pulsed RF

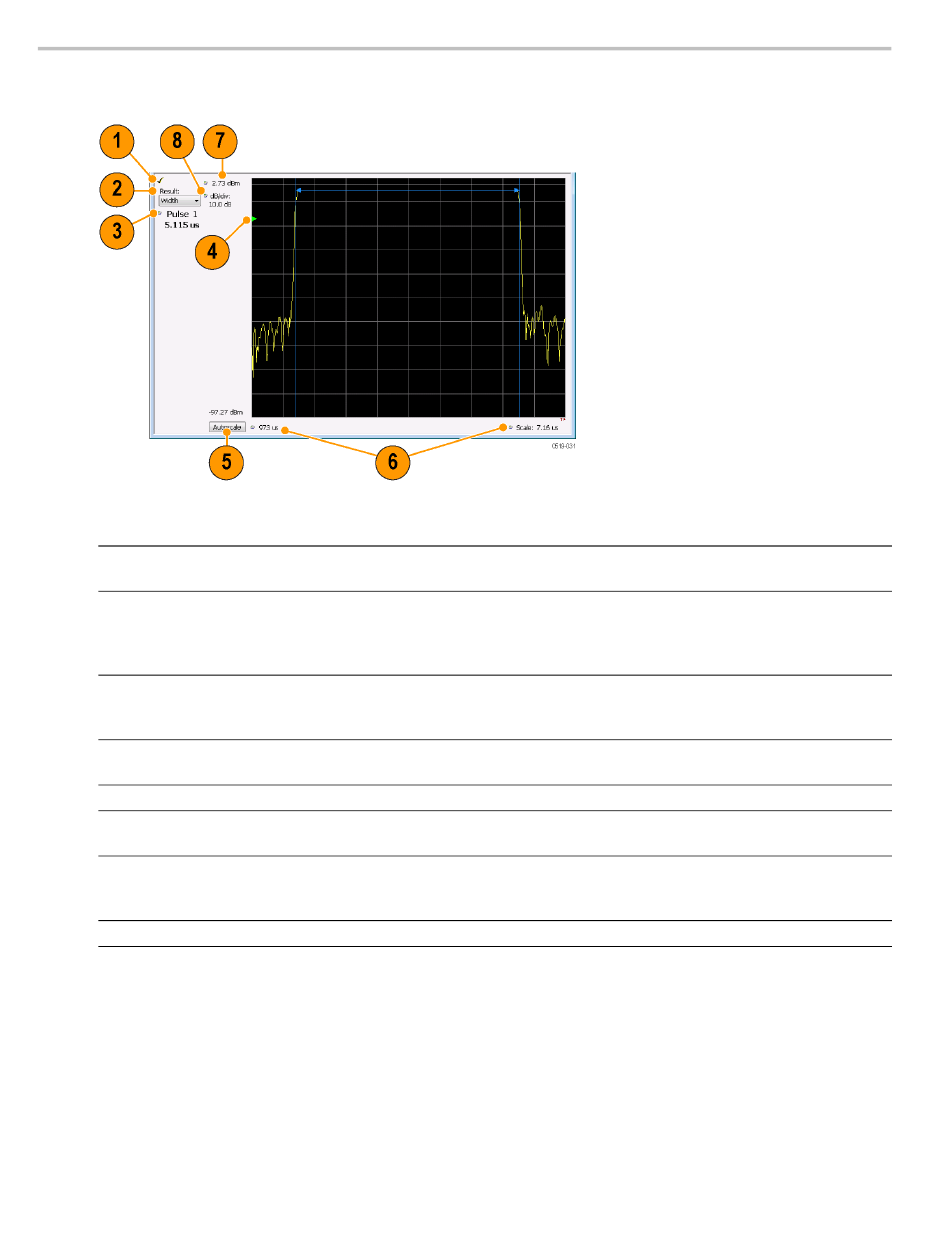

Elements of the Pulse Trace Display
Item Display element
1 Optimized indicator
2 Result
3 Pulse
4 Pulse threshold indicator
5 Autoscale
6 Horizontal offset and scale
7 Top of graph adjustment
8 Vertical scale
xxx
254
Description
The check mark indicator in the upper, left-hand corner of the display shows
when the Pulse Trace display is the optimized display.
Use this list to select the measurement to show. The measurement chosen
here selects the same result to be displayed in the Statistics view and
highlighted in the Table view. Selecting a result in any of these views causes
the same result to be selected in all of them.
Selects which pulse result is shown. Like the Result, this selection is shared
with the Statistics and Table views. The maximum number of pulses that
can be measured is limited to 10000.
This green triangle indicates the power threshold used to detect pulses. See
Settings > Params > Power threshold to detect pulses.
Set the axes to values that show all trace points.
Located along the bottom edge of the trace display, these controls specify the
offset and scale on the horizontal axis.
Sets the power level shown at the top of the graph. If the number is greater
than the Ref Level, a white line will appear in the graph to indicate the Ref
Level.
Sets the vertical scale value.
