RF Measurements
4. Navigate to the desired file and click Open.
5. Check the Show Recalled Trace check box.
6. Verify that the trace's Show check box is selected (either on this tab or next to the drop-down list
located at the top-left corner of the graph).

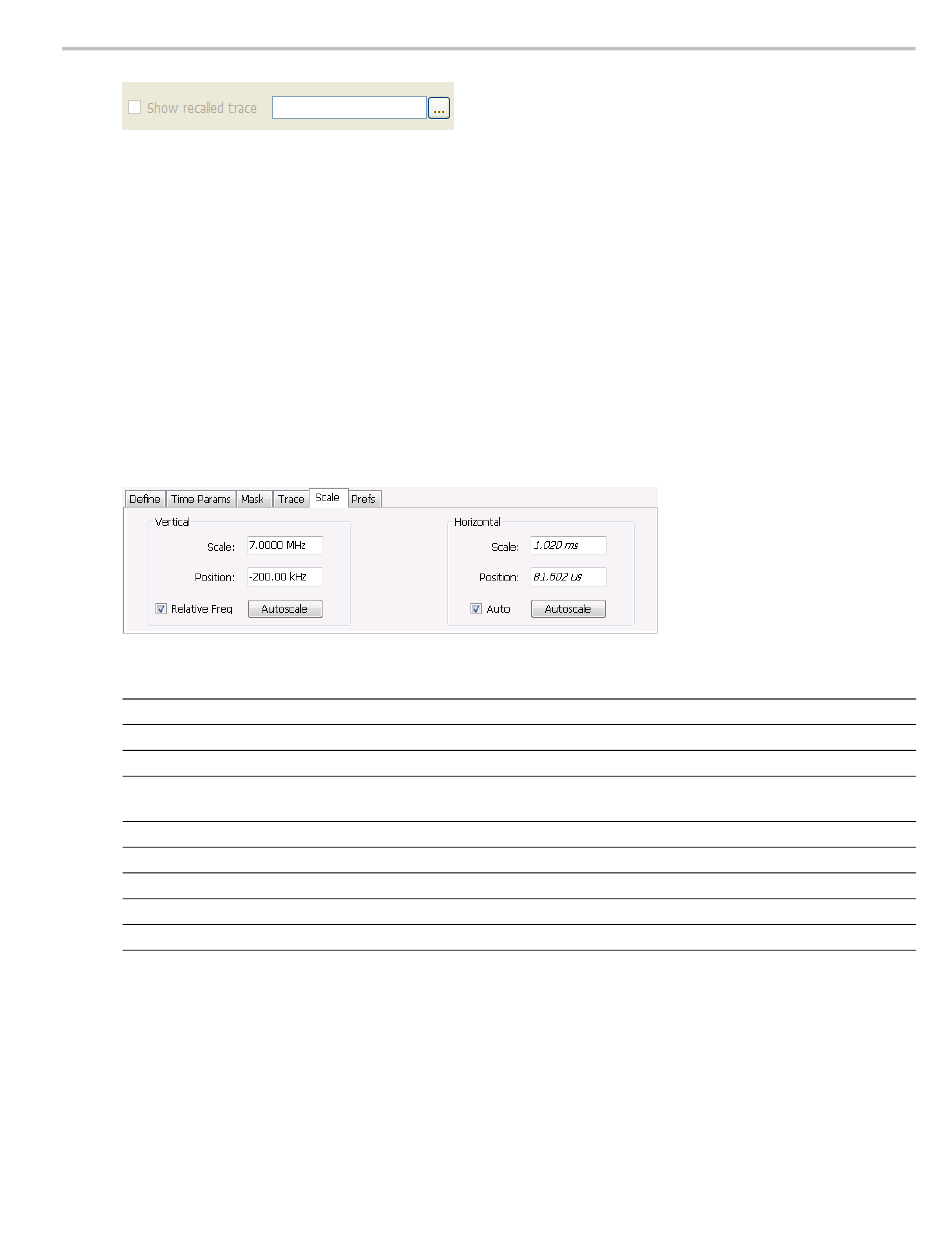

Scale Tab for Settling Time Displays
The Scale tab allows you to change the vertical and horizontal scale settings. Changing the scale settings
changes how the trace appears on the display but does not change control settings such as Measurement
Frequency. In effect, these controls operate like pan and zoom controls.
Setting
Vertical
Scale
Position
Relative Freq
Autoscale
Horizontal
Scale
Position
Autoscale
xxx
SPECMON3 & SPECMON6 Printable Help
Description
Changes the vertical scale or span of the graph.
Sets the frequency (or phase) at the vertical center of the graph.
Sets the vertical (position) display readouts to show frequency values relative to the
center frequency or as absolute values.
Resets the Scale and Position to center the trace in the graph.
Sets the range of time shown in the graph.
Allows you to pan the graph left and right.
Resets Scale and Position to the automatically determined settings.
Scale Tab for Settling Time Displays
