OFDM Analysis

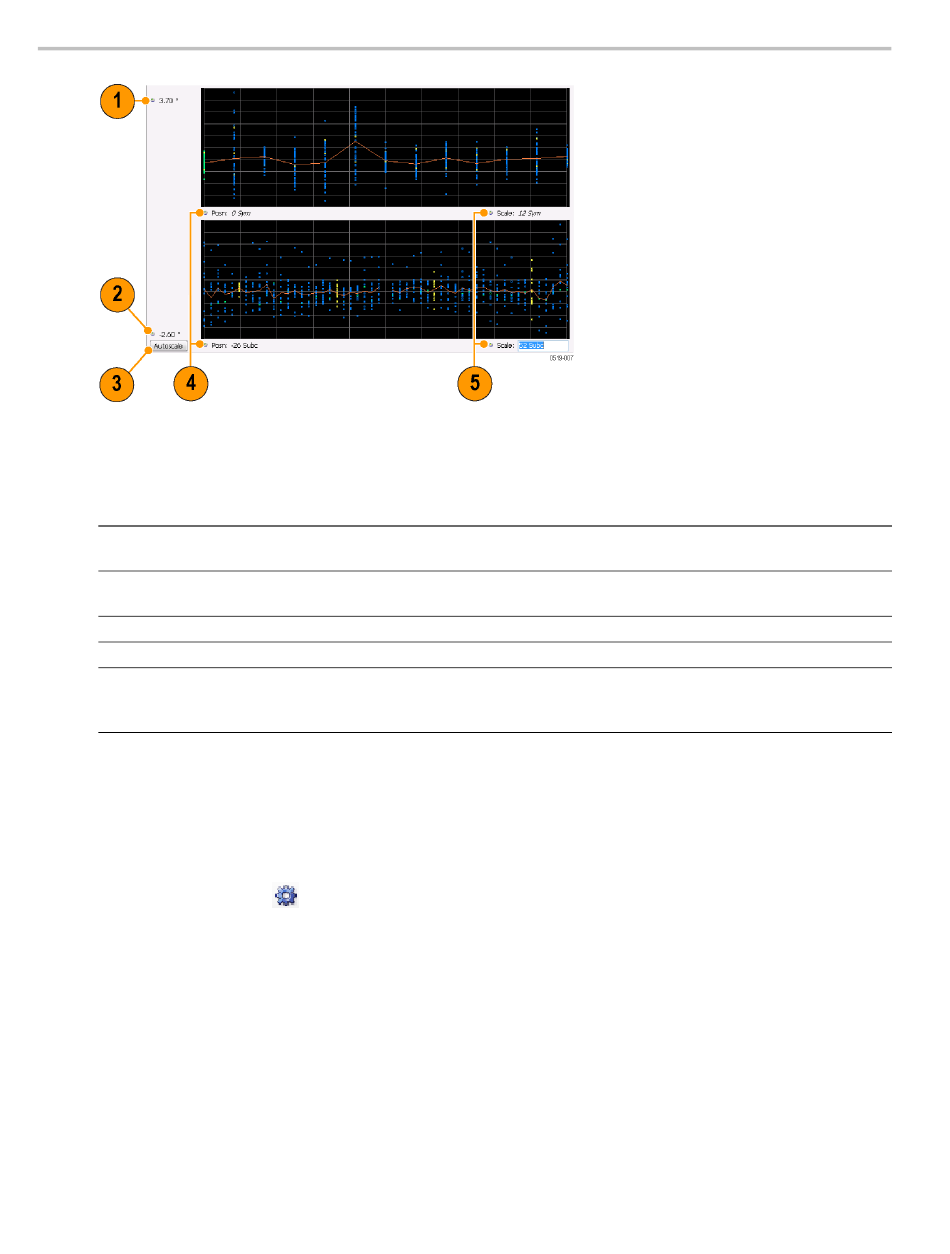

Elements of the Display
Item Display element
1 Top of graph
2 Bottom of graph
3 Autoscale
4 Pos
5
Scale
xxx

OFDM Phase Error Settings

Front Panel: Settings
Application Toolbar:
The settings for the OFDM Phase Error display are shown in the following table.
236
Description
Sets the Phase Error value that appears at the top of the graph. This is only a
visual control for panning the graph.
Sets the Phase Error value that appears at the bottom of the graph. This is
only a visual control for panning the graph.
Adjusts the vertical and horizontal settings to provide the best display.
Specifies the horizontal position of the trace on the graph display.
Adjusts the horizontal range of the graph. By decreasing the scale, the graph
essentially becomes a window that you can move over the analysis results by
adjusting the position.
SPECMON3 & SPECMON6 Printable Help
OFDM Phase Error Settings
