General Signal Viewing
4. Select either Infinite or Variable.
5. If you select Variable, enter a value in the text box. The Variable persistence value can be set from
0.05 to 100 seconds (instruments with Option 200) and 1 to 1000 in instruments without option 200.
Saving Traces
To save a trace for later analysis:

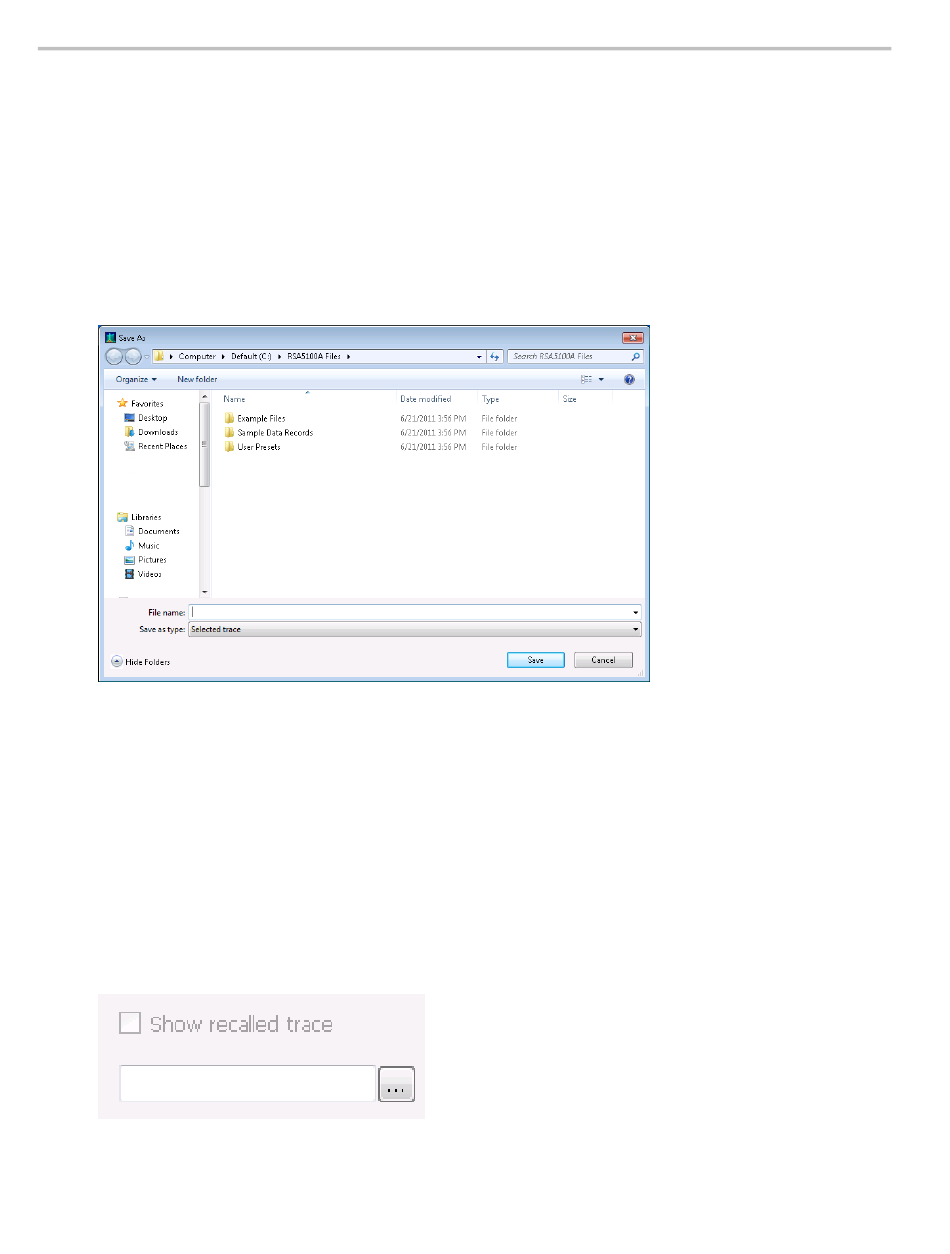

1. Select the Save Trace As button. This displays the Save As dialog box.
2. Navigate to the location where you want to save the file.
3. Type a name for the saved trace and click Save.
Show Recalled Trace
You can recall a previously saved trace for comparison to a live trace. First, specify a trace for recall and
second, enable Show Recalled Trace.
To select a trace for recall:
1. Select the ... button to display the Open dialog box.
