Orientation

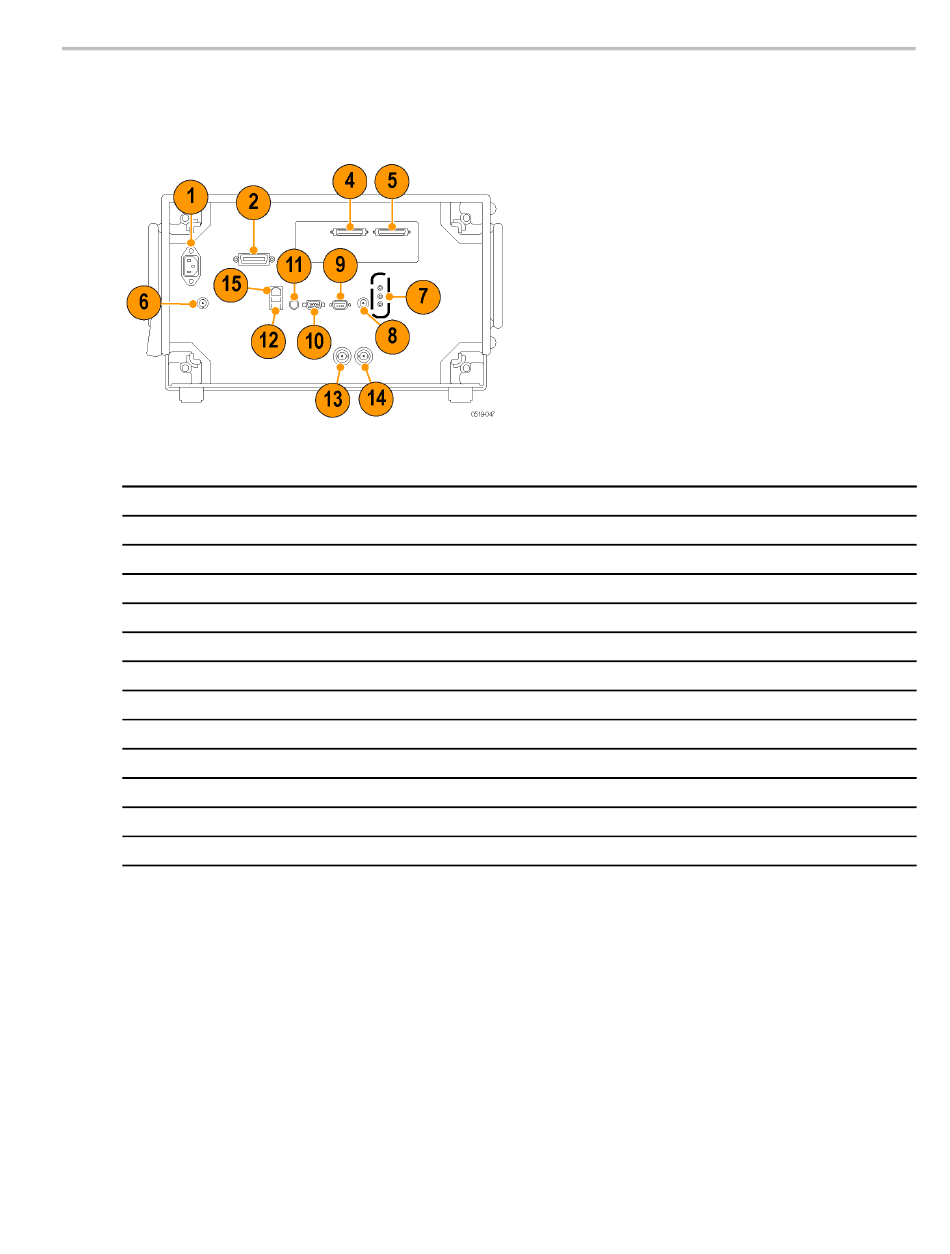

Rear-Panel Connectors

Ref number
1
2
4, 5
6
7
8
9
10
11
12
13
14
15
xxx

Setting Up Network Connections

Because the instrument is based on Windows, you configure network connections for the instrument the
same way you would for any PC based on Windows. See Help and Support in the Windows Start menu
to access the Windows Help System for information on setting up network connections.
SPECMON3 & SPECMON6 Printable Help
Connector, Description
AC Input, main power connector
GPIB
Real Time IQ Out (Option 55)
+28 VDC output, switched
Microphone in; Headphone, audio output; and Line In connectors
External Trigger 2 Input
COM 2, serial port for connecting peripherals
VGA external monitor output (resolution not limited to VGA)
PS2 Keyboard input
USB 2.0 ports for mouse and other peripherals (printers, external hard disks)
Ref Out, reference frequency output
Ref In, reference frequency input
LAN, Ethernet network connector
Rear-Panel Connectors
