General Signal Viewing

Spectrum Display

To display a spectrum:
1. Click the Displays button or select Setup > Displays.
2. From the Folders box, select General Signal Viewing.
3. Double-click the Spectrum icon in the Available displays box. This adds the Spectrum icon to the
Selected displays box (and removes it from the Available displays box). Alternatively, you can click
the Spectrum icon and then click the Add button to select Spectrum for display.
4. Click the OK button.

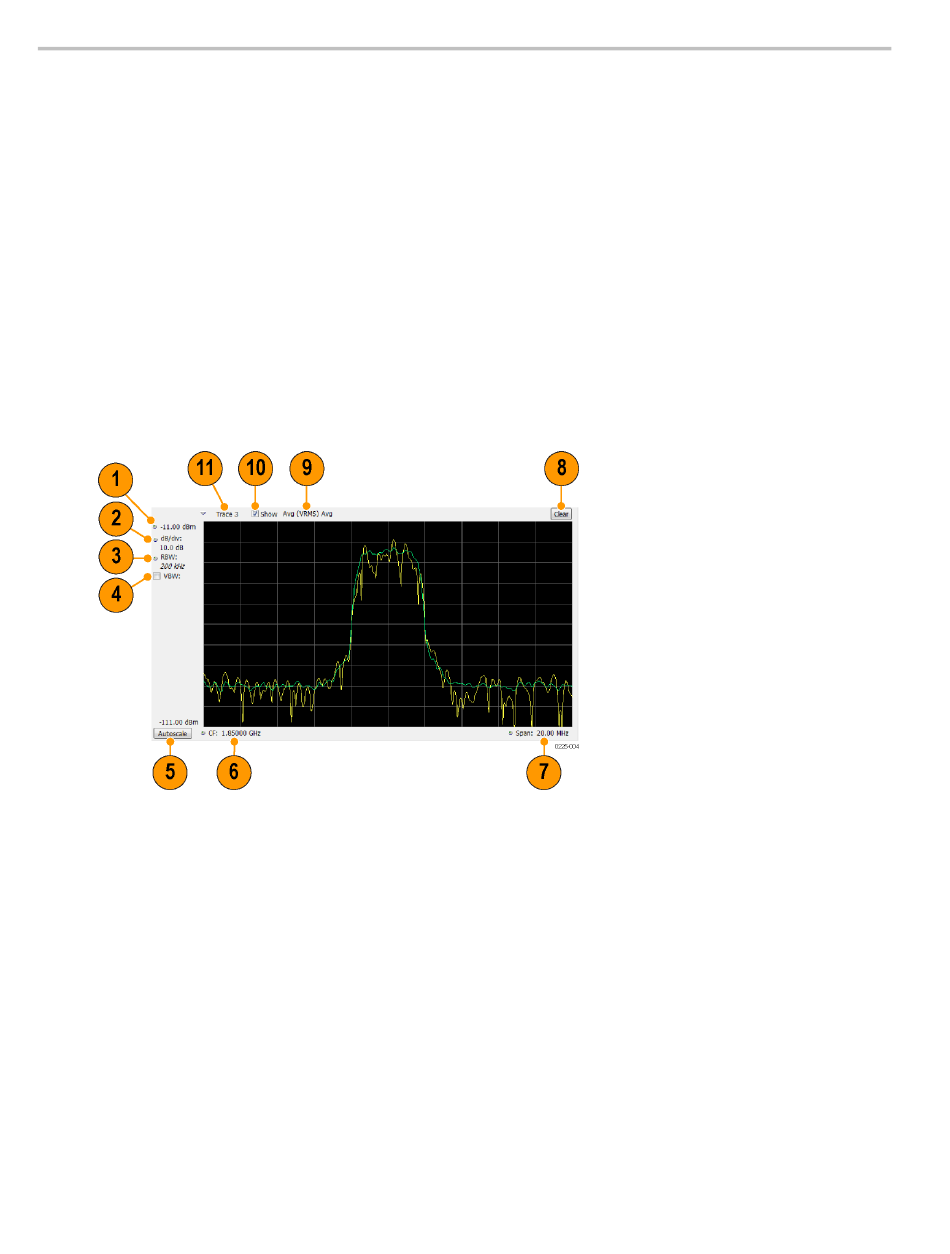

Elements of the Spectrum Display
