RF Measurements

Settling Time Displays Shared Measurement Settings

The control panel tabs in this section are shared by the Frequency and Phase Settling Time displays. These
control panel tabs are not shared with other RF Measurement displays. With few exceptions, each display
shares values for each of the controls on these tabs. For example, Vertical Scale values are independent for
each of the displays (degrees for Phase Settling Time and Hertz for Frequency Settling Time).
Common controls for settling time measurement displays
Settings tab
Define (see page 201)
Time Params (see page 203)
Mask (see page 204)
Trace (see page 204)
Scale (see page 207)
Prefs (see page 208)
xxx

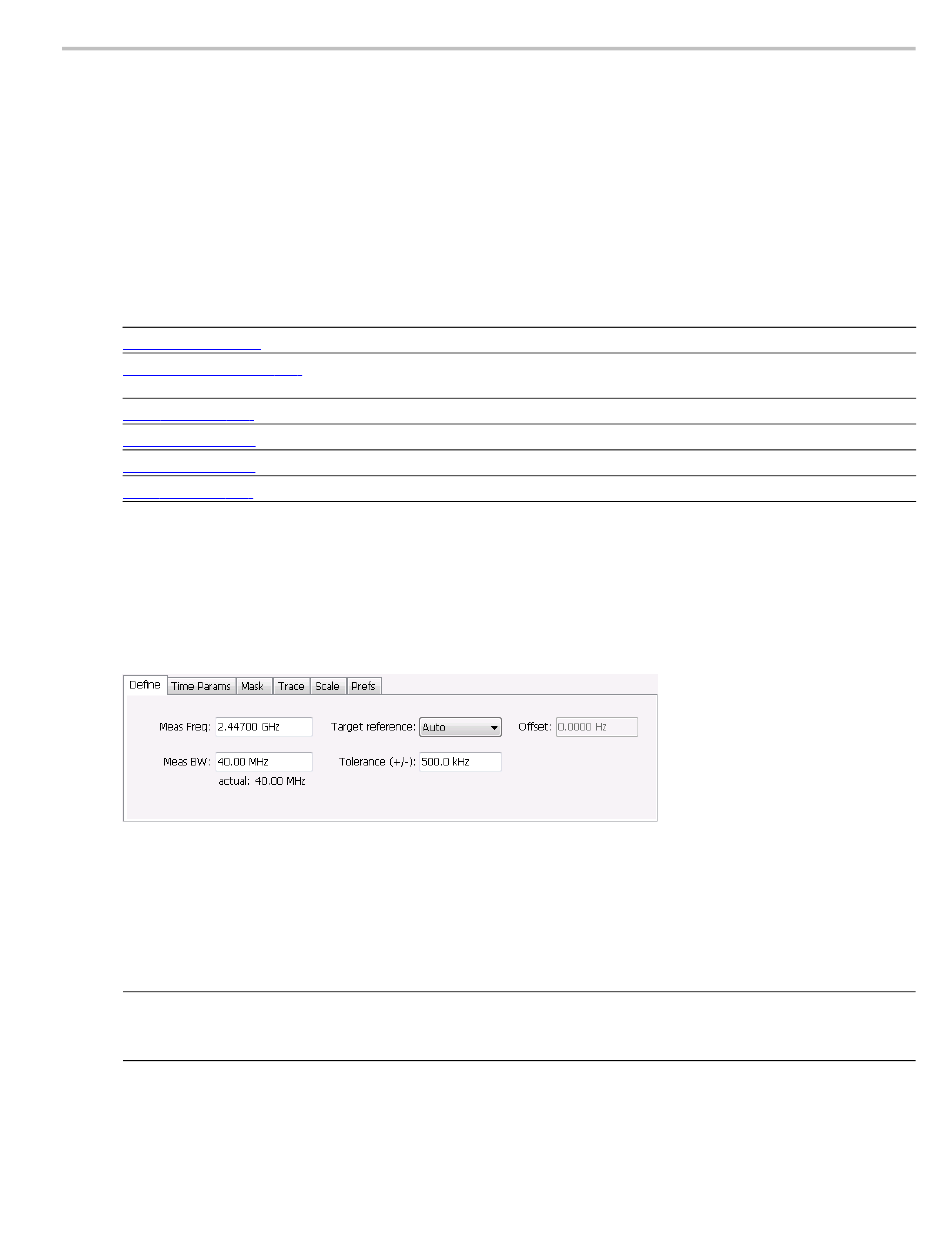

Define Tab for Settling Time Displays
The Define tab for the Frequency Settling Time measurement controls several parameters that affect
how the measurement is made.
Meas Freq
Select the frequency of the signal to be measured. Measurement Frequency can be selected as the target
frequency (see Target Reference).
NOTE. If Lock Center Frequency of Spectrum Display to Measurement Frequency is unchecked, then
Measurement Frequency is independent of Center Frequency) Range: Entire input frequency of the
instrument
SPECMON3 & SPECMON6 Printable Help
Settling Time Displays Shared Measurement Settings
Description
Specifies the parameters that characterize the settling time measurement.
Specifies the Measurement length and minimum settled duration for the settling time
measurement.
Specifies the parameters used for Mask testing.
Specify which traces to show and how they are computed.
Specifies the vertical and horizontal scale settings.
Specifies display parameters of the Settling Time displays.
