Orientation
Reference
1
2
3
4
5
6
7
8
9
10
xxx
10
Item Function
Media DVD-RW or removable hard disk
drive.
Displays Opens the Displays dialog box
enabling you to select which
displays to open.
Settings Opens/closes the Settings control
panel for the selected display.
Trigger Opens/closes the Trigger control
panel. On the RSA5100A Series,
this button lights when the trigger
mode is set to Triggered.
Acquire Opens/closes the Acquire control
panel.
Analysis Opens/closes the Analysis control
panel.
Freq Press to adjust the measurement
frequency.
Span (Spectrum) Press to adjust the span or press
and hold to display the Freq & Span
control panel for the General Signal
Viewing displays.
Amplitude Opens/closes the Amplitude control
panel.
BW (Spectrum) Press to adjust the bandwidth or
press and hold to display the BW
control panel for the General Signal
Viewing displays.

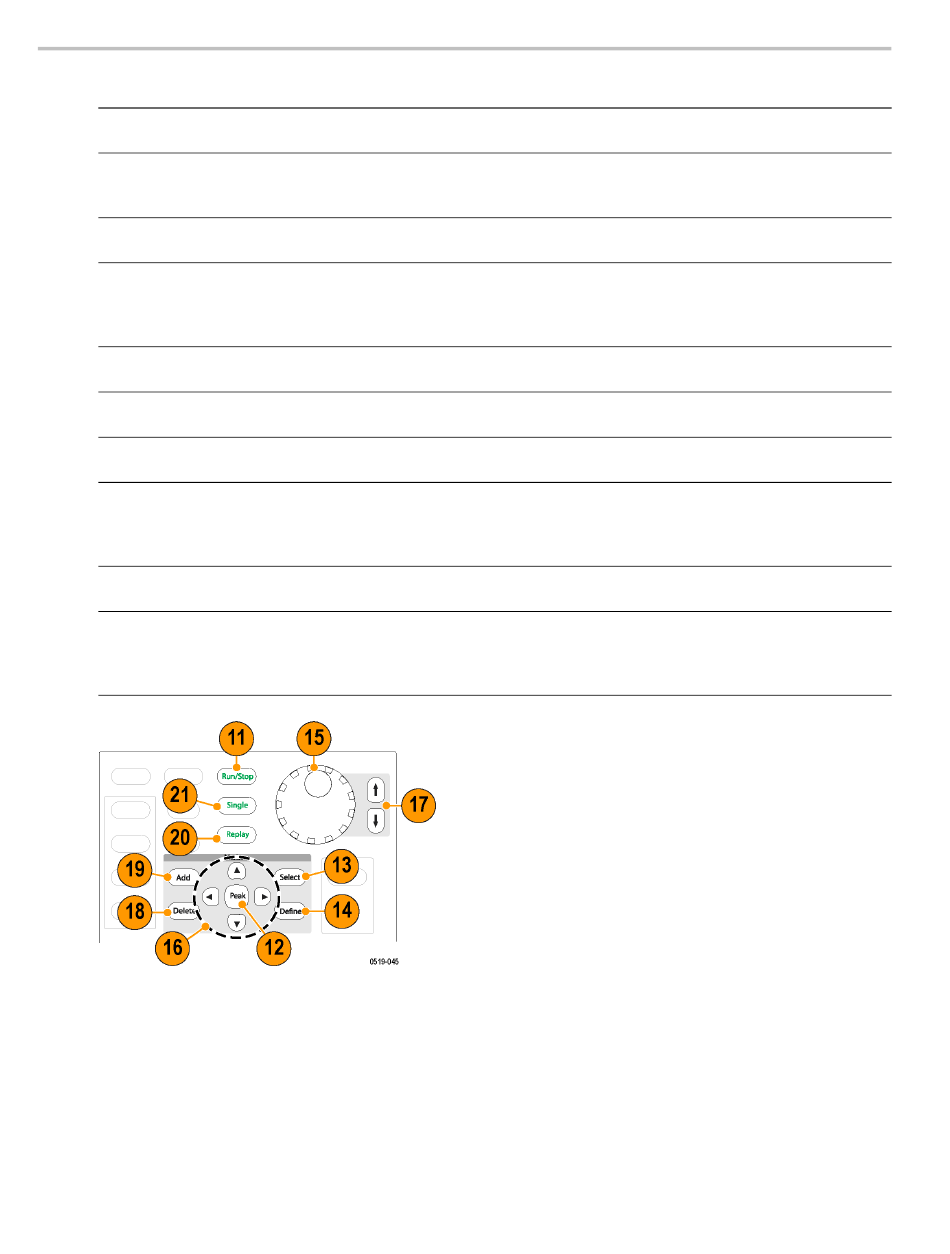

Front-Panel Controls
Menu Equivalent
Setup > Displays
Setup > Settings
Setup > Trigger
Setup > Acquire
Setup > Analysis
Setup > Analysis > Frequency
Setup > Amplitude
