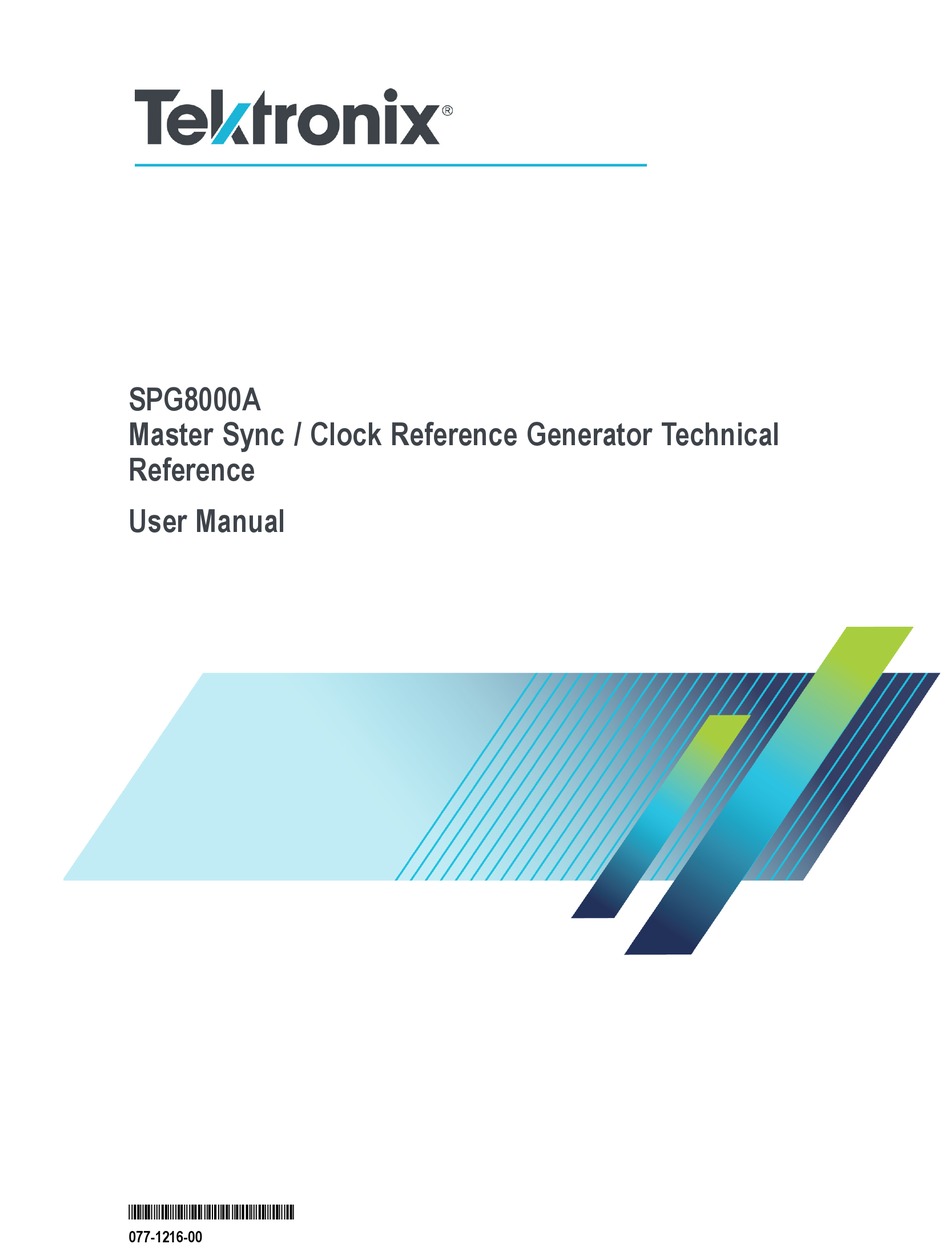

Page 1 SPG8000A Master Sync / Clock Reference Generator Technical Reference User Manual *P077121600* 077-1216-00...
Page 3 SPG8000A Master Sync / Clock Reference Generator Technical Reference User Manual Register now! Click the following link to protect your product. ► www.tek.com/register This document supports ﬁrmware version 3.0 and above. www.tek.com 077-1216-00...
Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
Page 5: Table Of Contents
How to operate an instrument with two power supplies (Option DPW only) ......Power supply status................... To conﬁgure the preferred (active) supply ..............To hot-swap a Power Supply module............... How to use Stay Genlock ..................® About Stay Genlock ..................® SPG8000A User Manual...
Page 6 SDI menu (Option SDI only)..................SDI Signal submenu..................SDI Conﬁgure Zoneplate submenu ................. SDI Moving Picture submenu ................SDI Video submenu ..................SDI Overlay submenu ..................SDI Ancillary Data submenu ................SDI Timecode submenu..................SDI menu factory default settings ................ SPG8000A User Manual...
Page 7 Jam Sync submenu ..................Time menu factory default settings ............... PTP menu......................ST2059 proﬁle menu selections ................How to conﬁgure Option PTP on the SPG8000A............PTP operational overview ................. PTP menu factory default settings ................ Front panel menu operation ..................
Page 8 Figure 1: Time ﬂow block diagram................Figure 2: Example SPG8000A Web User Interface window ..........Figure 3: Example FTP view of the SPG8000A ﬁle structure ..........Figure 4: Example FTP error message when ﬂash memory is full........... Figure 5: File structure for installing custom user ﬁles ............
Page 9 Figure 74: EMBEDDED CHANNEL submenu diagram ........... Figure 75: DOLBY-E CONFIG submenu diagram – part 1 ..........Figure 76: DOLBY-E CONFIG submenu diagram – part 2 ..........Figure 77: LTC button menu diagram................. Figure 78: LTC TIMING submenu diagram ..............SPG8000A User Manual...
Page 10 Figure 114: POWER SUPPLY LOAD TEST submenu diagram .......... Figure 115: TIME button menu diagram ..............Figure 116: TIME OF DAY submenu diagram .............. Figure 117: DST SCHEDULE submenu diagram ............Figure 118: PROGRAM TIME submenu diagram ............Figure 119: JAM SYNC submenu diagram ..............SPG8000A User Manual...
Page 11 Figure 121: PTP primary master menu diagram – part 1 ........... Figure 122: PTP primary master menu diagram – part 2 ........... Figure 123: PTP primary slave menu diagram – part 1 ............. Figure 124: PTP primary slave menu diagram – part 2 ............. SPG8000A User Manual...
Page 12 Table 33: SDI – 3G Level B (2×HD 720) ..............Table 34: SDI – HD-SDI (1920 × 1080)..............Table 35: SDI – HD-SDI (1280 × 720) ............... Table 36: SDI – SD-525 (720 × 486)................Table 37: SDI – SD-625 (720 × 576)................viii SPG8000A User Manual...
Page 13 Table 39: Enhanced SDI test signal sets ..............Table 40: Zone plate pattern control parameters ............. Table 41: System menu factory default settings ............. Table 42: Time menu factory default settings ..............Table 43: PTP menu factory default settings ..............SPG8000A User Manual...
Page 14: Important Safety Information
See instructions for the location. Do not position the equipment so that it is difﬁcult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed. SPG8000A User Manual...
Page 15 Provide a safe working environment. Always place the product in a location convenient for viewing the display and indicators. Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use only the Tektronix rackmount hardware speciﬁed for this product. SPG8000A User Manual...
Page 16: Service Safety Summary
Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. Verify safety after repair. Always recheck ground continuity and mains dielectric strength after performing a repair. SPG8000A User Manual...
Page 17: Terms In This Manual
ﬁnd out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.) The following symbol(s) may appear on the product: SPG8000A User Manual xiii...
Page 18 Important safety information SPG8000A User Manual...
Page 19: Preface
(time of day or program time) and time zone offset. Vertical interval time code (VITC) is available on each NTSC or PAL black output, also with independent time sources and offsets. The SPG8000A can also serve as a Network Time Protocol (NTP) server or as a Precision Time Protocol (PTP) grandmaster clock, providing the time-of-day reference to network-attached devices.
Page 20: Figure I: Spg8000A Front And Rear Panels

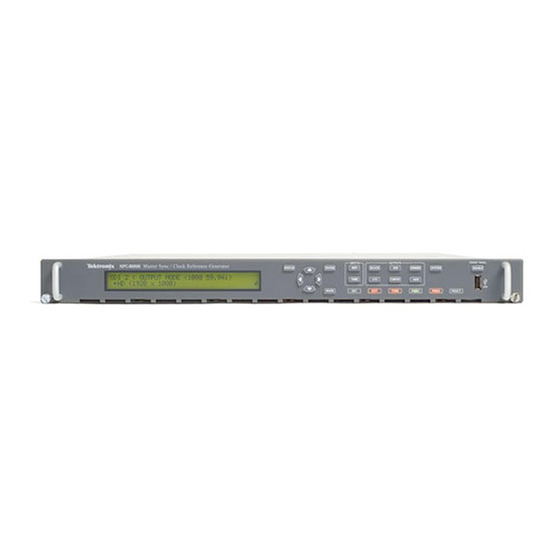

Preface Figure i: SPG8000A front and rear panels Optional GPS / GLONASS Option GPS adds an integrated receiver to the SPG8000A that can receive both GPS and GLONASS signals. When connected to an external antenna that supplies receiver the standard GPS and/or GLONASS RF signal (for example, SPG8000ANT), the SPG8000A can use the GPS/GLONASS system’s stable frequency reference.
Page 21 Preface Bitmap images can be downloaded to the SPG8000A’s ﬂash memory for arbitrary user-deﬁned test patterns. ID text, burn-in time code, circle, and color logo overlays can be added to any test pattern, and several ancillary data packet types, including ancillary time code and user-deﬁned packets, can be inserted into the SDI output signal.
Page 22: Methods Of Operation
PTP slave to generate baseband signals. Methods of operation This instrument can be operated using either the front panel or the SPG8000A Web Interface. It is recommended that you use the SPG Web Interface to operate the instrument since it is easier to use and more intuitive. The majority of this manual describes how to operate the instrument using the SPG8000A Web Interface.
Page 23: Product Documentation
Provides instructions for upgrading your SPG8000A instrument Instructions Optional PTP Instructions 061-4417-xx Provides instructions to conﬁgure the SPG8000A to operate in the PTP network and also provides information about the basics of PTP operation. Video Sync Pulse 077-0563-xx (ECO422D) Provides information for system...
Page 24 Preface SPG8000A User Manual...
Page 25: System Timing
System timing Frame reset signals The SPG8000A uses the three frame reset signals described below to output different video formats simultaneously. FRAME RESET 1 This frame reset signal runs at 2.997 Hz and supports the 1/1.001 system signal, and is used by the following video formats. These signals are synchronized with each other.
Page 26: Gps And Glonass Signal Quality (Option Gps Only)
3023. This value indicates that the receiver supports GPS and GLONASS signals. Figures of Merit (FOM) The SPG8000A generator uses Figures of Merit (FOM) to measure and track GPS and/or GLONASS signal quality. These numbers are a compendium of the GPS and/or GLONASS signal quality and the processes that occur as the instrument progresses through the states needed to lock on to the GPS and/or GLONASS signal.
Page 27 FOM_THRESHOLD is a user adjustable setting. Internal and External LEDs are both on only when REF is Genlock and there is loss of lock. This will cause the Internal LED to be GREEN and the External LED to be RED. SPG8000A User Manual...
Page 28: Table 1: Figures Of Merit For Gps And/Or Glonass Signal Quality (Option Gps Only)
This state normally lasts 60 seconds with good GPS and/or GLONASS signal quality. Adjust phase This means that the instrument is adjusting the time base or frame timing to correctly line up with the GPS and/or GLONASS signal. SPG8000A User Manual...
Page 29: Time Flow Block Diagram
The following time ﬂow diagram shows time information is used at different points in the system. In particular, it shows how the different user inputs and conﬁguration settings combine with the time base to create the timecode. An asterisk (*) denotes points of possible user input. SPG8000A User Manual...
Page 30: Figure 1: Time Flow Block Diagram
System timing Figure 1: Time ﬂow block diagram SPG8000A User Manual...
Page 31 0:00:00 January 1, 1958. Proposed standard SMPTE 404M deﬁnes the SMPTE Epoch at that same moment. There are exactly 8040 days and 19 leap seconds between the SMPTE Epoch (TAI) and the GPS Epoch. SPG8000A User Manual...
Page 32 See the speciﬁc output menu for details. Time Zone Offset *. The SPG8000A has a selectable offset between UTC and the local time, usually representing the local time zone. This offset can be speciﬁed in hours+minutes+seconds, allowing speciﬁcation of time zones...
Page 33 DST Change *. Daylight Saving Time (DST) changes twice a year in many time zones, but some locations do not observe daylight savings time. The SPG8000A has a user programmable DST adjustment to the time zone offset that is made by adding or subtracting a speciﬁed amount from the current time setting.
Page 34 Black within the pre-program leader. GPI Out. The instrument has two General Purpose Interface (GPI) outputs, either of which may be conﬁgured to begin when the program time matches a speciﬁed alarm time. SPG8000A User Manual...
Page 35: Web User Interface
Enter the IP address of the instrument in a supported Web browser to open the SPG8000A Web Interface. (See Figure 5.) Click the various tabs to access the instrument settings and controls as you would using the front panel buttons.
Page 36: Elements Of The Web User Interface
NOTE. A red exclamation mark next to a menu item indicates that an alert exists. Click the item to view the alert details. Figure 2: Example SPG8000A Web User Interface window SPG8000A User Manual...
Page 37: Table 2: Elements Of The Web User Interface
The system settings includes Status, Presets, General Settings, SNMP Settings, GPI Settings, Options, and Diagnostics submenus. Click on the arrow next to the desired setting group to access the submenu for that group. For more information, see the System menu section. (See page 139.) SPG8000A User Manual...
Page 38 For information about the possible states for each indicator, see the SPG8000A Installation and Safety Instructions. Click on Help to open a separate browser window that opens to the Tektronix SPG product Web page. Click on Refresh to refresh the Web user interface.
Page 39: Snmp Remote Control
SNMP remote control When the SPG8000A is connected to an Ethernet network, you can conﬁgure the instrument to send SNMP traps to an NMS (Network Management Station) when certain errors are detected. If you intend to use SNMP commands to control the instrument, you must conﬁgure SNMP parameters.
Page 40: Download The Mib
You can download the SPG8000 MIB ﬁle from the SNMP Settings submenu under the System menu. (See page 146, SNMP Settings submenu.) The SPG8000, SPG8000A, and SPG8000A share the same MIB ﬁle. Some of the commands in the ﬁle will apply to features and functions available only on the SPG8000 and SPG8000A.
Page 41: How To Backup/Restore Presets And User Data
USB drive. The restore operation expects to copy ﬁles from this same directory. All of the copy operations will create new directories/ﬁles on either the SPG8000A or the USB drive as needed. If a ﬁle with the same name exists in the destination location, it will be overwritten.
Page 42: Memory Requirements
When all of the user data is copied, every user ﬁle except for the FPGA conﬁguration ﬁles will be copied. This function is useful in that all user-created ﬁles can be saved, restored, or copied to other SPG8000A instruments. User ﬁles are deﬁned as any ﬁle that exists in the /app/F0 directory on the instrument.
Page 43: Backup/Restore Procedure
If the USB drive or the ﬂash memory on the instrument ﬁlls up before the backup or restore operation completes, an error message is displayed. Press the ENTER or BACK button to clear the error message. (See page 18, Memory requirements.) SPG8000A User Manual...
Page 44 10. Press the ENTER button to unmount the USB drive. After the message “You may now safely remove the USB drive” is displayed, the menu readout should change to System : USB (Not mounted). 11. Remove the USB drive from the instrument. SPG8000A User Manual...
Page 45: How To Transfer Or Install User Files
Perform the following steps to transfer or install user ﬁles using FTP: 1. Connect the instrument to your local Ethernet network or to a standalone Windows PC. See the SPG8000A Installation and Safety Instructions for information about installing the instrument on a network.
Page 46: Figure 3: Example Ftp View Of The Spg8000A File Structure
How to transfer or install user ﬁles Figure 3: Example FTP view of the SPG8000A ﬁle structure 5. Use Windows Explorer to drag and drop user ﬁles to or from the instrument. CAUTION. If you are installing custom signal ﬁles on the instrument such as test signals or logo and ID text overlays, the signal ﬁles must be installed in the...
Page 47: To Transfer Or Install User Files Using A Usb Drive
You can use a USB drive connected to the USB port on the front of the instrument to transfer or install user ﬁles. To transfer user ﬁles from Perform the following steps to transfer user ﬁles from an SPG8000A generator to a USB drive: an instrument to a USB drive 1.
Page 48 ﬁles.) 1. Insert a USB memory device containing the user ﬁles you want to install on the SPG8000A generator into the USB port on the front of the instrument. 2. Verify that the USB device is properly installed: a.
Page 49 ﬁles must have a .xml ﬁle name extension. TEXT – Use this directory to install only ID text overlay ﬁles. The ID text ﬁles must have a .txt ﬁle name extension. (See page 100, ID Text overlay settings.) SPG8000A User Manual...
Page 50: Figure 5: File Structure For Installing Custom User Files
How to transfer or install user ﬁles The following ﬁgure shows how the required directory structure for installing custom user ﬁles looks using Windows Explorer. Figure 5: File structure for installing custom user ﬁles SPG8000A User Manual...
Page 51: How To Upgrade The Instrument Firmware
Installed ﬁrmware version number 2. Verify the latest version of software at the Tektronix Web site: a. On a computer, use a Web browser to navigate to the following Tektronix Web site: www.tek.com/downloads. b. On the Downloads Finder Web page, search by model number (such as SPG8000A) and ﬁlter by software and software type to locate the...
Page 52 Connect the instrument and computer to your local Ethernet network. See the SPG8000A Installation and Safety Instructions for information about installing the instrument on a network. b. Press the SYSTEM button to access the SYSTEM menu.
Page 53: Firmware Upgrade Overview
3. On the USB device, create a directory named SpgUpgrd. CAUTION. To prevent upgrade failure, be sure to correctly name the upgrade directory. The directory name is case sensitive, with the “S” and the “U” in SpgUpgrd being upper case. SPG8000A User Manual...
Page 54 ENTER button. A conﬁrmation message is displayed as shown below. NOTE. If the instrument displays the message ERROR: SpgUpgrd/ﬁrmware.pkg not found, make sure you have the correct directory path on the USB device and then restart this procedure at step 6. SPG8000A User Manual...
Page 55 (Mounted), and then press the ENTER button. c. Remove the USB device from the instrument when the message You may now safely remove the USB drive appears. 16. Proceed to Verify the ﬁrmware upgrade and reinstall user ﬁles. (See page 34.) SPG8000A User Manual...
Page 56: Network Firmware Upgrade
Use the following steps to upgrade the instrument ﬁrmware using a network connection: 1. Connect the instrument and a Windows PC to your local Ethernet network or directly connect the instrument to a Windows PC. See the SPG8000A Installation and Safety Instructions for information about installing the instrument on a network.
Page 57: Figure 6: Sample Of Transfer.exe Window After The Upgrade Is Complete
Figure 6: Sample of transfer.exe window after the upgrade is complete 4. If the instrument does not reboot at the completion of the ﬁrmware upgrade, remove and then reconnect the power cable. 5. Proceed to Verify the ﬁrmware upgrade and reinstall user ﬁles. (See page 34.) SPG8000A User Manual...
Page 58: Verify The Firmware Upgrade And Reinstall User Files
4. Press the left (◄) or right (►) arrow button to select a network speed (10BaseT, 100BaseT, or 1000BaseT), and then press the ENTER button. If you do not know your network speed, the 100BaseT selection is recommended. SPG8000A User Manual...
Page 59 The upgrade process may take up to 15 minutes to complete. 8. When the upgrade is complete, the instrument should reboot. If it does not, cycle the power. If you continue to experience an upgrade problem, contact Tektronix customer support or your local Tektronix representative for assistance. SPG8000A User Manual...
Page 60: How To Operate An Instrument With Two Power Supplies (Option Dpw Only)
Power Supply modules. The rear panel of each Power Supply module has a STATUS LED that matches the status shown on the PWR1 and PWR2 indicators. See the SPG8000A Installation and Safety Instructions for information about the power supply status indicators.
Page 61: To Conﬁgure The Preferred (Active) Supply
The following procedure uses the front panel controls on the instrument to conﬁgure the preferred (active) supply. You can also use the System > General Settings submenu in SPG8000A Web Interface to conﬁgure the preferred supply. (See page 144, General Settings submenu.) 1.
Page 62 PWR1 and PWR2 indicators on the front panel. 7. If status of the supply is Inactive, press the ENTER button to change the status to Active, Preferred. The front-panel indicator for the selected supply should change to bright green. SPG8000A User Manual...
Page 63: To Hot-Swap A Power Supply Module
It is recommended that you conﬁgure the supply with the most temperature weighted hours to be used as the primary preferred supply. This allows for the newer supply to be preserved so it can provide the best possible backup should the primary supply fail. SPG8000A User Manual...
Page 64: Figure 7: Removing A Power Supply Module
How to operate an instrument with two power supplies (Option DPW only) Figure 7: Removing a Power Supply module SPG8000A User Manual...
Page 65: How To Use Stay Genlock
NOTE. The following procedures use the front panel controls on the instrument to enable Stay GenLock . You can also use the Reference menu in SPG8000A Web ® Interface to enable Stay GenLock . (See page 79, Reference menu.) ®...
Page 66 How to use Stay Genlock ® SPG8000A User Manual...
Page 67: Aes Menu
When Option AG is installed, use this menu to conﬁgure the AES audio output settings such as the frequency, amplitude, resolution, timing offset, and audio/video synchronization. The following ﬁgure shows the AES menu including the Global Settings and Channel Parameters. Figure 8: AES menu SPG8000A User Manual...
Page 68: Global Settings
Use this to set the timing offset of the Word Clock and DARS outputs relative to the genlock signal or the internal reference signal. AES Word Clock Output Sets the signal level of the Word Clock output. Use the drop-down list to select 1 Volt (AC) or 5 Volt (DC). SPG8000A User Manual...
Page 69: Channel Parameters
2.75 seconds, and silent for 0.25 seconds; the click occurs during this silence. When Audio Click is None, the Audio Tone selected with the Frequency setting is output continuously. Audio Click makes it easy to identify any of the four output channels. SPG8000A User Manual...
Page 70: Aes Menu Factory Default Settings
Free Run 0.0 μsec Delay AES Word Clock Output 1 Volt (AC) Table 5: AES Channel Parameters factory default settings Menu item name Frequency Amplitude Audio Click Ch. 1 to Ch. 8 1000 Hz -20.0 dB None SPG8000A User Manual...
Page 71: Black Menu
Likewise, Black outputs 4–5 are a group that must use the same HD tri-level sync rate. Both groups can output the same rate or they can output different rates. When the instrument is in Factory mode, a Calibration menu option is available. See the SPG8000A Service Manual for more information. SPG8000A User Manual...
Page 72: Black Output Settings
The CW 10 MHz format selection appears only for the Black 3 output. Field Reference This menu item is available only for non-HD formats. Use the drop-down list to select Enable or Disable for the ﬁeld reference on the selected Black output. SPG8000A User Manual...
Page 73: Black Timing Settings
± 562 ± 37.0370 ± 10.00 1080 23.98p ± 562 ± 37.0741 ± 10.00 720 60p ± 375 ± 22.2222 ± 10.00 720 59.94p ± 375 ± 22.2444 ± 10.00 720 50p ± 375 ± 26.6667 ± 10.00 SPG8000A User Manual...
Page 74: Black Timecode Settings
10 to 20 (lines 14 and 16 are recommended). For PAL, you can select lines between 6 and 22 (lines 19 and 21 are recommended). Select the Enable check box for the selected line to enable or disable the output of a VITC signal. SPG8000A User Manual...
Page 75: Blank On Reference Unlock Settings
HD tri-level sync rate. Both groups can output the same rate or they can output different rates. The HD tri-level sync rate setting limits which signal formats are available for the selected group of Black outputs. SPG8000A User Manual...
Page 76: Black Menu Factory Default Settings
Black outputs 4–5 are available only when Option BG is installed. These settings appear only for non-HD formats. This setting appears only when the format is set to NTSC. These settings appear only for the Black 2 output. SPG8000A User Manual...
Page 77: Composite Menu (Option Bg Only)
Composite menu (Option BG only) When Option BG is installed, use the Composite menu to view and conﬁgure the composite video outputs. The following ﬁgure shows the Composite menu with the Composite 1 submenu expanded. Figure 10: Composite menu SPG8000A User Manual...
Page 78: Composite Output Settings
100% Color Bar Over Red SMPTE EG1 Color Bar 75% Color Bar Over Red 40% Flat Field 40% Flat Field Convergence Convergence Pluge and Luma Reference Pluge and Luma Reference Shallow Ramp CCIR 17 NTC7 Combination CCIR 18 NTC7 Composite SPG8000A User Manual...
Page 79: Composite Timing Settings
Local (No DST): Uses the local time of day without Daylight Savings Time offset as the timecode. UTC: Uses Coordinated Universal Time as the timecode. Program Time: Uses the program time counter as the timecode. SPG8000A User Manual...
Page 80 VITC on NTSC, but if needed, it can be disabled by this menu item. This menu item appears only when NTSC or NTSC-J is set as the signal format for the selected Composite output. SPG8000A User Manual...
Page 81: Composite Menu Factory Default Settings
Line Number: NTSC/NTSC-J: 14 PAL: 19 Output: Disable VITC 2 Line Line Number: NTSC/NTSC-J: 16 PAL: 21 Output: Disable Enable 30 Drop Frame: Enabled This menu item appears only when the format is set to NTSC or NTSC-J. SPG8000A User Manual...
Page 82 Composite menu (Option BG only) SPG8000A User Manual...
Page 83: Dolby-E Conﬁguration Menu (Option Dbt Only)
When Option DBT is installed, use the Dolby-E Conﬁguration menu to view and conﬁgure settings for Dolby-E channel 1 (CH1) or channel 2 (CH2). The following ﬁgure shows the Dolby-E menu with the DOLBY-E-CH1 submenu expanded. Figure 11: Dolby-E Conﬁguration menu SPG8000A User Manual...
Page 84: Dolby-E Channel Conﬁguration
7 to line 70. Dolby-E Description Use this menu item to label each of the available programs (1-8) with a descriptive text identiﬁer. The default program description is Tektronix Program X, where X is the program number (1-8). Dolby-E METADATA Dialnorm Use this menu item to set the dialnorm setting of the Dolby-E signal.
Page 85 Use this menu item to set the LtRt surround mix level of the Dolby-E signal. This parameter indicates what level shift should be applied to the surround channels before adding them to the left and right channels when downmixing to an LtRt output. This parameter is part of the extended BSI. SPG8000A User Manual...
Page 86 For example, if you set the Dolby E program to 5.1, the Dolby E bit depth setting remains as it is and the user interface for the bit depth control shows both 16-bits and 20-bits as being available. SPG8000A User Manual...
Page 87: Dolby-E Generated Formats
2.398 kHz 2.398 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 239.8 Hz 359.7 Hz 479.5 Hz 599.4 Hz 1198.8 Hz 119.9 Hz 1798.2 Hz 2397.6 Hz SPG8000A User Manual...
Page 88: Table 13: Dolby E Generated Formats - 24 Hz Frame Rate
2.400 kHz 2.400 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 120 Hz 240 Hz 360 Hz 480 Hz 600 Hz 1200 Hz 1800 Hz 2400 Hz SPG8000A User Manual...
Page 89 2.400 kHz 2.400 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 120 Hz 240 Hz 360 Hz 480 Hz 600 Hz 1200 Hz 1800 Hz 2400 Hz SPG8000A User Manual...
Page 90: Table 14: Dolby E Generated Formats - 25 Hz Frame Rate
1.0 kHz 1.0 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 125 Hz 250 Hz 350 Hz 475 Hz 600 Hz 1200 Hz 1800 Hz 2400 Hz SPG8000A User Manual...
Page 91: Table 15: Dolby E Generated Formats - 29.97 Hz Frame Rate
2.997 kHz 2.997 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 119.9 Hz 239.8 Hz 359.7 Hz 479.5 Hz 599.4 Hz 1198.8 Hz 1798.2 Hz 2397.6 Hz SPG8000A User Manual...
Page 92: Table 16: Dolby E Generated Formats - 30 Hz Frame Rate
3.0 kHz 3.0 kHz Multitone –18 dBFS –20 dBFS –22 dBFS –24 dBFS –26 dBFS –28 dBFS –30 dBFS –32 dBFS 120 Hz 240 Hz 360 Hz 480 Hz 600 Hz 1200 Hz 1800 Hz 2400 Hz SPG8000A User Manual...
Page 93: Table 17: Dolby E Loudness Measurements - 23.98 And 24 Hz Frame Rates
Dolby-E Conﬁguration menu (Option DBT only) The following tables list the Dolby-E loudness measurements for each program. The measurements were made with a Tektronix WFM8000 Series waveform monitor using the ATSC A/85 2013 Loudness preset. Dialnorm values of –23 dB and –24 dB are used by default within the instrument, depending on the Dolby-E level setting.
Page 94: Table 18: Dolby E Loudness Measurements - 25 Hz Frame Rate
5.1+2 –20 dBSF –12.3 –16.9 –18 dBSF –10.3 –14.9 Multitone –17.5 –28.5 –20 dBSF –12.3 –18 dBSF –10.3 Multitone –17.5 –20 dBSF –16.9 –16.9 –16.9 –16.9 –18 dBSF –14.9 –14.9 –14.9 –14.9 Multitone –20.1 –23.6 –27.0 –28.5 SPG8000A User Manual...
Page 95: Dolby-E Conﬁguration Menu Factory Default Settings
Bit Depth: 20 bits Start Position: Ideal Line Number: 24 Dolby-E Description Program Description 1: Tektronix Program 1 Program Description 2: Tektronix Program 2 Program Description 3: Tektronix Program 3 Program Description 4: Tektronix Program 4 Program Description 5: Tektronix Program 5...
Page 96 Dolby-E Conﬁguration menu (Option DBT only) SPG8000A User Manual...
Page 97: Embedded Menu (Option Sdi Only)
Set the embedded audio frequency Set the embedded audio amplitude Set the click rate for the selected channel Click Embedded 1 to show the selections for the SDI 1 outputs; clicking Embedded 2 shows the selections for the SDI 2 outputs. SPG8000A User Manual...
Page 98: Figure 12: Partial Embedded Menu Diagram
You may have to scroll down the window to see the Secondary Output selection. NOTE. The SPG8000A Web Interface has an issue where the column headings in the Embedded menu do not align with their associated columns. The following ﬁgure shows the proper alignment of the column headings.
Page 99 (bottom) BNC connector of the selected SDI output: Tones, No Audio, or Mute Audio. The SDI 1B audio output is the same format and sample structure as the SDI 1A audio output. The same is true for the SDI 2 connectors. SPG8000A User Manual...
Page 100: Embedded Menu Factory Default Settings
Audio Click: None Channel Origin: A1-1 through A4-4 Tones Secondary Output The Link B, Group 1–4 settings are available only when the SDI output mode is set to 3G-Level B. (See page 87, SDI menu (Option SDI only).) SPG8000A User Manual...
Page 101: Ltc Menu
Local (No DST): Uses the local time of day without Daylight Savings Time offset as the timecode. UTC: Uses Coordinated Universal Time as the timecode. Program Time: Uses the Program Time counter as the timecode. SPG8000A User Manual...
Page 102: Ltc Menu Factory Default Settings
Table 23: LTC button menu factory default settings Menu item name Settings LTC 1 to LTC 4 Use as Input Not selected (LTC 1 only) Source Local (DST) Offset + 00:00:00:00 Type 30 fps drop frame Level 2.0 V Delay 0.00 msec SPG8000A User Manual...
Page 103: Reference Menu
NTSC Burst with 10 Field ID. Uses the NTSC Black burst with 10 Field ID signal applied to the REF input connector as the timing reference. PAL Burst. Uses the PAL Black burst signal applied to the REF input connector as the timing reference. SPG8000A User Manual...
Page 104: Ptp
Jam Phase. Adjusts the module timing to match the recovered PTP immediately but will typically cause a sync “shock” to the system. Fast Slew. Adjusts the module timing to match the recovered PTP at a rate 25 times faster than the legal rate without jumping. SPG8000A User Manual...
Page 105: Gps
DC block is being used. Displays solid red if the connected antenna is shorted. A shorted antenna will not damage the GPS module. If a splitter is used on the antenna, it may SPG8000A User Manual...
Page 106 Power On Default preset. The Power On Default preset saves the conﬁguration parameters in both the TG8000 mainframe and the installed modules, which helps the instrument power on faster in the event of a power outage or interruption. SPG8000A User Manual...
Page 107 To conﬁgure the output warning, use the Reference menu. Use the drop-down list to select the FOM (quality of the GPS and/or GLONASS signal) value that will trigger warning indicators. SPG8000A User Manual...
Page 108: Genlock Timing Settings
± 562 ± 37.0370 ± 10.00 1080 23.98p ± 562 ± 37.0741 ± 10.00 720 60p ± 375 ± 22.2222 ± 10.00 720 59.94p ± 375 ± 22.2444 ± 10.00 720 50p ± 375 ± 26.6667 ± 10.00 SPG8000A User Manual...
Page 109: Reference Menu Factory Default Settings
These menu items appear only when Option GPS is installed and the reference source is set to GPS Signal. This menu item appears only when Option GPS is installed. This menu item appears only when Option GPS is installed with a GPS/GLONASS receiver and when the ﬁrmware version is 1.5 or later. SPG8000A User Manual...
Page 110 Reference menu SPG8000A User Manual...
Page 111: Sdi Menu (Option Sdi Only)
SDI 1 or SDI 2 to expand the selections to show the menus for each generator. The menu selections are similar, but independent for each output. The following ﬁgure shows the SDI menu with the SDI 1 submenu expanded. Figure 15: SDI menu with the SDI 1 submenu expanded SPG8000A User Manual...
Page 112: Sdi Signal Submenu
(See page 114, How to select an SDI output signal.) SD. Provides a SMPTE 259 compliant signal that runs at 270 Mbps. HD (1920 × 1080). Provides a 1080-line, SMPTE 274M compliant signal. HD (1280 × 720). Provides a 720-line, SMPTE 296M compliant signal. SPG8000A User Manual...
Page 113 Signal or Test Signal/Black for the two streams. Format. Use the drop-down list to select the signal format for the selected SDI output. The available format choices depend on the selected Output Mode selection. (See page 115, Available SDI output signals.) SPG8000A User Manual...
Page 114 HD (1.485 Gb/s) and SD (270 Mb/s) formats only. Use the drop-down list to set the timing relative to Serial (0H) or Analog (DAC). In the serial mode (default), the output timing does not include compensation for the delay through a nominal D-to-A converter. SPG8000A User Manual...
Page 115 2xHD Stream Content. This setting is active only when the signal format is set to 2×HD. It selects the content for the ﬁrst and second HD signals on link A and link B. Use the drop-down list to select Test Signal/Test Signal, Test Signal/Black, or Black/Test Signal. SPG8000A User Manual...
Page 116: Sdi Conﬁgure Zoneplate Submenu
(See page 124, SDI Zone plate signals.) Zone plate parameters The following ﬁgure shows an example of the zone plate parameters for a circle zone plate. settings Figure 17: Circle zone plate conﬁguration parameters SPG8000A User Manual...
Page 117: Figure 18: Conﬁgure Zoneplate Video Menu Selections
A colored zone plate pattern can be created by enabling or disabling individual channels. When the XYZ color space is used, the resultant patterns will show some chroma in all combinations of the X/Y/Z channel settings, due to the inherent encoding of this color space. SPG8000A User Manual...
Page 118: Figure 19: Conﬁgure Zoneplate Parameters For All Zone Plate Signals
Waveform. Use this parameter to set the waveform shape. Use the drop-down list to set the waveform to a Sine, Triangle, or Square wave. Save As. Use this parameter to save the setups in one of the custom ﬁles. Select the custom ﬁle from the drop-down list. SPG8000A User Manual...
Page 119: Sdi Moving Picture Submenu
Vertical Step. Enter the number of lines to be scrolled per frame set in the Period menu item below. Set the value from –252 to +252 in 1-line steps. Period. Enter the time interval between occurrences of the scrolling. Set the value from 1 to 16 in 1-frame steps. SPG8000A User Manual...
Page 120: Sdi Video Submenu
Cr Enable. Select this check box to turn on the Cr component (YCbCr format), R component (GBR format), or Z component (XYZ format) of the serial digital video signal. Clear the check box to disable the Cr component. SPG8000A User Manual...
Page 121 1 second then set to Black and muted for 4 seconds. Use this signal to measure the AV delay through a system with the AV Timing mode on an appropriate Tektronix waveform monitor or rasterizer. EDH Enable. (SD output mode only.) Select this check box to turn on the insertion of EDH packets.
Page 122: Sdi Overlay Submenu
The following ﬁgure shows the Overlay submenu. NOTE. You can store overlay functions, including text, in the instrument presets so that the overlay is restored on power up. (See page 143, Presets submenu.) Figure 22: SDI Overlay submenu SPG8000A User Manual...
Page 123: Figure 23: Sdi Overlay Logo Settings
25% of the active video for the SD-525 format, but less than 4% of a 1920×1080 picture. Therefore, you might need to choose a bitmap size appropriate for the target display resolution when using the logo overlay. SPG8000A User Manual...
Page 124 Unicode characters are used. The text ﬁle can also include embedded newline characters to create text overlays spanning multiple lines. When the string is entered from the front panel, it is limited to 30 characters in length, and can contain only standard ASCII characters. SPG8000A User Manual...
Page 125: Figure 24: Sdi Overlay Id Text Settings
The position of the text overlay is referenced from the top left of the active picture. Y Position. Enter the vertical position of the text. The position is set as a percentage of active picture height. You can set the value from 0.0% to 99.0% in 0.1% steps. SPG8000A User Manual...
Page 126: Figure 25: Sdi Overlay Circle Settings
You can set the value from -50.0% to 50.0% in 0.1% steps. Diameter. Enter the diameter of the circle. The diameter is set as a percentage of active picture height. You can set the value from 0.0% to 100.0% in 0.1% steps. SPG8000A User Manual...
Page 127: Figure 26: Sdi Overlay Burnt-In Timecode Settings
You can set the value from -50.0% to 50.0% in 0.1% steps. Second Line Enable. Select the check box to enable a second line of timecode readout (YY/MM/DD) on the output signal. SPG8000A User Manual...
Page 128: Sdi Ancillary Data Submenu
Data Words (UDW) comprise the actual payload carried in the ancillary data. The instrument addresses User Data Words 000 through 254. Ancillary Data Payload The following ﬁgure shows the SDI Ancillary Data Payload settings. settings Figure 27: SDI Ancillary Data Payload settings SPG8000A User Manual...
Page 129 Checksum. Use this menu item to set the hex value of the Checksum. You can set the Checksum from 0x00 to 0xFF (in 8-bit mode), or from 0x000 to 0x3FF (in 10-bit mode). If the Auto-Calculate check box is selected, the checksum is calculated automatically. SPG8000A User Manual...
Page 130: Figure 28: Sdi Ancillary Data Output Settings
Field1 Line. Enter a line number in Field 1 to carry the ancillary data payload. This menu setting is available only in interlaced formats. Field2 Line. Enter a line number in Field 2 to carry the ancillary data payload. This menu setting is available only in interlaced formats. SPG8000A User Manual...
Page 131 AFD is deﬁned in SMPTE 2016-1, and mapping AFD and bar data is deﬁned in SMPTE 2016-3. The packet format appears as shown here: NOTE. This is an example only. Inserting an AFD packet will not affect the SDI video produced. SPG8000A User Manual...
Page 132: Figure 29: Afd Code "1001" For A 16:9 Coded Frame
Figure 29: AFD code “1001” for a 16:9 coded frame Therefore, for this AFD code set the data words as follows: UDW [000]: 0x4C UDW [001]: 0x00 UDW [002]: 0x00 UDW [003]: 0x00 UDW [004]: 0x00 UDW [005]: 0x00 UDW [006]: 0x00 UDW [007]: 0x00 SPG8000A User Manual...
Page 133: Sdi Timecode Submenu
UTC: Uses Coordinated Universal Time as the timecode. Program Time: Uses the program time counter as the timecode. NOTE. The Local (DST), Local (No DST) and UTC menu items are available only when Option GPS is installed in the instrument. SPG8000A User Manual...
Page 134 Select this check box to enable or disable the Drop Frame mode for the 30 frame per second timecode format. This menu item is available only when the frame or ﬁeld rate for the current format is 29.97 or 59.94. SPG8000A User Manual...
Page 135: Sdi Menu Factory Default Settings
Monitor Black-Dark Gray Step Scale Pulse Bar Color Pulses Timing Co-siting Pulse SDI Matrix Frame Picture No BMP ﬁles found in /SDI7/PICTURE/ Moving Picture Horizontal Step 0 Sample(s) Vertical Step 0 Line(s) Period 1 Frame(s) Random Disable SPG8000A User Manual...
Page 136 0.0 % APH Diameter 90.0 % APH Overlay : Burnt-In Timecode Mode Disable X Position 5.0 % APW Y Position 5.0 % APH Disable Second Line Overlay : Blink Text/Circle Blink Overlay : Border Text/Circle Border Enable SPG8000A User Manual...
Page 137 0x01 0x00 SDID 0x01 (1) 0x00 0x00 (Auto: 0x202) Auto-Calculate CS Enable Field 1 Only Field 1 Line Field 2 Line Sample Offset 1928 (VANC) Video Channel Luma Link Location Link A Stream Location HD Stream 1 SPG8000A User Manual...
Page 138: How To Select An Sdi Output Signal
3. Select the sample structure and depth in the SDI Signal submenu. (See page 88, Signal Standard settings.) 4. Select the test signal that you want to generate in the SDI Signal submenu. (See page 90, Signal Selection setting.) SPG8000A User Manual...
Page 139: Table 27: Sdi - 3G Level A (1920 × 1080)
4:4:4 12b Table 30: SDI – 3G Level B (1920 × 1080) Structure 59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf YCbCr 4:4:4 YCbCr+A YCbCr 4:2:2 YCbCr+A 4:4:4 GBR+A SPG8000A User Manual...
Page 140: Test Signal Sets
COLOR BAR signal set, a signal in the Color Bars signal set is output. NOTE. Picture displays operate best with uncompressed BMP images (24 bits and 32 bits true color). Picture displays do not work with RLE8 or RLE4 BMP compression. SPG8000A User Manual...
Page 141: Table 38: Standard Sdi Test Signal Sets
(Y) channel. Next, the B−Y Valid Ramp spans from yellow to cyan, across the valid range of the Cb color difference channel. Last, the R−Y Valid Ramp spans from cyan to red, across the valid range of the Cr color difference channel. SPG8000A User Manual...
Page 142 (red, green, blue, cyan, magenta, and 75% Magenta Field, 75% Yellow Field yellow). These signals are not part of the factory installed signal sets. You must install the enhanced signal sets to access these signals. (See Table 39 on page 122.) SPG8000A User Manual...
Page 143 (4:4:4 and fast-progressive 3G formats only) Three channel pattern with packet frequencies of 15, 18, 21, 24, 27, and 30 MHz. Y Multiburst 35–60 MHz (Fast-progressive 3G formats only) Y channel pattern with packet frequencies of 35, 40, 45, 50, 55, and 60 MHz. SPG8000A User Manual...
Page 144 Includes single-pixel wide lines at the extreme edges of the active video area, marking the complete production aperture. Vertical lines are implemented as single-sample pulses with no edge ﬁltering, so this pattern is not legal as a broadcast signal. SPG8000A User Manual...
Page 145 Timing Co-siting Pulse One single-sample wide pulse in the center of the image, used to show the timing relationship and alignment between chroma and luma channels. Different amplitudes are used to distinguish the three channels. SPG8000A User Manual...
Page 146: Table 39: Enhanced Sdi Test Signal Sets
Includes color ﬁelds for six primary and secondary colors at both 100% and 75% values SMPTE RP431-2 color patches Includes full ﬁeld patterns for each of the Black-White and Black-Dark Gray steps, plus the “–1” and “–2” color patches SPG8000A User Manual...
Page 147: Sdi Picture File Generation
If the ﬁle has unshaped edges, then the output may have excessive ringing even when not in motion. If this is a concern, then the picture ﬁle should be processed to have gradual transitions at the edges before it is downloaded. SPG8000A User Manual...
Page 148: Sdi Zone Plate Signals
Circle Frequency at will, and the system will adjust four other dependent parameters to maintain the pattern as a circle. However, if you change the underlying dependent parameters individually the pattern may change to be something other than a circle. SPG8000A User Manual...
Page 149 Since the ZP Amplitude parameter is adjustable for each of these signals, you can measure the response at 100%, 60%, or any other level as needed. These same techniques can be used to measure vertical or diagonal response, by selecting the appropriate zoneplate signal. SPG8000A User Manual...
Page 150 5. When you are done changing parameters, go to the Save As: menu item at the bottom of the menu and select either Custom 1 or Custom 2 to save the signal modiﬁcations. SPG8000A User Manual...
Page 151 Each standard zone plate signal has a pattern control parameter. (See Table 40.) This pattern control parameter is unique to the zone plate signal it is associated with. SPG8000A User Manual...
Page 152: Table 40: Zone Plate Pattern Control Parameters
DC-max-DC sweeps per ﬁeld (sweeps = )/2). For example, in a standard with 1080 lines per ﬁeld, a vertical sweep frequency of 2160 c/aph would result in one complete frequency sweep down the picture. SPG8000A User Manual...
Page 153: Zone Plate Dependent Parameters
DC to 10 c/aph from the top of the picture to the bottom. To center the “DC point” at mid-screen, set K to –2 times K The Vertical Sweep zone plate is a “K -only” zone plate. (See Figure 35.) Figure 32: A “K -only” zone plate SPG8000A User Manual...
Page 154 For example, K = 9.0 will result in approximately 12 cycles per line in a format with a 4:3 aspect ratio; the same setting will yield about 16 cycles per line when the ratio is 16:9. SPG8000A User Manual...
Page 155: Figure 33: A "K X -Only" Zone Plate
The frequency will increase until it reaches the maximum for the active format, then the phase of the signal will “ﬂip” by 180° (the sine wave will become “negative”) and the frequency will continue to “increase” through DC, when the cycle will begin again. SPG8000A User Manual...
Page 156: Figure 34: A "K -Only" Zone Plate
R is the aspect ratio (width ÷ height) of the active format. aspect The Horizontal Sweep zone plate (H Sweep) is a “K -only” zone plate. (See Figure 35.) Figure 34: A “K -only” zone plate SPG8000A User Manual...
Page 157 To see the picture effects of this parameter, select any of the standard zone plates and vary K . Note that the K coefﬁcient may be positive or negative; the sign will determine the direction of the pattern’s motion. SPG8000A User Manual...
Page 158: Figure 35: A "K Y -Only" Zone Plate
1.0 will result in an apparent K of 10.0 after ten seconds, 20.0 after twenty seconds, and so forth. The temporal frequency will increase to maximum, return to 0.0, and repeat the cycle as long as the value of remains greater than zero. SPG8000A User Manual...
Page 159: Status Menu
In addition to the LTC status display on the top right of the display, there are indicators to provide a quick view of the instrument status. More information on these indicators is available under the System tab. (See page 139, System menu.) SPG8000A User Manual...
Page 160 SDI output (1 or 2). Audio This section of the Status display appears only when Option SDI is installed; it shows the status of the audio on each of the embedded audio groups and channels for the selected SDI output. SPG8000A User Manual...
Page 161: Figure 37: Ltc Status Display
PTP master (primary and secondary) and PTP slave. The master status reports the clock quality and some of the ST2059-2 metadata parameters it is sending. The slave status reports the clock quality and some of the ST2059-2 metadata parameters it is receiving. SPG8000A User Manual...
Page 162 Status menu SPG8000A User Manual...
Page 163: System Menu
The INT, EXT, TIME, PWR1, PWR2, and FAULT indicators on the top right side of the SPG8000A Web Interface display provide a quick overview of the system status. If there are any problems, the color of the indicators change (such as red).
Page 164 Options. Use this submenu to view which options are installed in the instrument. (See page 152, Options submenu.) Diagnostics. Use this submenu to view the results of diagnostic tests for various components of the instrument. (See page 153, Diagnostics submenu.) SPG8000A User Manual...
Page 165: Status Submenu
Faults. If there are any instrument faults, this section contains a brief description of the fault. If no faults are detected, No Fault is displayed. Refer to the SPG8000A Installation and Safety Instructions for more information on the alert and fault error messages.
Page 166: Figure 40: Frame Resets Example
The ﬂash memory is used by the custom test signal, frame picture, logo, font, and text overlay ﬁles that you install in the instrument. When the amount of available memory is low, you might need to delete some of these custom ﬁles from memory before you can install new ﬁles. SPG8000A User Manual...
Page 167: Presets Submenu
Rename. Click the button to rename the selected preset from the drop-down list. When you click the Rename button, another dialog box appears where you can enter the new name. You can enter a text string of up to 32 characters. Click OK after entering the new name. SPG8000A User Manual...
Page 168: General Settings Submenu
For more information about how to operate an instrument with two power supplies, see the SPG8000A Installation and Safety Instructions. SPG A/V output EPOCH Selection. Use this setting to change the timing on the Black outputs.
Page 169: Ptp Network Settings Submenu
Wireshark on a Unicast system. In this case, hook the Wireshark PC to the SFP port and use the internal switch to mirror the trafﬁc. The PTP Network Settings submenu contains the following sections: PTP MAC Address. Switch Mode. DSCP Event Message Priority. DSCP General Message Priority. SPG8000A User Manual...
Page 170: Snmp Settings Submenu
SNMP traps. You can conﬁgure up to four IP addresses to which SNMP traps will be sent when error conditions are detected. NOTE. The default value for the SNMP trap addresses is all zeroes, which disables the trap outputs. SPG8000A User Manual...
Page 171 You can enter a string of up to 16 characters. Download SPG8000 MIB File. Click this link to download and open the SPG8000 MIB ﬁle. The SPG8000, SPG8000A, and SPG8000A share the same MIB ﬁle. Some of the commands in the ﬁle will apply to features and functions available only on the SPG8000 and SPG8000A.
Page 172 PS1 TWH. When enabled, the instrument sends an SNMP trap when Power Supply 1 is detected to have exceeded the temperature weighted hours limit. PS2 TWH. When enabled, the instrument sends an SNMP trap when Power Supply 2 is detected to have exceeded the temperature weighted hours limit. SPG8000A User Manual...
Page 173: Gpi Settings Submenu
System menu GPI Settings submenu The GPI Settings submenu conﬁgures the General Purpose Interface (GPI) inputs and outputs. See the SPG8000A Installation and Safety Instructions for information about the GPI interface. The following ﬁgure shows the GPI submenu. Figure 44: GPI Settings submenu This submenu contains the following menu items: Input Trigger Select.
Page 174 For example, if LTC is the selected time input but the timing between LTC and the genlock input does not meet the SMPTE 12M speciﬁcation. SPG8000A User Manual...
Page 175 Alarm Time. When enabled, sends an alarm signal to the selected GPI output for the one second when the program time counter matches the Alarm Time value conﬁgured in the TIME menu. (See page 170, Scheduled Time.) SPG8000A User Manual...
Page 176: Options Submenu
Options Enabled. This is a list of hardware and software options installed in the instrument. If your instrument has Option SDI installed, SDI 3G will be listed. If no options are installed, None is displayed. Option. This area displays a list and description of the installed options. SPG8000A User Manual...
Page 177: Diagnostics Submenu
GPI. When the instrument is in Factory mode, you can view additional diagnostic results and initiate speciﬁc diagnostic tests for servicing the instrument. See the SPG8000A Service Manual for more information about the Factory mode diagnostics. Mainframe diagnostic The following ﬁgure shows the diagnostic readouts for the Mainframe.
Page 178 If the fractional number is not within this range, then the instrument may have been miscalibrated, or the oscillator oven may have drifted out of speciﬁcation since the last calibration. In this case, you should consider calibrating the internal frequency of the SPG8000A User Manual...
Page 179 The error code numbers should all be “0” (zero). Non-zero numbers indicate a hardware problem with the instrument and that the instrument should be returned to Tektronix for service. This readout is not available from the instrument front panel. SPG8000A User Manual...
Page 180: Figure 47: Power Supplies Diagnostic Readouts (Load Test In Progress)
Hours. These readouts display the number of hours that each installed power supply module has been in the preferred (Active) and backup (Standby) states. If a power supply module is not installed, PS<1 or 2> not installed is displayed for that module. SPG8000A User Manual...
Page 181 (day, month, year). If a power supply module is not installed, PS<1 or 2> not installed is displayed for that module. Part No. These readouts display the Tektronix part number of each installed power supply module. If a power supply module is not installed, this readout displays 0 for that power supply.
Page 182: Figure 48: Main Board Voltages Diagnostic Readouts
Main board voltages. OK displays when the voltages are within the operating range; WARN displays when a voltage is out-of-range. The following ﬁgure shows the diagnostic information for the main board voltages, a subset of the Mainframe diagnostic information. Figure 48: Main Board Voltages diagnostic readouts SPG8000A User Manual...
Page 183: Figure 49: Reference Module Diagnostic Readouts
Phase Detect. Placeholder. Reference Module voltages. These readouts display the voltages of the Reference module. The status for each voltage displays OK when the voltages are within the operating range; the status displays WARN when a voltage is out-of-range. SPG8000A User Manual...
Page 184: Figure 50: Sdi Module Diagnostic Readouts
1 (SDI 2A and SDI 2B connectors). This readout should show Lock (locked). An Unlk (unlocked) reading might indicate a problem with the Option SDI board or with the instrument. SPG8000A User Manual...
Page 185: System Menu Factory Default Settings
Disable Power Supply Fault Disable Lock Error Disable Lock Warning Disable Time Error Disable Time Warning Disable Alarm Time Alarm Delays 00:00:10 GPO Lock Error 00:00:10 GPO Lock Warning 00:00:10 GPO Time Error 00:00:10 GPO Time Warning SPG8000A User Manual...
Page 186 System menu SPG8000A User Manual...
Page 187: Time Menu
Jam Sync. Conﬁgures the parameters for the Jam Sync function. Use the function to immediately synchronize the instrument timecode with the selected time source for each output or to regularly schedule a synchronization. (See page 172, Jam Sync submenu.) SPG8000A User Manual...
Page 188: Time Of Day Submenu
When the SMPTE309 Data mode is set to Use as Input or to Use as Input/Output, the date is set using the VITC or LTC source. When the SMPTE309 Data mode is set to Ignore, the date is set from the internal RTC. (See page 165, SMPTE309 Data.) SPG8000A User Manual...
Page 189 DST offset settings on the instrument. This mode is useful if the incoming time code data is from a different time zone than the outputs you intend to create. SPG8000A User Manual...
Page 190 Instead, the indicator reports the DST offset that would be applied if the slave unit was using its own DST offset conﬁguration (as it would in VITC/LTC “Ignore” or “Use as Input” modes). SPG8000A User Manual...
Page 191 Daylight Savings Time schedule will be cleared. This allows for a new schedule to be set up for any time in the future. (See page 191, Daylight Savings Time submenu.) SPG8000A User Manual...
Page 192: Daylight Savings Time Submenu
-12 to +13 hours. Therefore, when you are using ST309 data as the Time of Day source, it is recommended that the combined programmed offset from time zone and DST be restricted to the range of -12 to +13 hours. SPG8000A User Manual...
Page 193 Recurring End The Recurring End time is the time when the daylight savings time offset will be removed. Enter the information similar to the Recurring Start time described above. SPG8000A User Manual...
Page 194: Leap Second Submenu (Option Gps Only)
Defer to Scheduled Time. Applies the leap second at the deferred time conﬁgured using the Scheduled Time menu item below. Scheduled Time Use this setting to schedule a deferred time to apply the leap second adjustment. Enter the Scheduled Time schedule setting in the form HH:MM:SS. SPG8000A User Manual...
Page 195: Program Time Submenu
NOTE. You can use the System GPI Output submenu to conﬁgure the GPI port connector to output a signal when the Alarm Time setting is reached. (See page 151, GPI Output Alarm Selections.) SPG8000A User Manual...
Page 196: Jam Sync Submenu
NOTE. You can use the Input Trigger setting in the System GPI submenu to conﬁgure pin 4 of the GPI port connector to trigger the instrument to force a Jam Sync. (See page 149, GPI Settings submenu.) SPG8000A User Manual...
Page 197: Time Menu Factory Default Settings
The default Time of Day source depends on whether Option GPS is installed and whether the Reference source is set to GPS. This menu item is only available when Option GPS is installed and when the Reference source is set to GPS Signal. SPG8000A User Manual...
Page 198: Ptp Menu
The Secondary PTP engine is only a master. The primary and secondary PTP engine cannot be on the same domain. The SPG8000A will display an error message if an attempt is made to set them to the same domain.
Page 199: Figure 58: Ptp Primary Slave Conﬁguration
NOTE. The entries in the PTP menu vary depending on modes of the instrument. Master and Slave modes need different settings. Multicast, Unicast and Mixed modes have different settings. Different proﬁles allow different ranges for some parameters. SPG8000A User Manual...
Page 200 This continues down to the Required setting. If the master cannot support the Required setting, the communication will not start. The default for the Required setting is the minimum rate / maximum interval allowed in the proﬁle. SPG8000A User Manual...
Page 201 AMT Address Acceptable Master Table (AMT) is required in Unicast and Mixed without Negotiation modes. Enter the IP address of all masters into the AMT of the slaves. The AMT can support up to eight IP addresses. SPG8000A User Manual...
Page 202: St2059 Proﬁle Menu Selections
This should not be necessary if the network is PTP aware. ST2059 proﬁle menu selections When ST2059 is the selected proﬁle and the SPG8000A is conﬁgured as a PTP master, these additional menu selections appear. These settings only drive the Synchronization Metadata message content and have no effect on the operation of the master.
Page 203 GPS or PTP as the Reference mode, and then use the PTP button menu to reselect all of the parameters. Next, use the SYSTEM button menu to resave the Power-on preset with your preferred settings. SPG8000A User Manual...
Page 204 Internal mode. If the SPG8000A is to be a PTP slave, select PTP mode. If the SPG8000A is to be both a PTP master and slave, select PTP mode and then conﬁgure the secondary master. 3. If Genlock mode is selected as the Reference mode, then also set the time to VITC, LTC, or Internal.
Page 205: Ptp Operational Overview
PTP operational overview PTP introduction Option PTP for the SPG8000A adds two Precision Time Protocol (PTP) engines to the SPG system. The primary PTP engine has the capability to be a master PTP source or lock the SPG to the PTP as a slave. The secondary PTP engine can only be a master.
Page 206 The response contains the t4 time stamp from when the master received the delay request. Once the slave receives the delay response, it has the second pair of timestamps needed to calculate the second delay measurement of the slave to master delay. SPG8000A User Manual...
Page 207 The proﬁle deﬁnes the default and range of each parameter, and deﬁnes with options are required, allowed or prohibited. In the SPG8000A, the proﬁle can be initialized to the default value for a given proﬁle and mode. After setting the reference mode, the user should go to the PTP menu and select the proﬁle.
Page 208 AVB (802.1AS) proﬁle, and domain 127 could be a master on the SMPTE ST2059 proﬁle. Since the SPG8000A has two PTP engines, the instrument can provide PTP mastering on two domains and two proﬁles simultaneously. With multiple SPGs, more domains and proﬁles can coexist on the same network.
Page 209 SMPTE proﬁle system messages. For SMPTE proﬁle systems, a given domain must use one type of message for all Announce, Sync and Follow up messages. Therefore, all masters and slaves on that domain must be conﬁgured for either Multicast or they all must be conﬁgured for Unicast. SPG8000A User Manual...
Page 210 Trafﬁc mismatch on the two paths, message type mismatch, and cable delay variation. The paragraphs below contain hints on how to design the system to minimize the delay asymmetry. Alternatively, the SPG8000A provides a way to manually enter a correction value to cancel the delay error.
Page 211 The PTP system is incapable of removing this effect, so the best way to prevent this is to use high-quality cable with a minimum variation in the physical propagation delay. SPG8000A User Manual...
Page 212: Ptp Menu Factory Default Settings
Sync Interval 0.125s 8Hz Announce Timeout Count Priority 1 Priority 2 Primary Step One Step ST2059 SM Default Frame 29.97 ST2059 SM Drop Frame Enable Flag ST2059 SM CFID Enable Delay Mechanism End to End Secondary Master Conﬁgurations SPG8000A User Manual...
Page 213 ST2059 SM Default Frame ST2059 SM Drop Frame Enable Flag ST2059 SM CFID Enable Delay Mechanism End to End When ST2059 is the selected proﬁle and the SPG8000A is conﬁgured as a PTP master, these additional menu selections appear. SPG8000A User Manual...
Page 214 PTP menu SPG8000A User Manual...
Page 215: Front Panel Menu Operation
Submenu and menu The names of submenus and menu selections on the front panel do not always directly correlate with the names that appear on the SPG8000A Web Interface. selection names The SPG8000A Web interface display reduces the need for some submenus and there is more room for selection names.
Page 216 ﬁrst line shows the current position in the current menu, and the second line shows the current selection (if there is not a submenu). If nothing is on the second line, press the ENTER button to access the corresponding submenu. SPG8000A User Manual...
Page 217: Figure 59: Example Display Readouts
In example 3, the display shows “1/3,” indicating that the currently displayed alert is number one of three reported alerts. In this situation, press the left (◄) or right (►) arrow button to view the other alerts or faults. SPG8000A User Manual...
Page 218: Aes Button Menu
Use the AES button menu to view and conﬁgure the timing offset and voltage of the Word Clock (48 kHz) output. The following ﬁgure shows the top level diagram for the AES button menu. Figure 60: AES button menu diagram SPG8000A User Manual...
Page 219: Figure 61: Aes Audio Channel Submenu Diagram (Option Ag Only)
Figure 62: AES TIMING OFFSET submenu diagram (Option AG only) NOTE. You can reset the timing offset to zero by pressing the left (◄) and right (►) arrow buttons simultaneously. You cannot adjust the timing offset when Free Run is selected as the AUDIO-VIDEO SYNC mode. SPG8000A User Manual...
Page 220: Black Button Menu
BLACK outputs (1–3 or 4–5) for which to set the HD tri-level sync rate. The following ﬁgures shows the top level diagrams for the BLACK button menu. Figure 63: BLACK button menu diagram – part 1 SPG8000A User Manual...
Page 221: Figure 64: Black Button Menu Diagram – Part 2
Figure 64: BLACK button menu diagram – part 2 BLACK TIMING submenu The following menu opens for the selected BLACK output when you press ENTER in the BLACK button menu with TIMING selected. Figure 65: BLACK TIMING submenu diagram SPG8000A User Manual...
Page 222: Figure 66: Black Timecode Submenu Diagram
Front panel menu operation BLACK TIMECODE The following menu opens for the selected BLACK output when you press ENTER in the BLACK button menu with TIMECODE selected. submenu Figure 66: BLACK TIMECODE submenu diagram SPG8000A User Manual...
Page 223: Figure 67: Black Timecode Vitc Submenu Diagram
Front panel menu operation BLACK TIMECODE VITC The following menu opens for the selected VITC signal when you press ENTER in the BLACK TIMECODE submenu with VITC selected. submenu Figure 67: BLACK TIMECODE VITC submenu diagram SPG8000A User Manual...
Page 224: Cmpst Button Menu (Option Bg Only)
Press the CMPST button repeatedly to select the desired composite output: CMPST 1 or CMPST 2. The following ﬁgures show the menu diagrams for the CMPST button. Figure 68: CMPST button menu diagram SPG8000A User Manual...
Page 225: Figure 69: Composite Timing Submenu Diagram
Figure 69: COMPOSITE TIMING submenu diagram NOTE. You can reset the timing offset to zero by pressing the left (◄) or right (►) arrow buttons simultaneously. The horizontal timing can be adjusted only in clock cycle increments. SPG8000A User Manual...
Page 226: Figure 70: Composite Timecode Submenu Diagram
Figure 70: COMPOSITE TIMECODE submenu diagram COMPOSITE TIMECODE The following menu opens for the selected Composite output when you press ENTER in the CMPST TIMECODE submenu with VITC selected. VITC submenu Figure 71: COMPOSITE TIMECODE VITC submenu diagram SPG8000A User Manual...
Page 227: Embed Button Menu (Option Sdi Only)
Press the EMBED button repeatedly to select the embedded audio on the desired SDI outputs. The following ﬁgure shows the menu diagram for the EMBED button. Figure 72: EMBED button menu diagram SPG8000A User Manual...
Page 228: Figure 73: Embedded Audio Group Submenu Diagram
EMBEDDED AUDIO The following menu opens for the selected SDI output and audio group when you press ENTER in the EMBED button menu with EMBEDDED AUDIO Group GROUP submenu selected. Figure 73: EMBEDDED AUDIO GROUP submenu diagram SPG8000A User Manual...
Page 229: Figure 74: Embedded Channel Submenu Diagram
Front panel menu operation EMBEDDED AUDIO The following menu opens for the selected SDI output, audio group and channel when you press ENTER in the EMBEDDED AUDIO submenu with Channel CHANNEL submenu selected. Figure 74: EMBEDDED CHANNEL submenu diagram SPG8000A User Manual...
Page 230: Figure 75: Dolby-E Config Submenu Diagram – Part 1
The DOLBY-E CONFIG submenu is available only when Option DBT is installed. submenu (Option DBT The following menu opens for the selected SDI output when you press ENTER in only) the EMBED button menu with DOLBY-E CONFIG selected. Figure 75: DOLBY-E CONFIG submenu diagram – part 1 SPG8000A User Manual...
Page 231: Figure 76: Dolby-E Config Submenu Diagram – Part 2
Front panel menu operation Figure 76: DOLBY-E CONFIG submenu diagram – part 2 SPG8000A User Manual...
Page 232: Ltc Button Menu
LTC button menu Press the LTC button to view and conﬁgure the LTC inputs and outputs on the GPI/LTC port. The following ﬁgure shows the menu diagram for the LTC button. Figure 77: LTC button menu diagram SPG8000A User Manual...
Page 233: Ref Button Menu
Press the REF button to view the current status of instrument settings such as the signal reference source, the GPS and/or GLONASS time and antenna quality, the signals being output, and information about system faults and alerts. The following ﬁgure shows the menu diagram for the REF button. SPG8000A User Manual...
Page 234: Figure 79: Ref Button Menu Diagram
Front panel menu operation Figure 79: REF button menu diagram SPG8000A User Manual...
Page 235: Figure 80: Genlock Timing Submenu Diagram
Front panel menu operation GENLOCK TIMING The GENLOCK TIMING submenu is available only when the selected reference source is not GPS Signal, PTP or Internal. submenu Figure 80: GENLOCK TIMING submenu diagram SPG8000A User Manual...
Page 236: Sdi Button Menu (Option Sdi Only)
When Option SDI is installed, press the SDI button to view and conﬁgure the signals on the SDI video outputs. The following ﬁgures show the menu diagrams for the SDI button. Figure 81: SDI button menu diagram – part 1 SPG8000A User Manual...
Page 237: Figure 82: Sdi Button Menu Diagram – Part 2
Front panel menu operation Figure 82: SDI button menu diagram – part 2 SPG8000A User Manual...
Page 238: Figure 83: Sdi Test Signal Submenu Diagram
Front panel menu operation SDI TEST SIGNAL The instrument comes with a standard set of test signals already installed. The following ﬁgure shows the SDI TEST SIGNAL submenu. submenu Figure 83: SDI TEST SIGNAL submenu diagram SPG8000A User Manual...
Page 239: Figure 84: Sdi Moving Picture Submenu Diagram
Front panel menu operation SDI MOVING PICTURE The following ﬁgure shows the diagram for the SDI MOVING PICTURE submenu. submenu Figure 84: SDI MOVING PICTURE submenu diagram SPG8000A User Manual...
Page 240: Figure 85: Sdi Overlay Submenu Diagram
Front panel menu operation SDI OVERLAY submenu The following ﬁgure shows the diagram for the SDI OVERLAY submenu. Figure 85: SDI OVERLAY submenu diagram SPG8000A User Manual...
Page 241: Figure 86: Sdi Overlay Logo Submenu
Front panel menu operation SDI OVERLAY LOGO The following ﬁgure shows the diagram for the SDI OVERLAY LOGO submenu. submenu Figure 86: SDI OVERLAY LOGO submenu SPG8000A User Manual...
Page 242: Figure 87: Sdi Overlay Id Text Submenu
Front panel menu operation SDI OVERLAY ID TEXT The following ﬁgure shows the diagram for the SDI OVERLAY ID TEXT submenu. submenu Figure 87: SDI OVERLAY ID TEXT submenu SPG8000A User Manual...
Page 243: Figure 88: Sdi Overlay Circle Submenu
Front panel menu operation SDI OVERLAY CIRCLE The following ﬁgure shows the diagram for the SDI OVERLAY CIRCLE submenu. submenu Figure 88: SDI OVERLAY CIRCLE submenu SPG8000A User Manual...
Page 244: Figure 89: Sdi Overlay Burnt-In Timecode Submenu
Front panel menu operation SDI OVERLAY BURNT-IN The following ﬁgure shows the diagram for the SDI OVERLAY BURNT-IN TIMECODE submenu. TIMECODE submenu Figure 89: SDI OVERLAY BURNT-IN TIMECODE submenu SPG8000A User Manual...
Page 245: Figure 90: Sdi Timing Submenu Diagram
Front panel menu operation SDI TIMING submenu The following ﬁgure shows the diagram for the SDI TIMING submenu. Figure 90: SDI TIMING submenu diagram SPG8000A User Manual...
Page 246: Figure 91: Sdi Timecode Submenu Diagram
Front panel menu operation SDI TIMECODE submenu The following ﬁgure shows the diagram for the SDI TIMECODE submenu. Figure 91: SDI TIMECODE submenu diagram SPG8000A User Manual...
Page 247: Figure 92: Sdi Video Submenu Diagram
Front panel menu operation SDI VIDEO submenu The following ﬁgure shows the diagram for the SDI VIDEO submenu. Figure 92: SDI VIDEO submenu diagram SPG8000A User Manual...
Page 248: Figure 93: Sdi Anc Payload Submenu Diagram – Part 1
Front panel menu operation SDI ANC PAYLOAD The following ﬁgures show the diagrams for the SDI ANC PAYLOAD submenu. submenu Figure 93: SDI ANC PAYLOAD submenu diagram – part 1 SPG8000A User Manual...
Page 249: Figure 94: Sdi Anc Payload Submenu Diagram – Part 2
Front panel menu operation Figure 94: SDI ANC PAYLOAD submenu diagram – part 2 SPG8000A User Manual...
Page 250: Status Button Menu
This menu is for viewing status only and no changes to the instrument settings can be made from this menu. The following ﬁgures show the menu diagram for the STATUS button. SPG8000A User Manual...
Page 251: Figure 95: Status Button Menu Diagram – Part 1
Front panel menu operation Figure 95: STATUS button menu diagram – part 1 SPG8000A User Manual...
Page 252: System Button Menu
You can also use this menu to perform ﬁrmware upgrades, calibrate the oven oscillator, mount or unmount a USB device, save and recall presets, view diagnostic results, and perform a load test on the power supply. The following ﬁgures show the menu diagram for the SYSTEM button. SPG8000A User Manual...
Page 253: Figure 97: System Button Menu Diagram – Part 1
Front panel menu operation Figure 97: SYSTEM button menu diagram – part 1 SPG8000A User Manual...
Page 254: Figure 98: System Button Menu Diagram – Part 2
Front panel menu operation Figure 98: SYSTEM button menu diagram – part 2 SPG8000A User Manual...
Page 255: Figure 99: System Button Menu Diagram – Part 3
Front panel menu operation Figure 99: SYSTEM button menu diagram – part 3 WEB USER INTERFACE. Disables or sets the control limits for the SPG8000A Web User Interface (See page 11, Web user interface.). Use the left (◄) or right (►) arrow button to select between the following options.
Page 256 3015. This value indicates that the receiver supports GPS and GLONASS signals. This receiver was replaced by the 3023 receiver. There are some reported limitations with this receiver. See SPG8000A Release Notes for more information. 3023. This value indicates that the receiver supports GPS and GLONASS signals.
Page 257 GPS and/or GLONASS signal, you can use a frequency reference signal such as NTSC Burst or CW to calibrate the oscillator. In this case, you must remove the instrument from service to calibrate the oscillator. SPG8000A User Manual...
Page 258 Front panel menu operation Settings available only in The following SYSTEM button menu settings are available only using the front panel and are not available on the SPG8000A Web Interface: the front-panel SYSTEM button menu SPG A/V OUTPUT EPOCH SELECTION. Sets which SMPTE Epoch reference will be used for system timing.
Page 259: Figure 100: Preset Submenu
Front panel menu operation PRESET submenu The following ﬁgure shows the diagram for the PRESET submenu. Figure 100: PRESET submenu SPG8000A User Manual...
Page 260: Figure 101: Net Setup Submenu
Front panel menu operation NET SETUP submenu The following ﬁgure shows the diagram for the NETWORK SETUP submenu. Figure 101: NET SETUP submenu SPG8000A User Manual...
Page 261: Figure 102: Ptp Submenu
Front panel menu operation PTP submenu The following ﬁgure shows the diagram for the PTP submenu. Figure 102: PTP submenu SPG8000A User Manual...
Page 262: Figure 103: Snmp Submenu Diagram
Front panel menu operation SNMP submenu The following ﬁgure shows the diagram for the SNMP submenu. Figure 103: SNMP submenu diagram SPG8000A User Manual...
Page 263: Figure 104: Snmp Traps Submenu Diagram – Part 1
Front panel menu operation SNMP TRAPS submenu The following ﬁgures show the diagrams for the SNMP TRAPS submenu. Figure 104: SNMP TRAPS submenu diagram – part 1 SPG8000A User Manual...
Page 264: Figure 105: Snmp Traps Submenu Diagram – Part 2
Front panel menu operation Figure 105: SNMP TRAPS submenu diagram – part 2 SPG8000A User Manual...
Page 265: Figure 106: Gpi Submenu Diagram
Front panel menu operation GPI submenu The following ﬁgure shows the diagram for the GPI submenu. Figure 106: GPI submenu diagram SPG8000A User Manual...
Page 266: Figure 107: Gpi Output <1, 2, Or 3> Submenu Diagram
Front panel menu operation GPI OUTPUT <1, 2, or 3> The following ﬁgure shows the diagram for the selected GPI OUTPUT submenu (1, 2, or 3). submenu Figure 107: GPI OUTPUT <1, 2, or 3> submenu diagram SPG8000A User Manual...
Page 267: Figure 108: Gpi Alarm Delay Submenu Diagram
The following ﬁgure shows the diagram for the GPI ALARM DELAY submenu. submenu Figure 108: GPI ALARM DELAY submenu diagram OPTIONS submenu The following ﬁgure shows the diagram for the OPTIONS submenu. Figure 109: OPTIONS submenu diagram SPG8000A User Manual...
Page 268: Figure 110: Frame Reset Status Submenu Diagram
Front panel menu operation FRAME RESET STATUS The following ﬁgure shows the diagram for the FRAME RESET STATUS submenu. submenu Figure 110: FRAME RESET STATUS submenu diagram SPG8000A User Manual...
Page 269: Figure 111: Event Log Submenu Diagram
Front panel menu operation EVENT LOG submenu The following ﬁgure shows the diagram for the EVENT LOG submenu. Figure 111: EVENT LOG submenu diagram SPG8000A User Manual...
Page 270 Genlock input missing. Indicates if Analog sync reference loop through input was selected and not present. GPS/PTP FOM. Indicates that the Figure of Merit dropped below the user conﬁgured threshold. Alarm time. Logs the time that the user conﬁgured alarm clock was triggered . SPG8000A User Manual...
Page 271 The value indicates the leap second offset received from the GPS or PTP input. Time source change. Indicates the elected time reference has changed. The value logged indicates the selected reference. Blank is Internal, 1 is GPS, 2 is LTC, 3 is VITC, and 4 is PTP. SPG8000A User Manual...
Page 272: Figure 112: Diagnostics Submenu Diagram – Part 1
Front panel menu operation DIAGNOSTICS submenu The following ﬁgure shows the diagram for the DIAGNOSTICS submenu. Figure 112: DIAGNOSTICS submenu diagram – part 1 SPG8000A User Manual...
Page 273: Figure 113: Diagnostics Submenu Diagram – Part 2
Front panel menu operation Figure 113: DIAGNOSTICS submenu diagram – part 2 SPG8000A User Manual...
Page 274: Figure 114: Power Supply Load Test Submenu Diagram
Front panel menu operation POWER SUPPLY LOAD The following ﬁgure shows the diagram for the POWER SUPPLY LOAD TEST submenu. TEST submenu Figure 114: POWER SUPPLY LOAD TEST submenu diagram SPG8000A User Manual...
Page 275: Time Button Menu
Press the TIME button to set instrument time parameters such as the time of day source, the time zone offset, the DST schedule, the leap second schedule, the program time, and the jam sync settings. The following ﬁgure shows the TIME button menu diagram. Figure 115: TIME button menu diagram SPG8000A User Manual...
Page 276: Figure 116: Time Of Day Submenu Diagram
Front panel menu operation TIME OF DAY submenu The following ﬁgure shows the diagram for the TIME OF DAY submenu. Figure 116: TIME OF DAY submenu diagram SPG8000A User Manual...
Page 277: Figure 117: Dst Schedule Submenu Diagram
Front panel menu operation DST SCHEDULE submenu The following ﬁgure shows the diagram for the DST SCHEDULE submenu. Figure 117: DST SCHEDULE submenu diagram SPG8000A User Manual...
Page 278: Figure 118: Program Time Submenu Diagram
Front panel menu operation PROGRAM TIME submenu The following ﬁgure shows the diagram for the PROGRAM TIME submenu. Figure 118: PROGRAM TIME submenu diagram SPG8000A User Manual...
Page 279: Figure 119: Jam Sync Submenu Diagram
Front panel menu operation JAM SYNC submenu The following ﬁgure shows the diagram for the JAM SYNC submenu. Figure 119: JAM SYNC submenu diagram SPG8000A User Manual...
Page 280: Ptp Button Menu
Use this menu to view or change the primary and secondary PTP settings for the instrument. PTP master settings The following ﬁgures show the primary master settings, press the PTP button again to access the identical secondary master settings. SPG8000A User Manual...
Page 281: Figure 121: Ptp Primary Master Menu Diagram – Part 1
Front panel menu operation Figure 121: PTP primary master menu diagram – part 1 SPG8000A User Manual...
Page 282: Figure 122: Ptp Primary Master Menu Diagram – Part 2
Front panel menu operation Figure 122: PTP primary master menu diagram – part 2 SPG8000A User Manual...
Page 283: Figure 123: Ptp Primary Slave Menu Diagram – Part 1
Front panel menu operation PTP slave settings The following ﬁgures show the primary slave settings. Figure 123: PTP primary slave menu diagram – part 1 SPG8000A User Manual...
Page 284: Figure 124: Ptp Primary Slave Menu Diagram – Part 2
Front panel menu operation Figure 124: PTP primary slave menu diagram – part 2 SPG8000A User Manual...
Page 285: Index
Composite Timing submenu, 55 Reference menu, 85 submenu, 195 COMPOSITE TIMING SDI menu, 111 BLACK button menu, 196 submenu, 201 System menu, 161 BLACK TIMECODE Custom picture ﬁles, 123 Time menu, 173 submenu, 198 Figures Of Merit (FOM), 2 SPG8000A User Manual...
Page 286 Preferred supply REF button menu, 209 SDI MOVING PICTURE conﬁguration, 37 SDI ANC PAYLOAD submenu, 215 Preset submenu, 143 submenu, 224 SDI Overlay Burnt-In Timecode PRESET submenu, 235 SDI button menu, 212 submenu, 103 Product documentation, xix SPG8000A User Manual...
Page 287 144 troubleshooting, 34 Kxy, 133 Genlock Timing menu, 84 SYSTEM button menu, 228 Ky, 134 GPI submenu, 149 System menu, 139 Ky^2, 129 factory default settings, 161 Jam Sync submenu, 172 Kyt, 133 LTC menu, 77 SPG8000A User Manual...
Page 288 Index Zone plate signals about, 124 control parameters, 127 dependent parameters, 129 modifying, 126 using, 125 SPG8000A User Manual...

Tektronix SPG8000A User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix SPG8000A

Summary of Contents for Tektronix SPG8000A
