Pulsed RF

Overview

The displays in the Pulsed RF folder (Displays > Folders > Pulsed RF) are:
Pulse Statistics
Pulse Table
Pulse Trace
The Pulse measurements provide deep insight into pulse train behavior.
Pulse Measurements
The analyzer takes the following pulse measurements: Average ON Power, Peak Power, Average
Transmitted Power, Pulse Width, Rise Time, Fall Time, Repetition Interval (Sec), Repetition Rate
(Hz), Duty Factor (%), Duty Factor (Ratio), Ripple, Droop, Pulse-Pulse Phase Difference, Pulse-Pulse
Frequency Difference, RMS Frequency Error, Maximum Frequency Error, RMS Phase Error, Maximum
Phase Error, Frequency Deviation, Phase Deviation, and Time. See
for definitions.

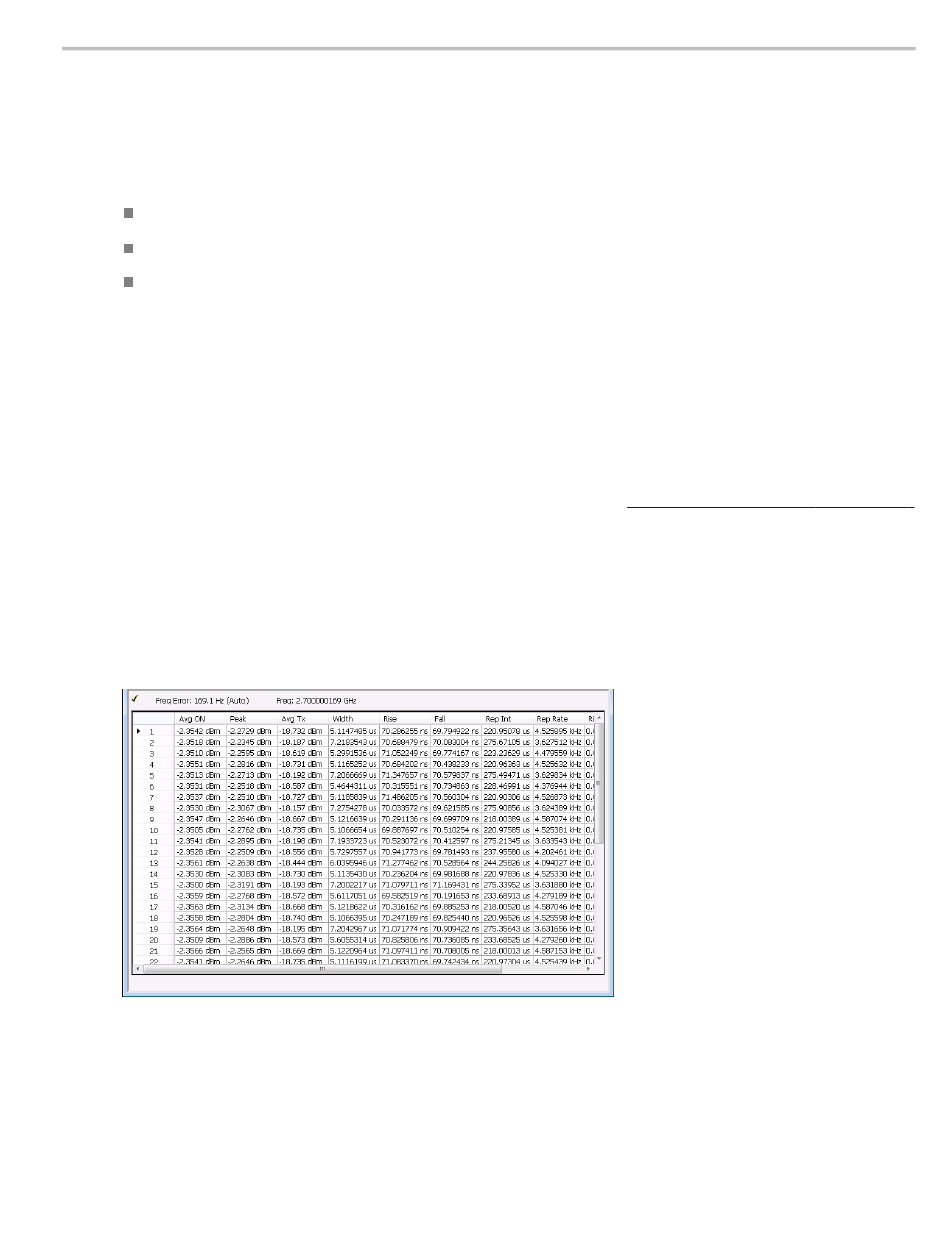

Pulse Table Display

The Pulse Table lists selected measurements in a spreadsheet format, showing the pulse numbers and all
the results for each measurement on all the detected pulses. Pulses are numbered from one.
SPECMON3 & SPECMON6 Printable Help
Available Measurements (see page 33)
