RF Measurements

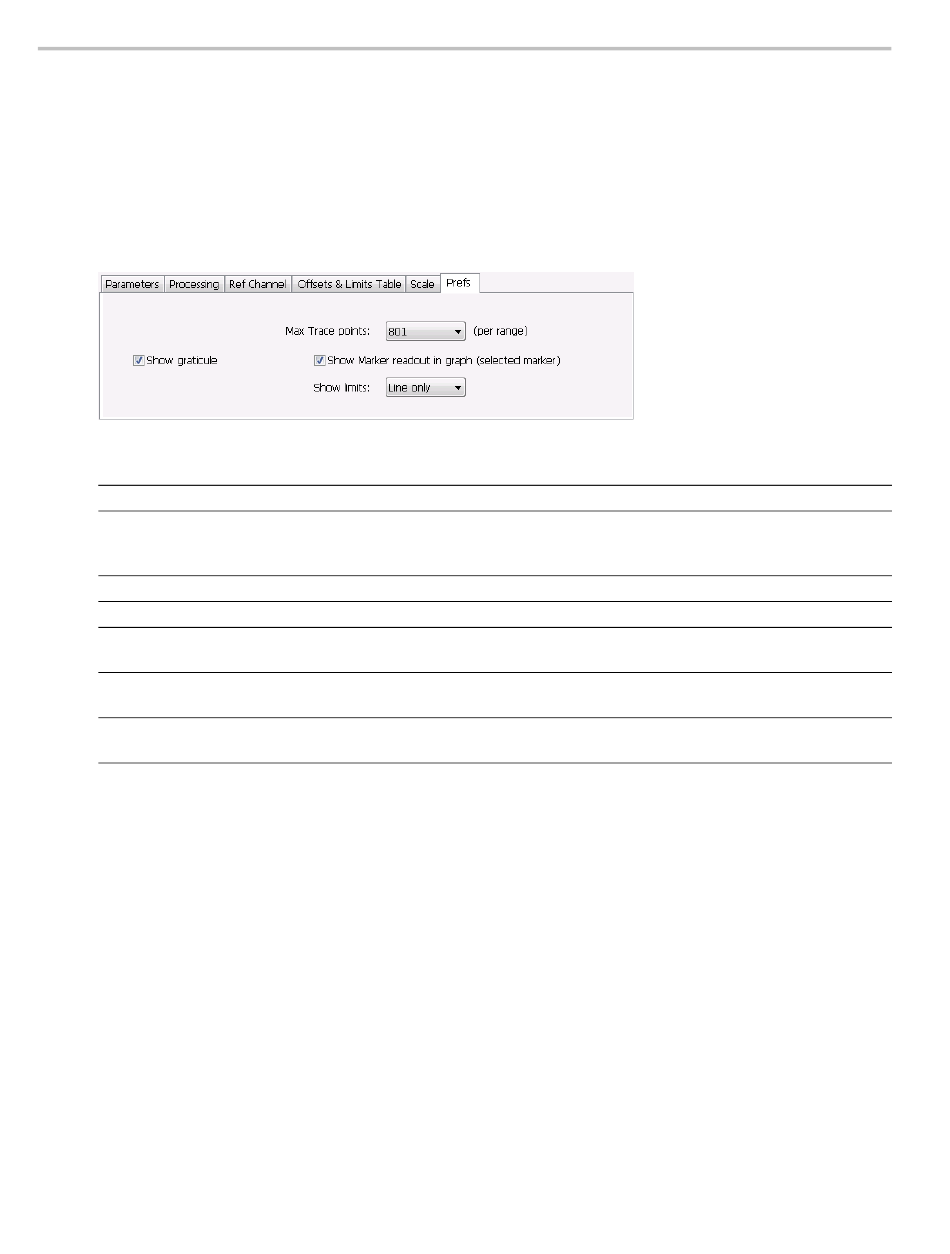

Prefs Tab – SEM
The Prefs tab enables you to change parameters of the measurement display. The parameters available on
the Prefs tab vary depending on the selected display, but include such items as enabling/disabling Marker
Readout, switching the Graticule display on/off, and Marker Noise mode. Some parameters appear with
most displays while others appear with only one display.
Setting
Show graticule
Max Trace points (per range)
Show Marker readout in graph
Show limits
Shaded
Line only
None
xxx

RF Measurements Shared Measurement Settings

The control panel tabs in this section are shared by multiple displays in the RF Measurement folder (Setup
> Displays). With few exceptions, each display maintains separate values for each of the controls on these
tabs. For example, Scale values are independent for each of the displays.
218
Description
Controls the vertical position and scale of the trace display.
When the spectrum analysis produces more than the selected maximum number of
points, the method specified in Detection control is used to decimate the result. This
setting applies to both the Reference channel and offsets.
Adjusts the reference level away from top of the graph.
Controls the appearance of mask limits in the graph.
Shows limits using a shaded area. Green shading is used to identify Absolute limits. Blue
shading is used to indicate Relative limits.
Shows limits using only a line. A green line is used to identify Absolute limits. A blue line
is used to indicate Relative limits.
No lines or shading are used to indicate limits in the graph. Violations of the mask are still
identified by red shading.
SPECMON3 & SPECMON6 Printable Help
Prefs Tab – SEM
