Tektronix SPECMON3 Manual page 105

General Signal Viewing

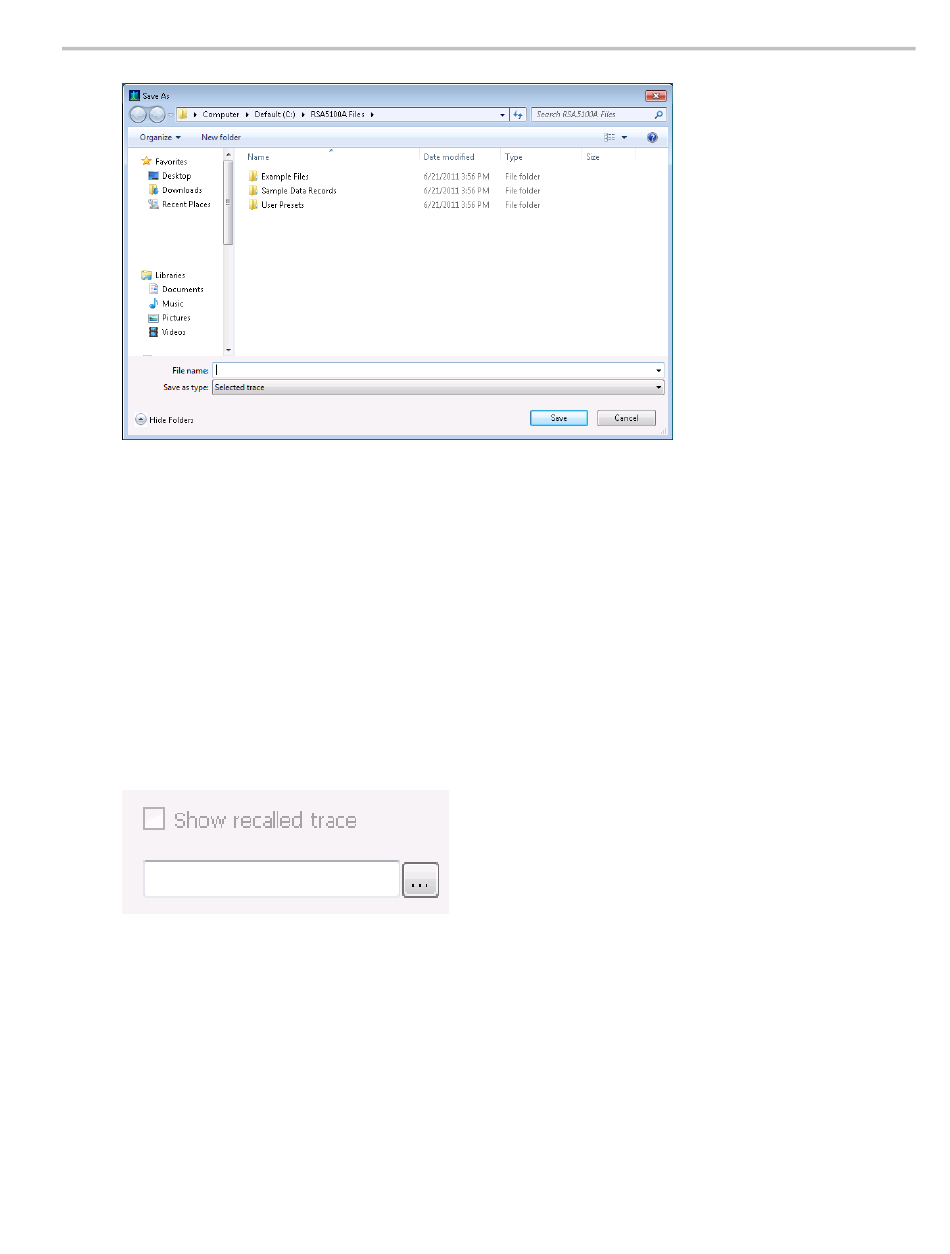

2. Navigate to the desired folder or use the default.
3. Type a name for the saved trace and click Save.
Recalling Traces
You can recall a previously saved trace for analysis or comparison to a live trace.
To select a trace for recall:
1. Select the trace into which the recalled trace will be loaded, from the Trace drop-down list.
2. Check the Show check box.
3. Click the ... button to display the Open dialog box.
4. Navigate to the desired file and click Open.
5. Check the Show Recalled Trace check box.
6. Verify that the trace's Show check box is selected (either on this tab or next to the drop-down list
located at the top-left corner of the graph).
SPECMON3 & SPECMON6 Printable Help
Trace Tab
93
